Passenger Assist Handle: Service and Repair

ASSIST GRIP

REMOVAL
1. Remove the screw cover, and remove the screw inside.

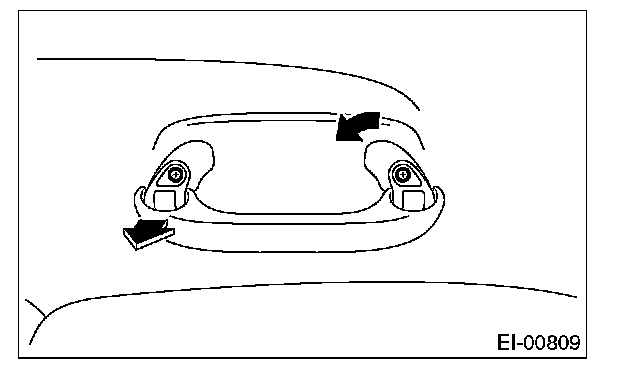

2. Pull the left side of assist grip, and rotate the right side of it counterclockwise to remove.







3. Remove the roof trim.
4. Remove the bolts, and remove the assist grip bracket.







INSTALLATION

CAUTION:

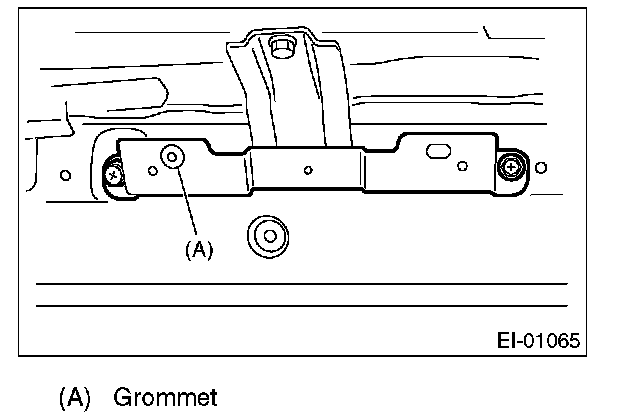

- Be sure to install the grommet to assist grip bracket.
- When the assist grip is installed with no grommet, it ill cause the grip to not return properly.

Install in the reverse order of removal.
