Hood Latch: Service and Repair

Front Hood Lock Assembly

REMOVAL

1. Open the front hood.

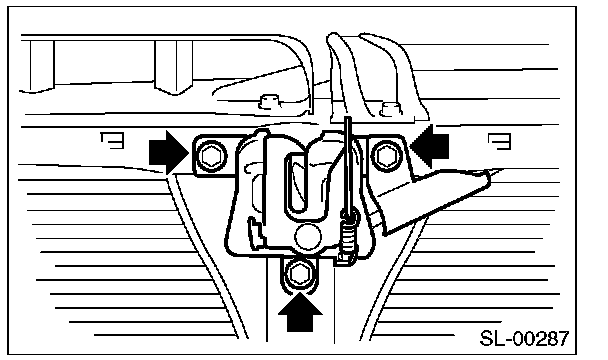

2. Remove the bolts, and then detach the front hood lock assembly.
3. Remove the cable from lock assembly.






INSTALLATION

Install in the reverse order of removal.

FRONT HOOD LOCK AND REMOTE OPENERS

Tightening torque: N.m (kgf.m, ft.lb)
T: 33 (3.36, 24.2)

NOTE: Apply grease to the movable part.
