Woofer

Woofer

REMOVAL

1. SEDAN MODEL

NOTE: Only model with premium audio system

1. Disconnect the ground cable from the battery.
2. Remove the rear shelf trim.

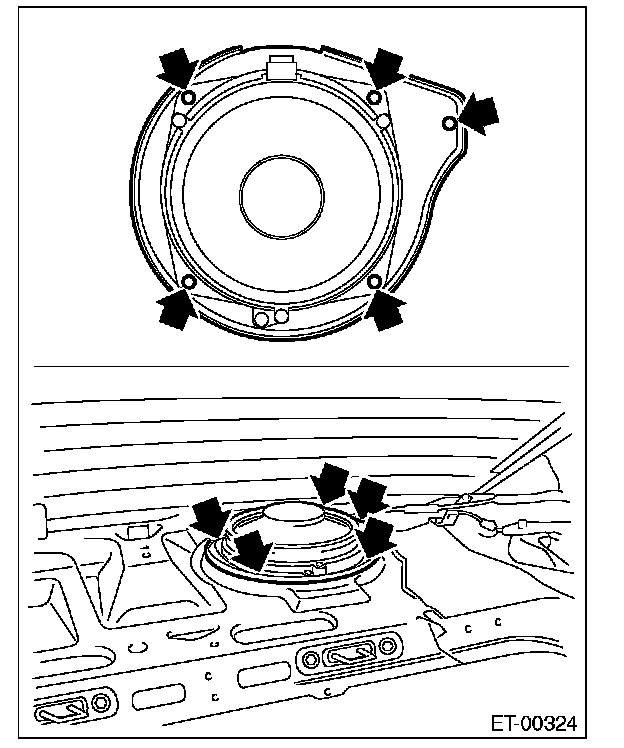

3. Remove the woofer mounting screws.






4. Disconnect the harness connector and detach the woofers.

2. WAGON MODEL

NOTE: Only model with premium audio system

1. Disconnect the ground cable from the battery.

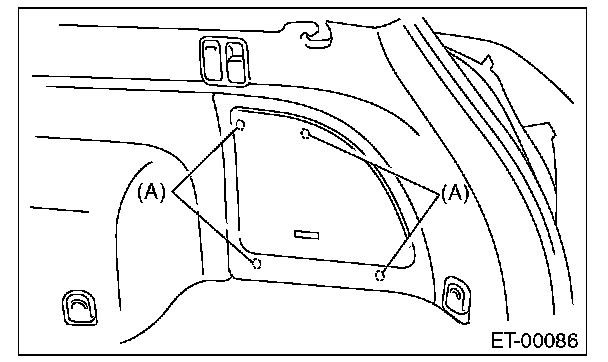

2. Remove the hooks (A) and detach the woofer cover.






3. Remove the quarter lower trim.

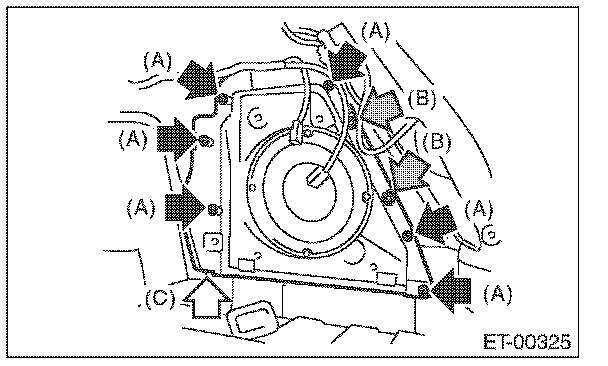

4. Remove the woofer bracket mounting screws (A) and clips (B), then remove the harness connector.
5. Pull up the temporary clip (C), and remove the woofer assembly.






INSTALLATION

Install in the reverse order of removal.
