Remote Control: Service and Repair

Steering Satellite Switch

REMOVAL

WARNING: Before servicing, be sure to read the notes in the "Airbag System" for proper handling of the driver's airbag module.

1. Set the front wheels in straight ahead position.
2. Turn the ignition switch to OFF.
3. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.

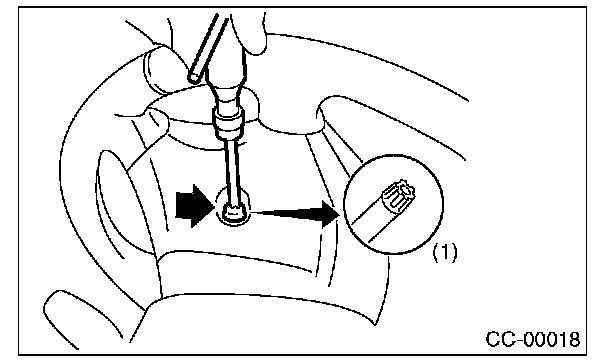

4. Using TORX(R) bit T30 (1), loosen the two TORX(R) bolts which secure the driver's airbag module.






5. Disconnect the airbag module connector on back of the airbag module.
6. Remove the steering wheel.
7. Remove the screws to remove the lower cover from steering wheel.

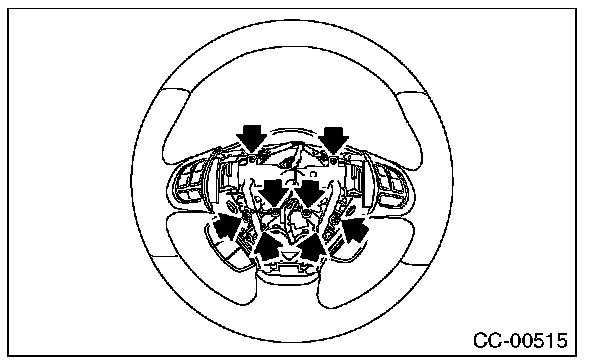

8. Loosen the screws on the backside of the steering wheel and remove the satellite switch.






INSTALLATION

Install in the reverse order of removal.
