Amplifier: Service and Repair

Power Amplifier

REMOVAL

1. Disconnect the ground cable from the battery.
2. Slide passenger's side seat to the full forward position.

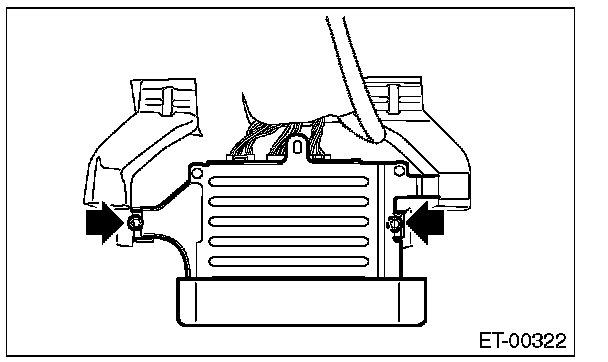

3. Remove the nut.
4. Disconnect the harness connector and remove the power amplifier.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: 4.5 N.m (0.46 kgf.m, 3.32 ft.lb)
