Antitheft Motion Sensor: Description and Operation
Impact SensorOPERATION
1. IMPACT SENSOR SETTING USING SUBARU SELECT MONITOR

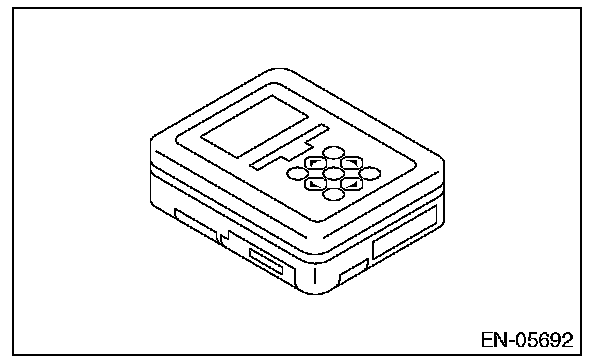

1. Prepare the Subaru Select Monitor kit.
2. Prepare PC with Subaru Select Monitor installed.
3. Connect the USB cable between SDI (Subaru Diagnosis Interface) and USB port on the personal computer (dedicated port for the Subaru Select Monitor).
NOTE: The dedicated port for the Subaru Select Monitor means the USB port which was used to install the Subaru Select Monitor.
4. Connect the diagnosis cable to SDI.

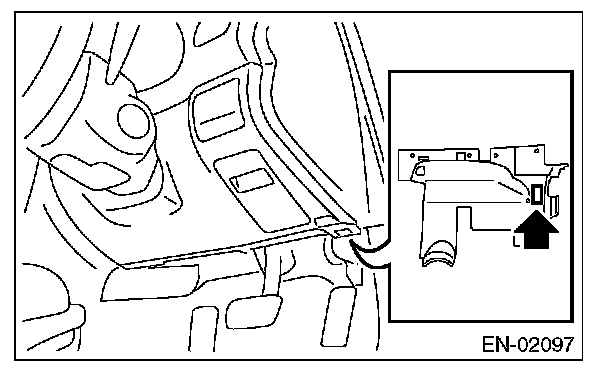

5. Connect SDI to data link connector located in the lower portion of the instrument panel (on the driver's side).
CAUTION: Do not connect scan tools other than the Subaru Select Monitor.
6. Start the PC.
7. Turn the ignition switch to ON (engine OFF) and run the "PC application for Subaru Select Monitor".
8. On the <
9. Select {ECM customizing}.
10. Make a impact monitor setting.
- When installing: ON
- When removing: OFF
11. Make a impact monitor ON/OFF setting.
- When installing: ON
- When removing: OFF
12. Turn the ignition switch to OFF, and then remove the Subaru Select Monitor.
