Antitheft Motion Sensor: Adjustments
ADJUSTMENT1. CHECK IMPACT SENSOR
1. Remove the key from ignition switch.
2. Close all the windows.
3. Close all the doors, trunk lid and rear gate. Leave open the front hood.
4. Press the LOCK button of the keyless transmitter from outside of vehicle.
5. Check that the security indicator light blinks twice within 0.5 seconds in 2 second cycles after 30 seconds.
6. Hit the windshield with your palm continuously and check the security alarm operates. Lift up the front hood approx. 12 cm (4.7 in) or more, and then drop it off to check the operation of security alarm.
7. If NG, adjust the impact sensitivity.
2. IMPACT SENSITIVITY ADJUSTMENT
1. Prepare the Subaru Select Monitor kit.
2. Prepare PC with Subaru Select Monitor installed.

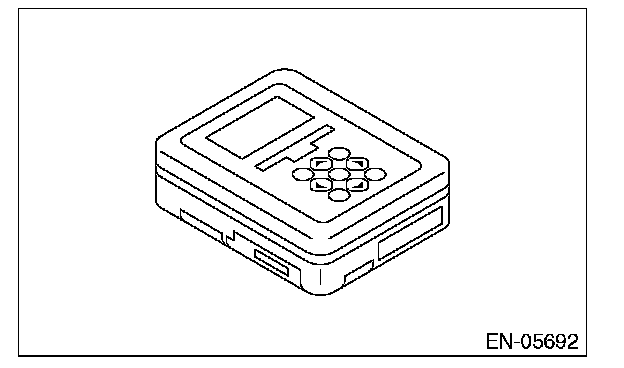

3. Connect the USB cable between SDI (Subaru Diagnosis Interface) and USB port on the personal computer (dedicated port for the Subaru Select Monitor.)
NOTE: The dedicated port for the Subaru Select Monitor means the USB port which was used to install the Subaru Select Monitor.
4. Connect the diagnosis cable to SDI.

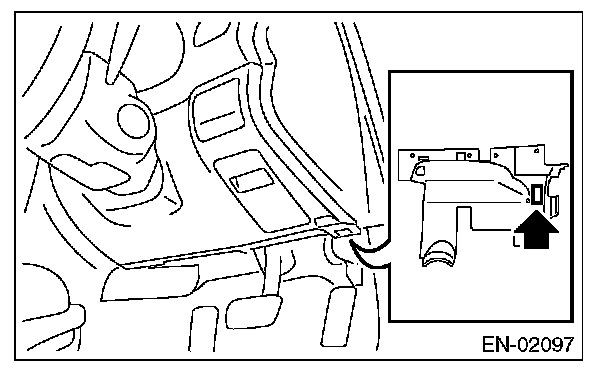

5. Connect SDI to data link connector located in the lower portion of the instrument panel (on the driver's side).
CAUTION: Do not connect scan tools other than the Subaru Select Monitor.
6. Start the PC.
7. Turn the ignition switch to ON (engine OFF) and run the "PC application for Subaru Select Monitor".
8. On the <
9. Make a {Sensitivity Adjustment Mode}.
- Sensitivity can be adjusted in 11 levels (0 to 10).
- Initial setting is 5.
- Smaller number means more sensitive.
- Larger number means less sensitive.
10. Turn the ignition switch to OFF, and then remove the Subaru Select Monitor.
NOTE:
- Set the sensor so that it is not triggered by normal vibrations (someone reclining on the door, hit by a ball, etc.).
- Set the sensor to operate the alarm when the windshield glass or door is hit hard repeatedly, etc, where it can be assumed that there is an attempt to damage the car by a burglar, etc.
- Even if there is no attempt to steal or burglarize the car, if the vehicle is subject to an equivalent shock or vibration (from road construction, etc.), the alarm will sound. Discuss with the customer their parking environment to make sensitivity settings accordingly.
