P1706

DTC P1706 AT VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION (REAR WHEEL)
DTC DETECTING CONDITION: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: 3
- Shifting quality malfunction
- Tight corner braking phenomenon occurs.

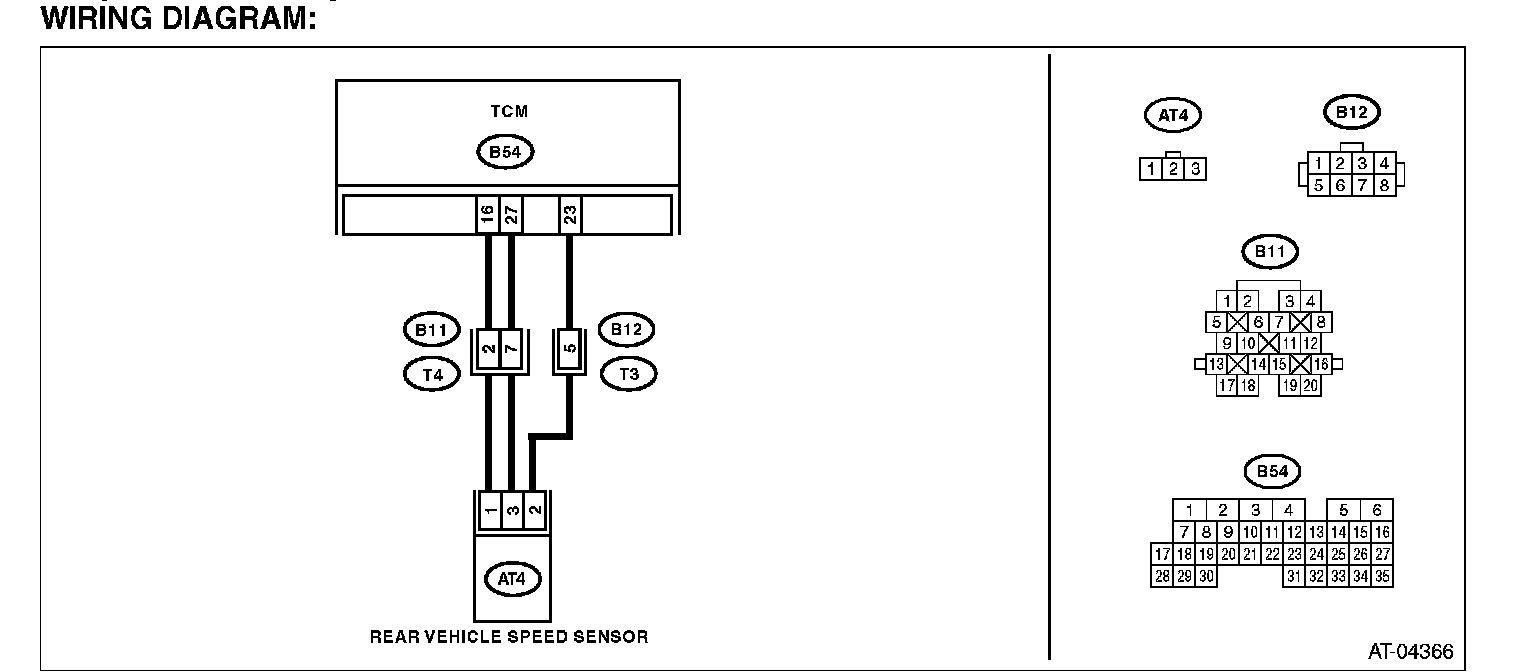

WIRING DIAGRAM:

Step 1-Step 3:

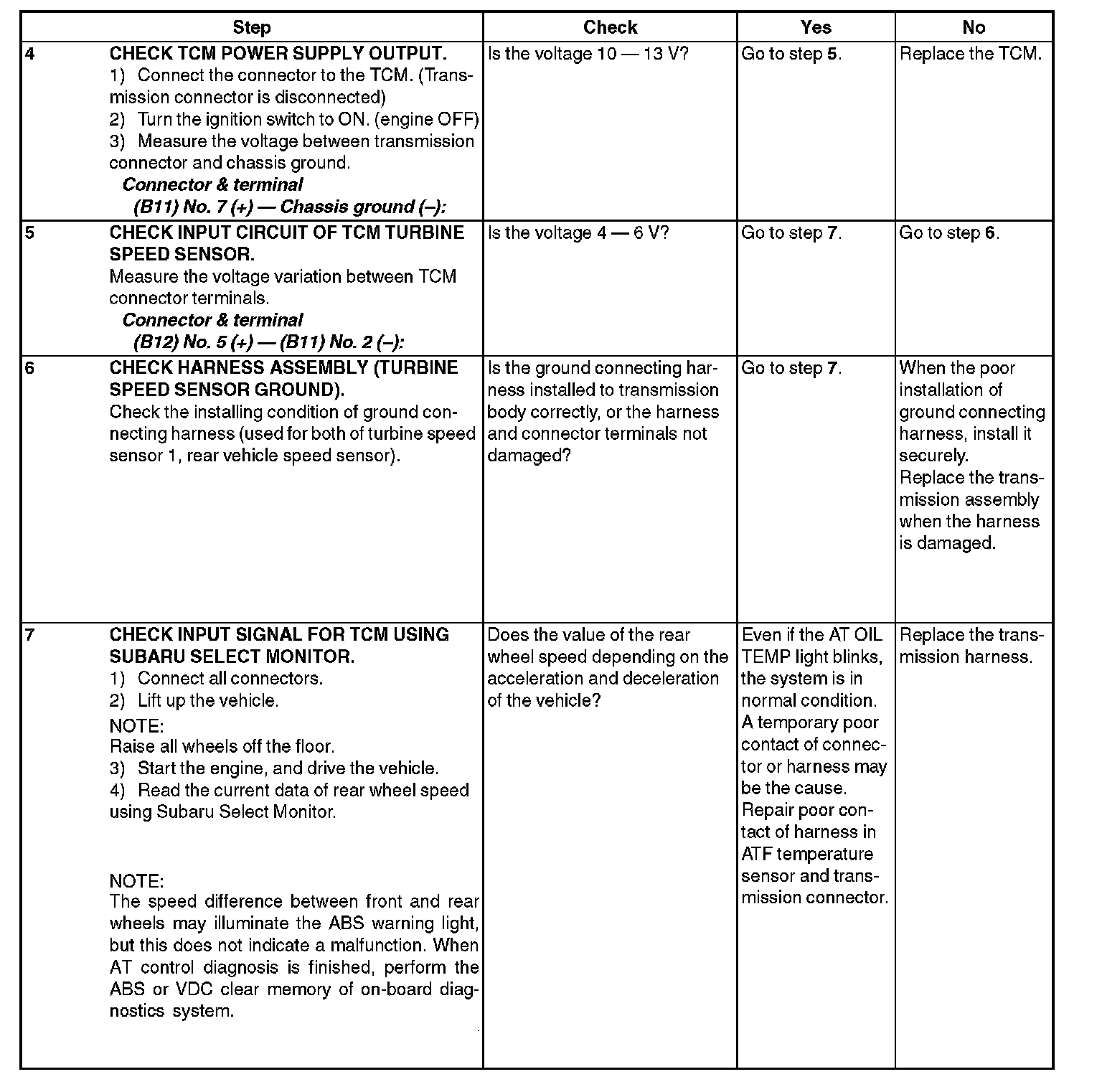

Step 4-Step 7:
