P1578
P1578
DTC P1578 METER FAILURE
DTC DETECTING CONDITION:
Reference code incompatibility between combination meter and body integrated unit

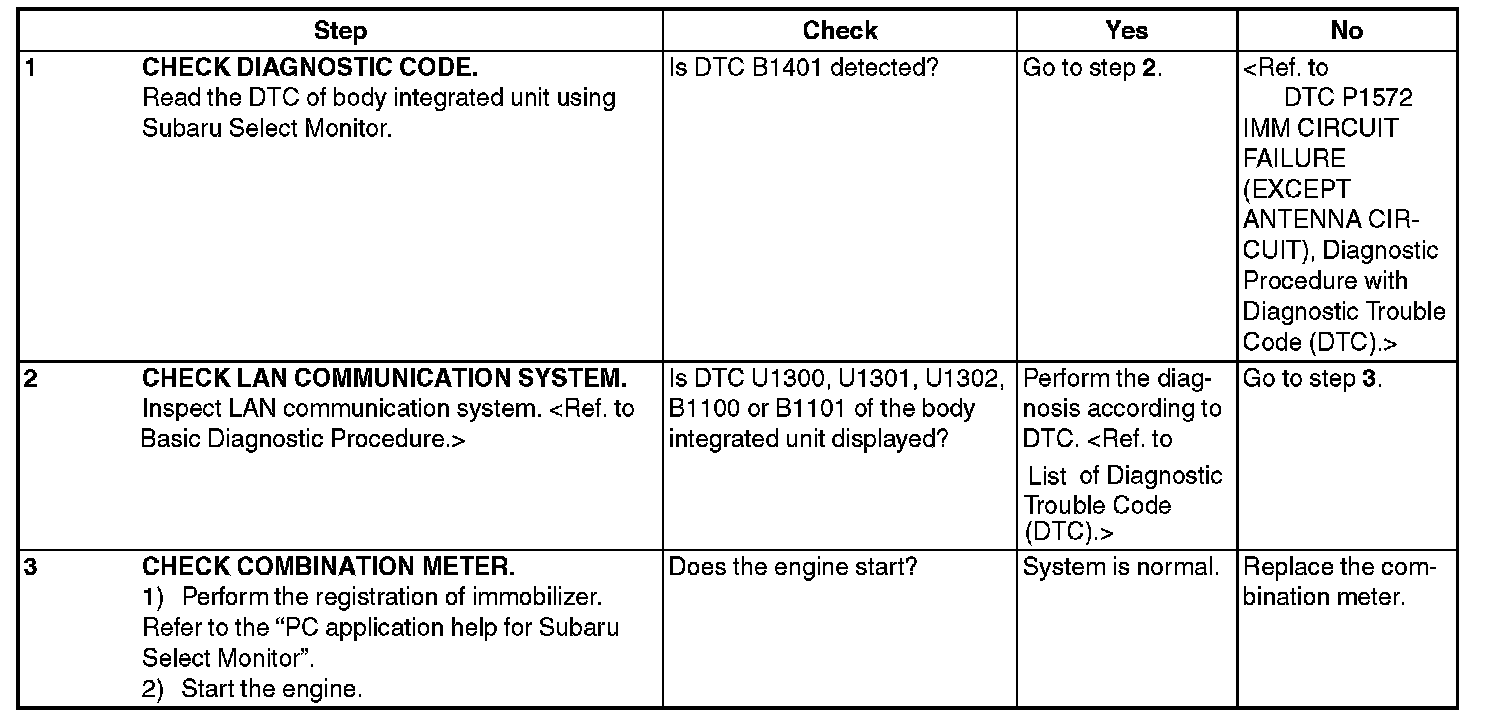

Step 1-3:
