P1572

DTC P1572 IMM CIRCUIT FAILURE (EXCEPT ANTENNA CIRCUIT)

DTC DETECTING CONDITION:
Communication failure between body integrated unit and ECM

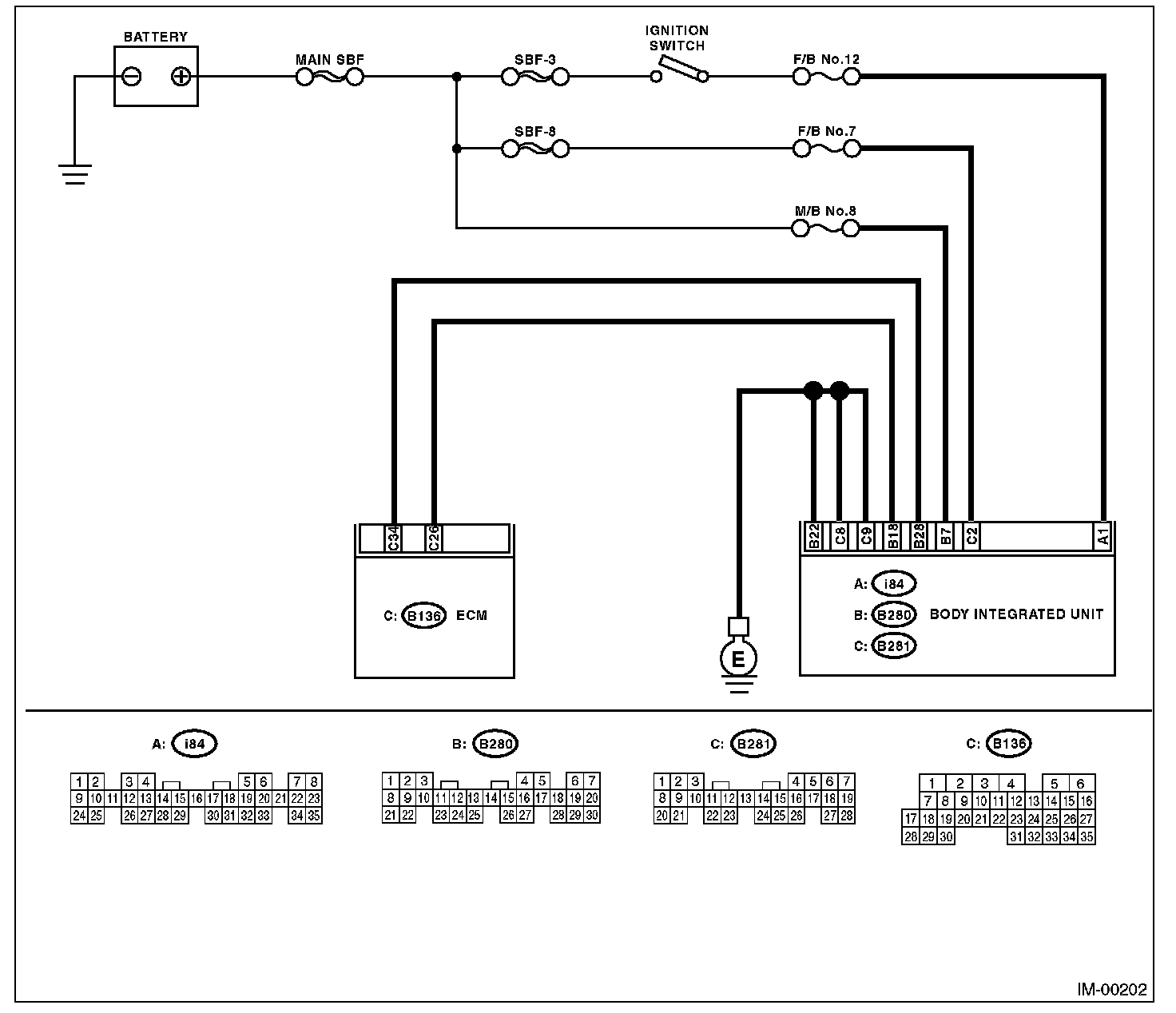

WIRING DIAGRAM

Wiring Diagram:






Step 1-7:

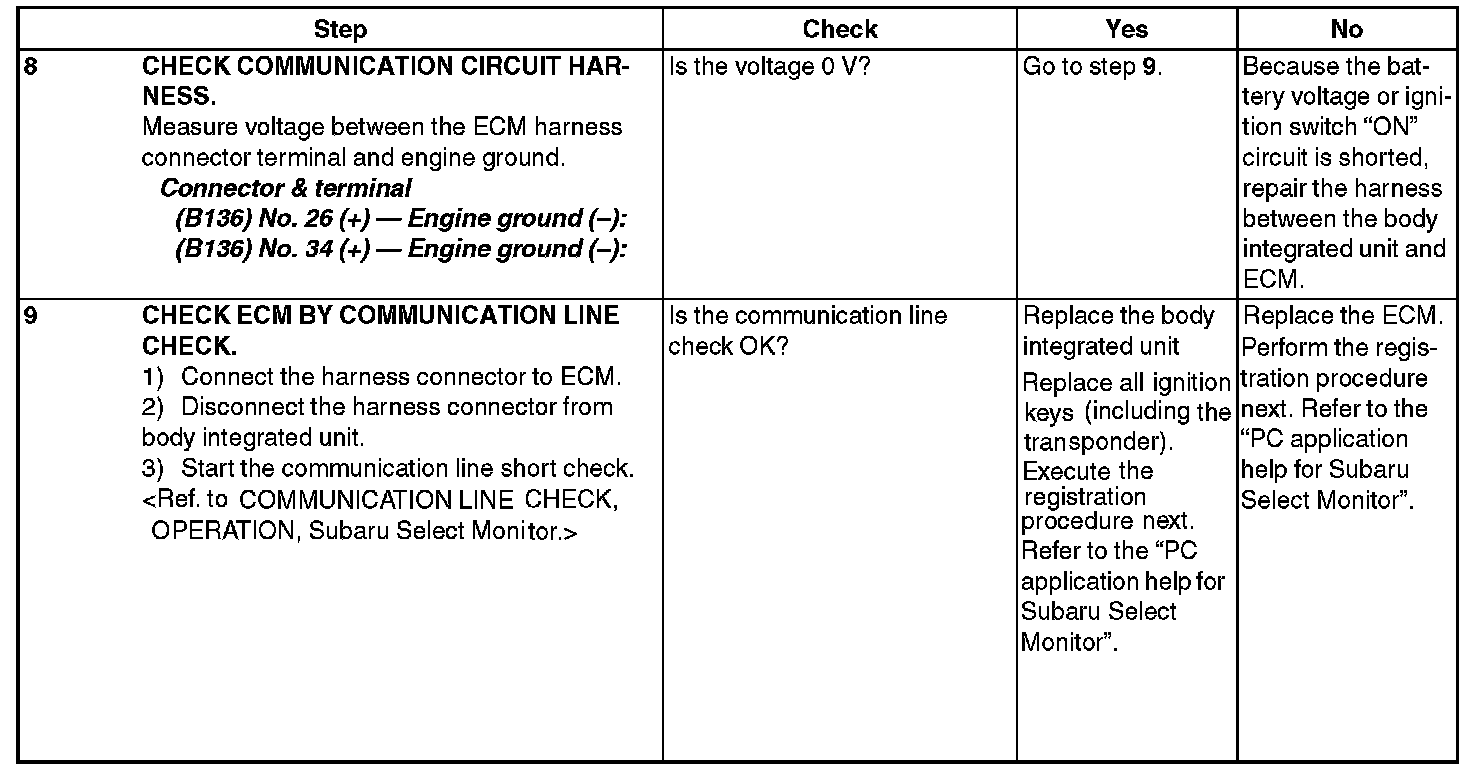

Step 8-9:
