P0958
P0958
DTC P0958 BACKUP LIGHT RELAY CIRCUIT HIGH
DTC DETECTING CONDITION: Output circuit of the back-up light relay is open or shorted
TROUBLE SYMPTOM: Back-up light does not illuminate in "R" range.

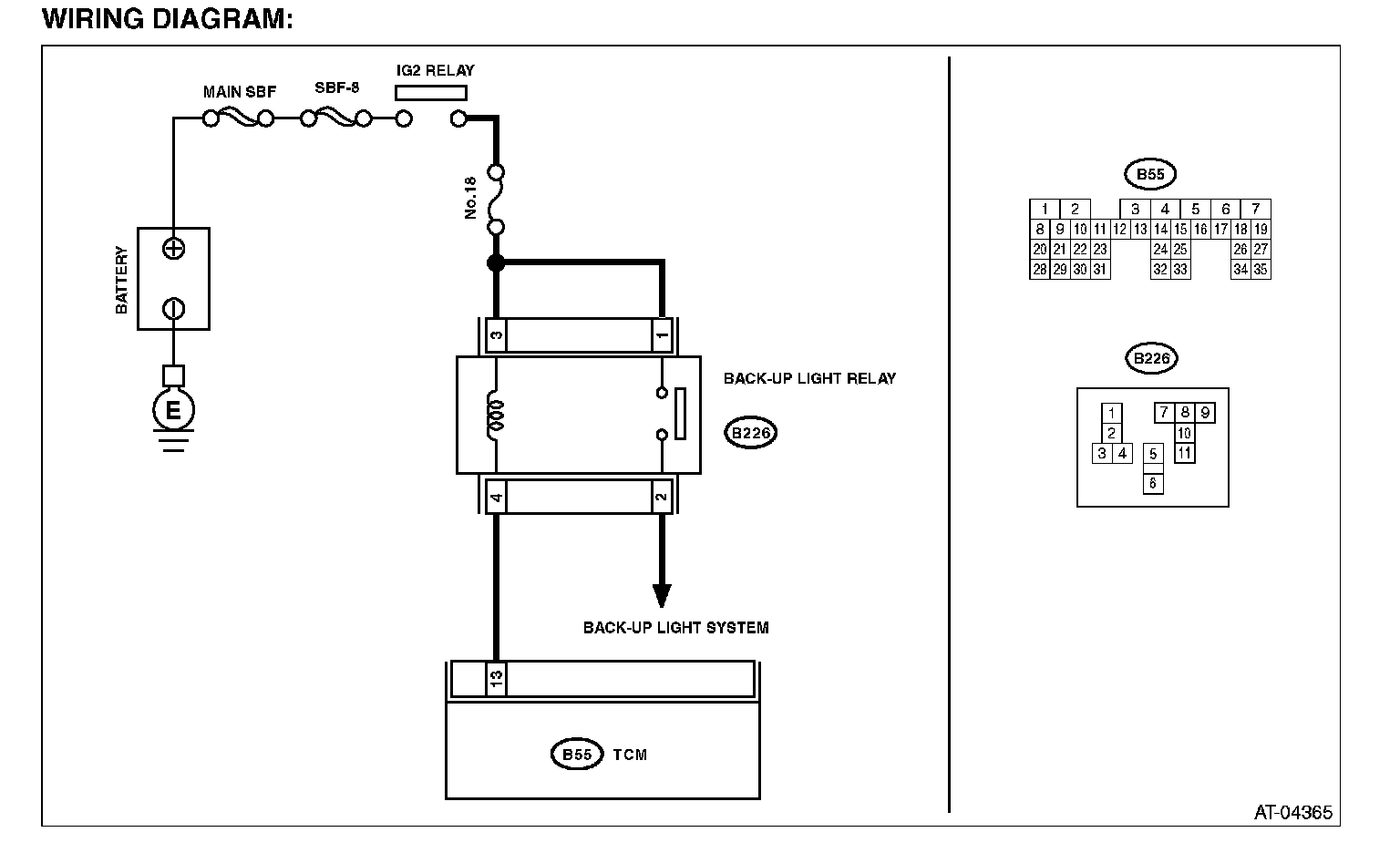

WIRING DIAGRAM:

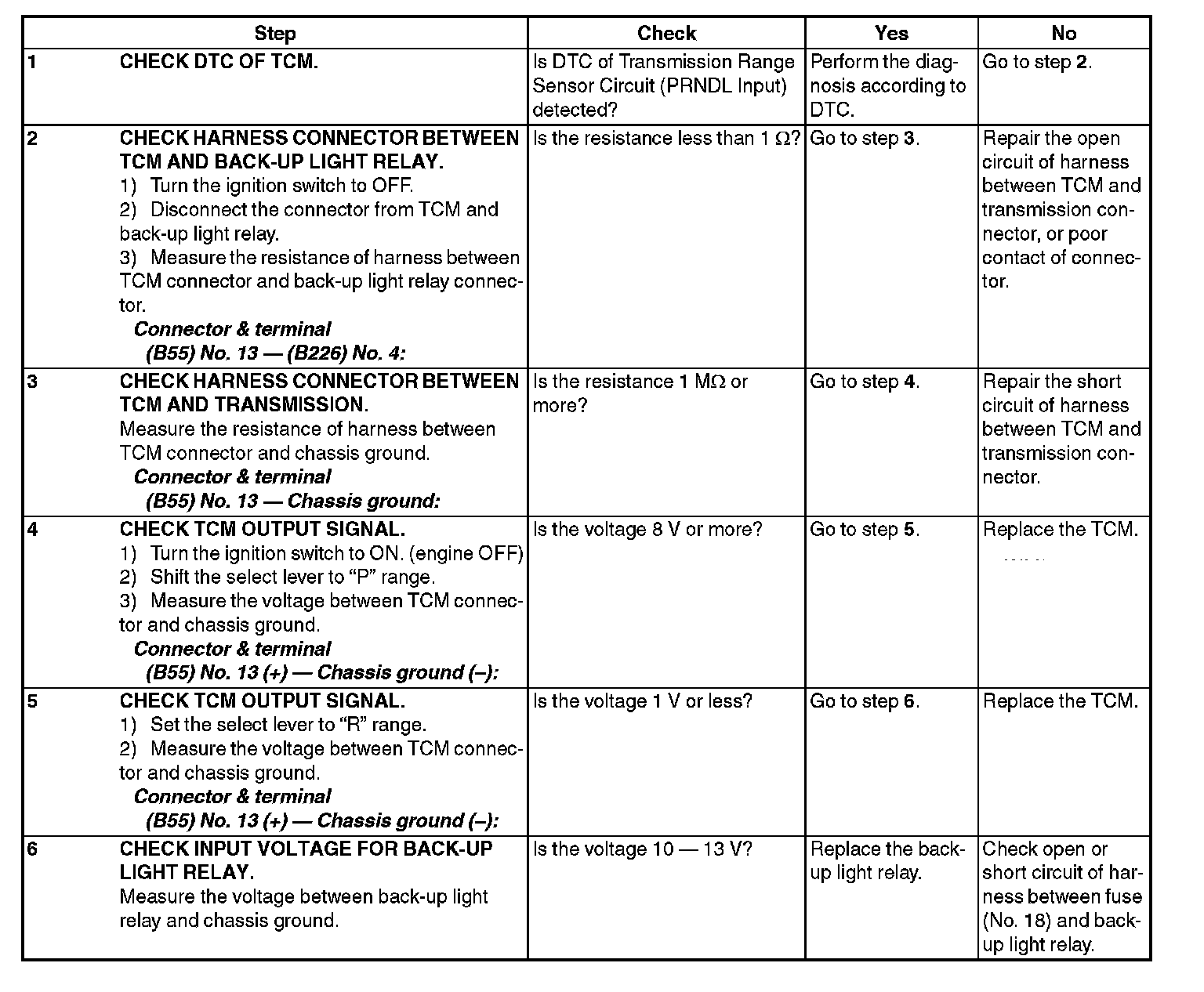

Step 1-Step 6:
