P0763
DTC P0763 SHIFT SOLENOID "C" ELECTRICALDTC DETECTING CONDITION: Output signal circuit of high & low reverse clutch linear solenoid is open or shorted.
TROUBLE SYMPTOM: Locked to 1st gear.

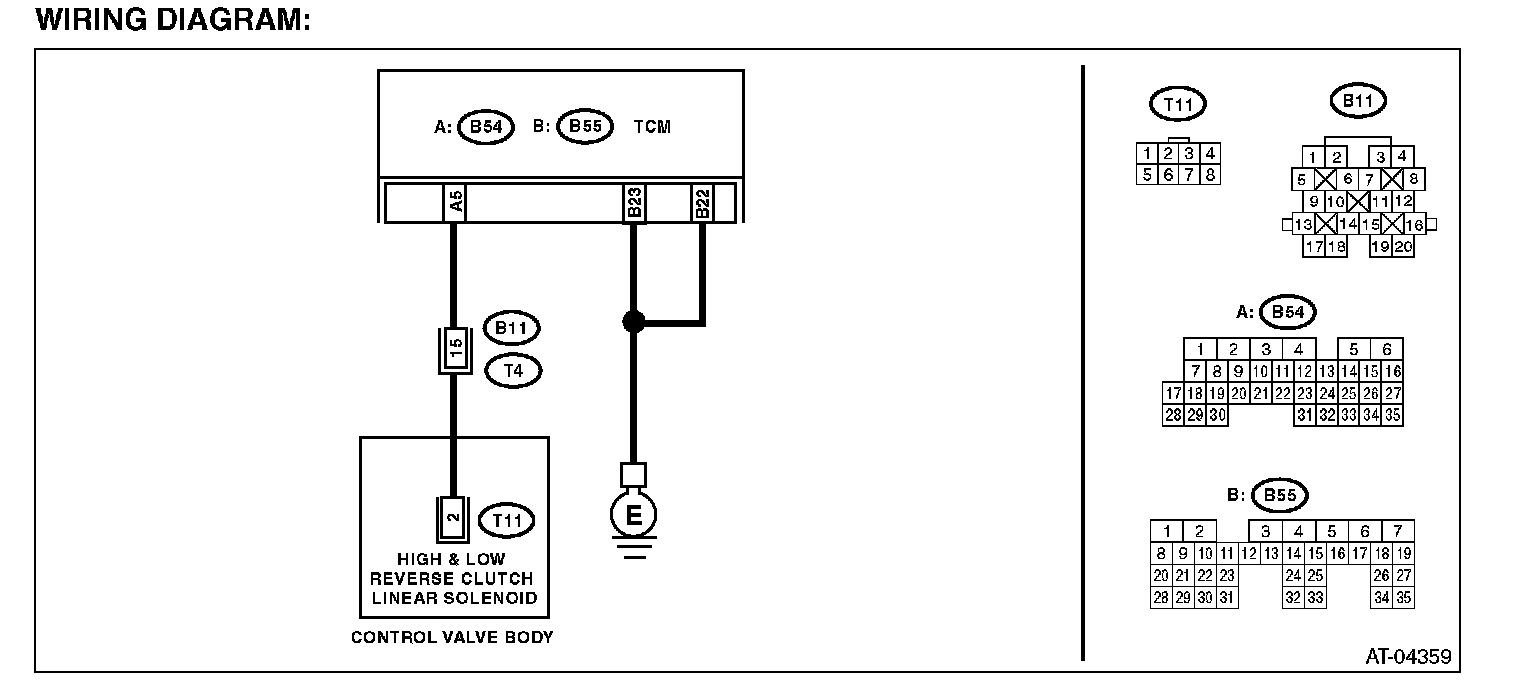

WIRING DIAGRAM:

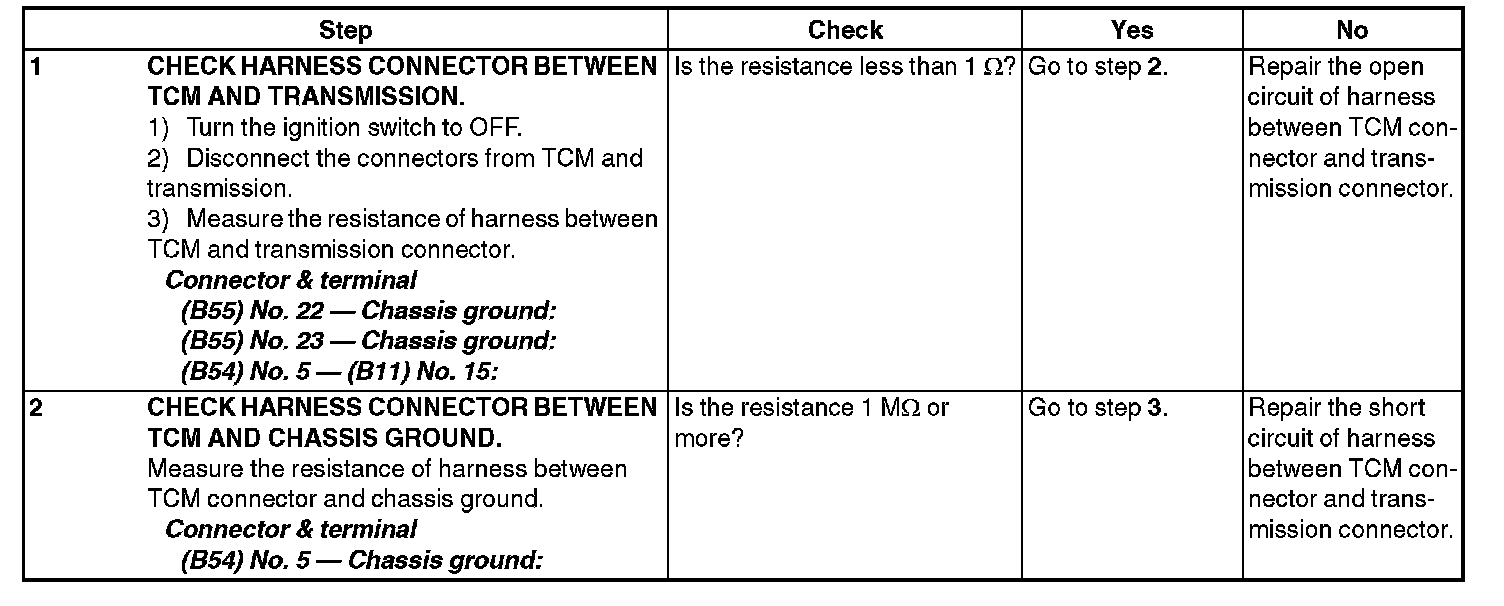

Step 1-Step 2:

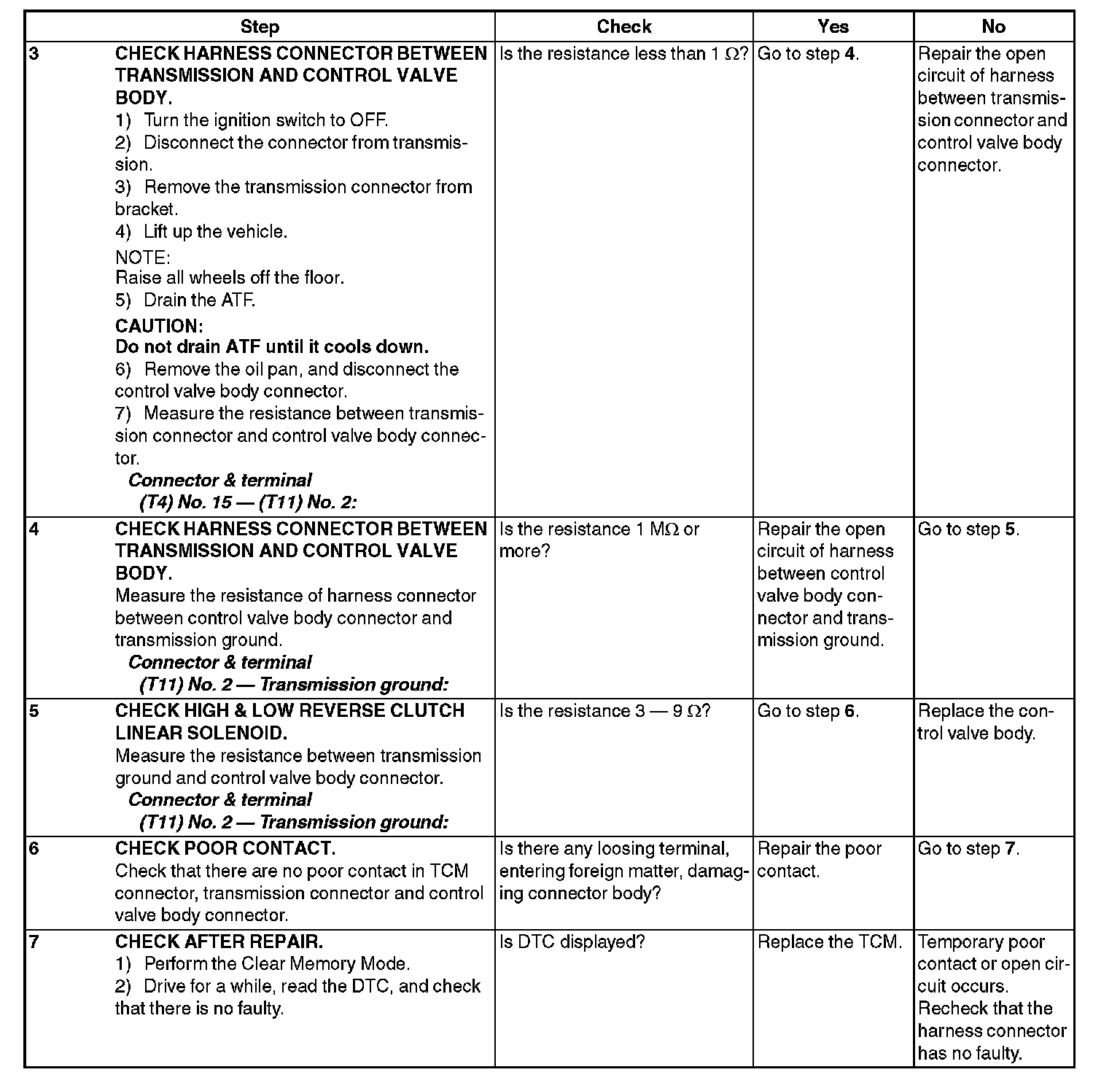

Step 3-Step 7:
DTC DETECTING CONDITION: Output signal circuit of high & low reverse clutch linear solenoid is open or shorted.
TROUBLE SYMPTOM: Locked to 1st gear.
WIRING DIAGRAM:
