P0748

DTC P0748 PRESSURE CONTROL SOLENOID "A" ELECTRICAL
DTC DETECTING CONDITION: Output signal circuit of line pressure linear solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock

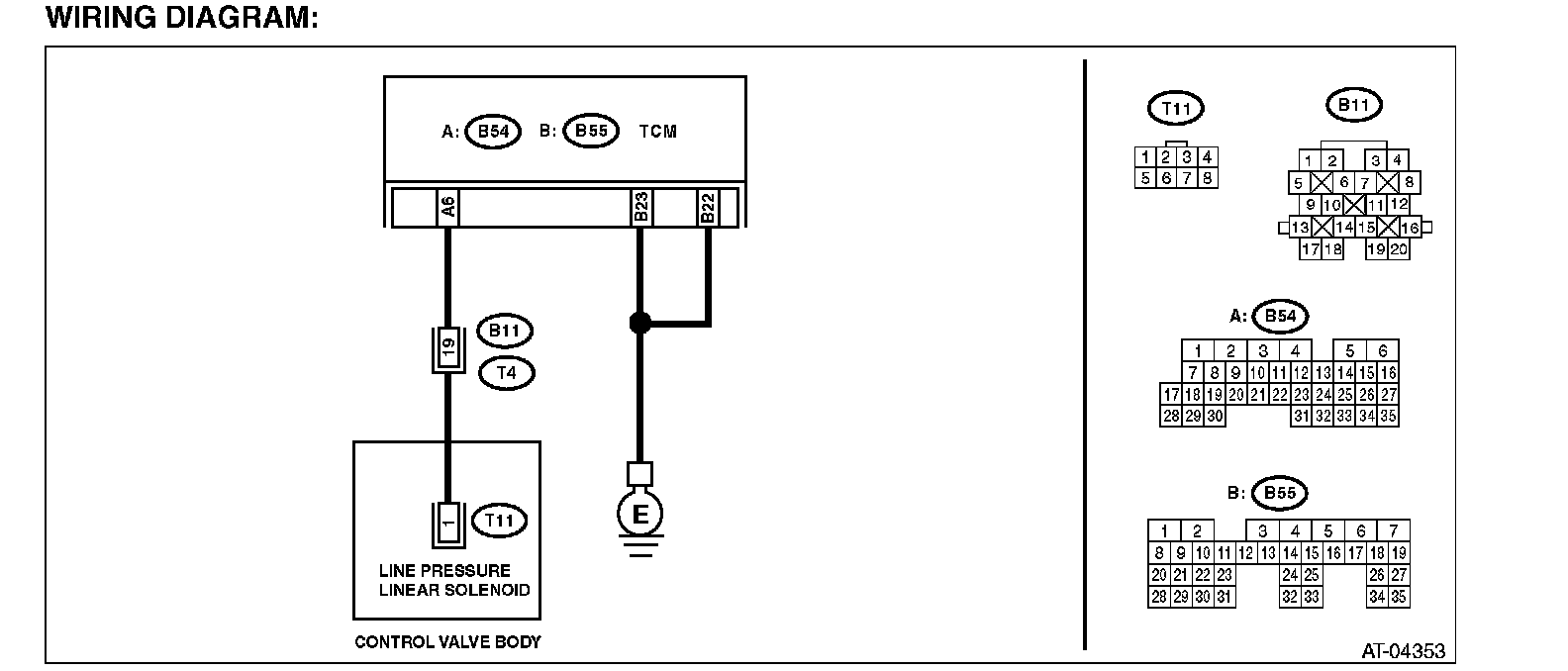

WIRING DIAGRAM:

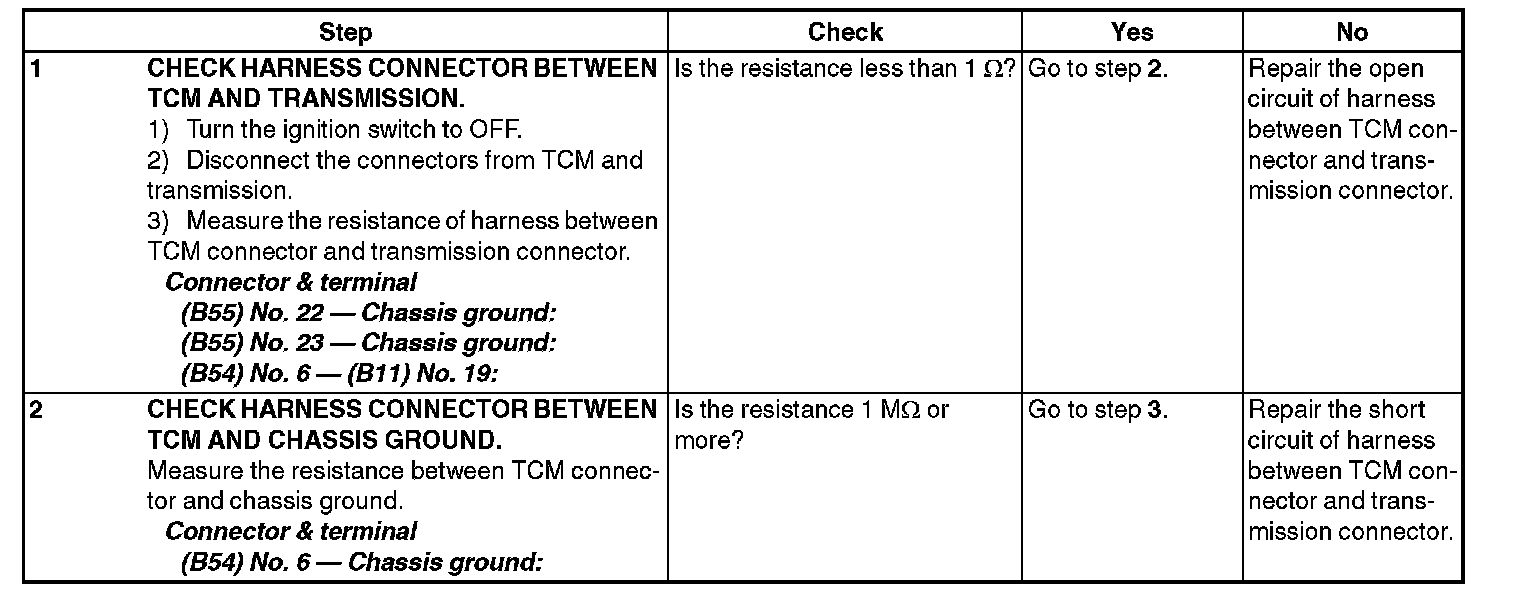

Step 1-Step 2:

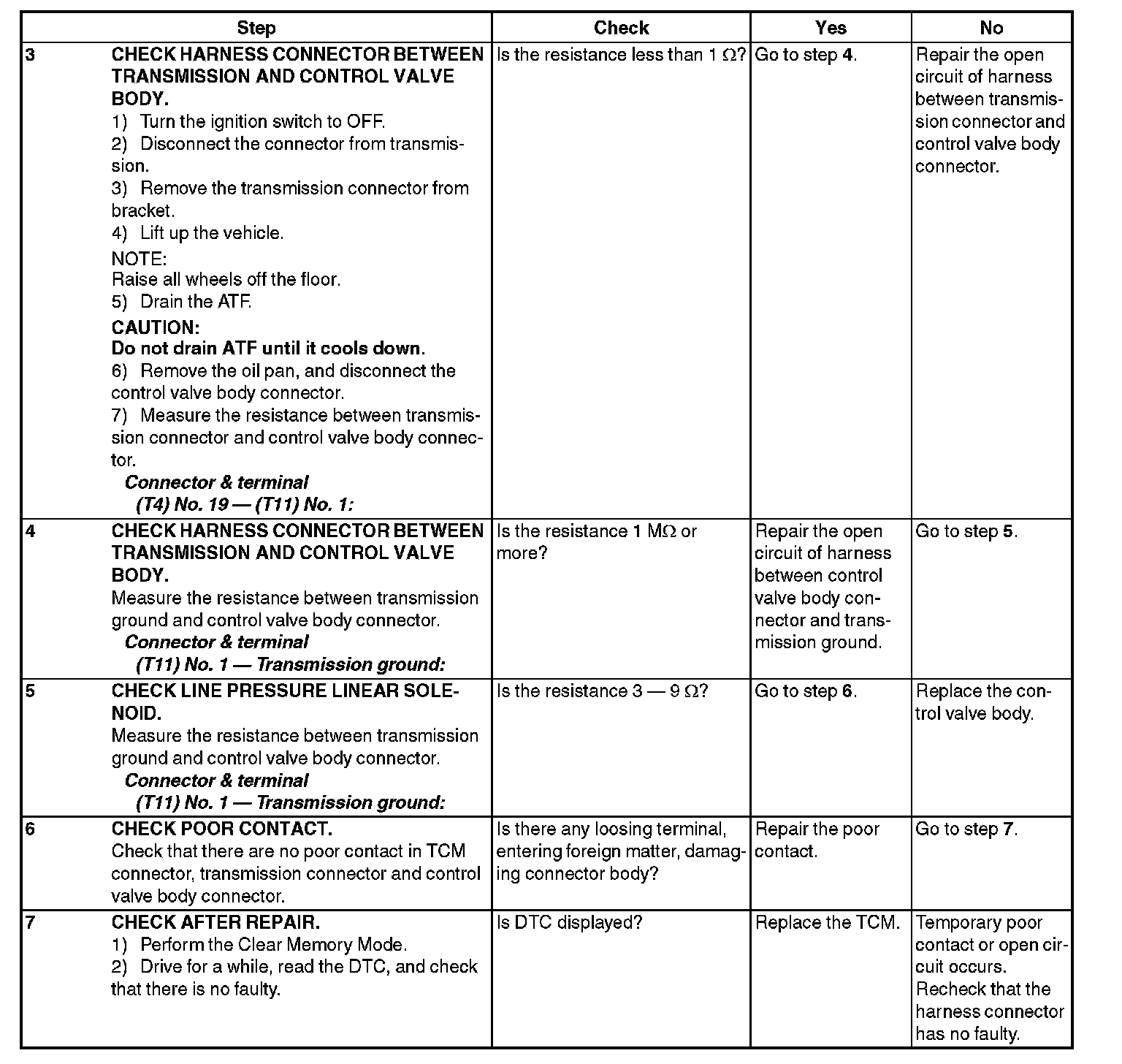

Step 3-Step 7:
