P0340

DTC P0340 CAMSHAFT POSITION SENSOR "A" CIRCUIT (BANK 1 OR SINGLE SENSOR)

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P0340

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode. Preparation For the Inspection Mode

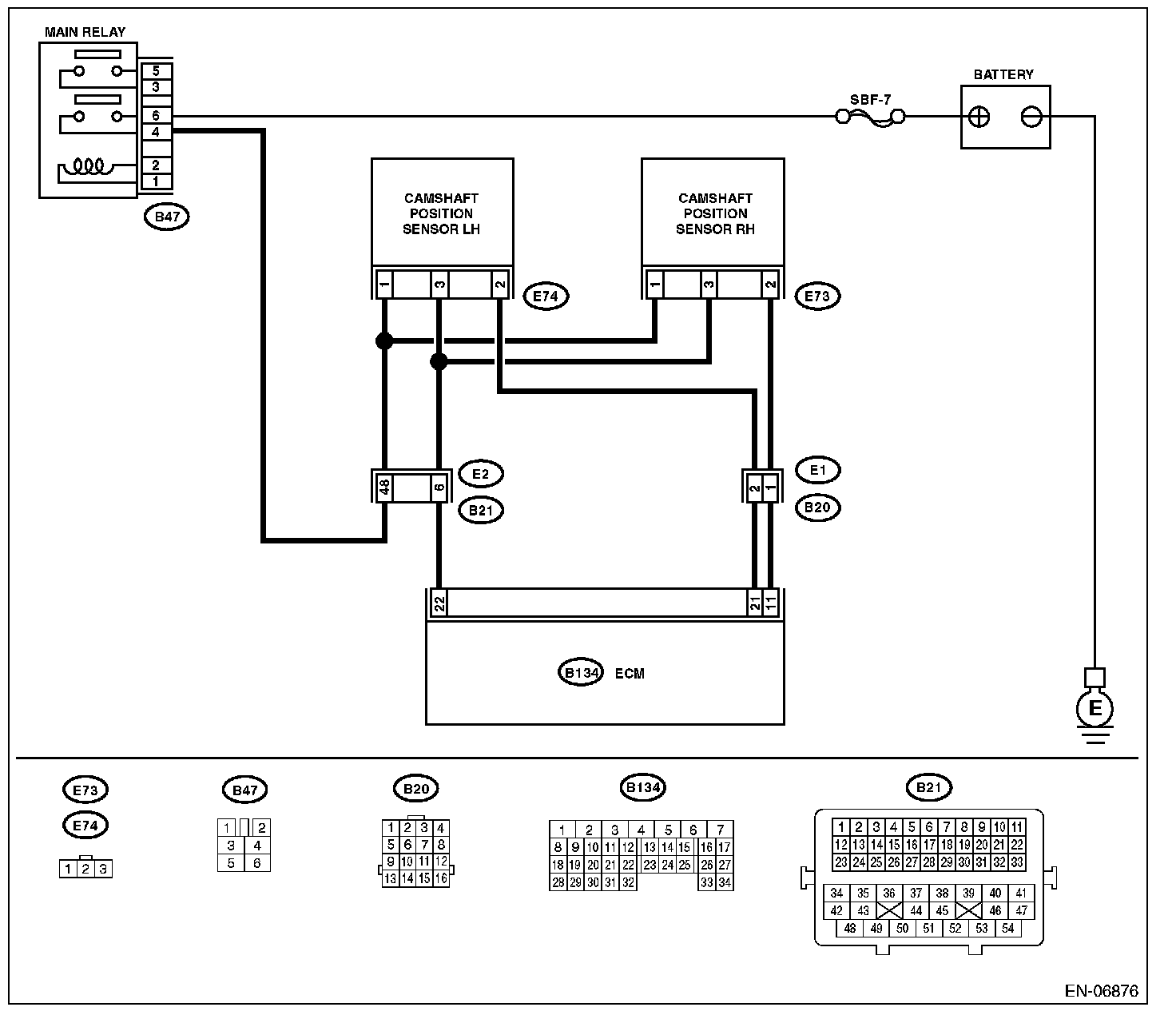

WIRING DIAGRAM:

Wiring Diagram:

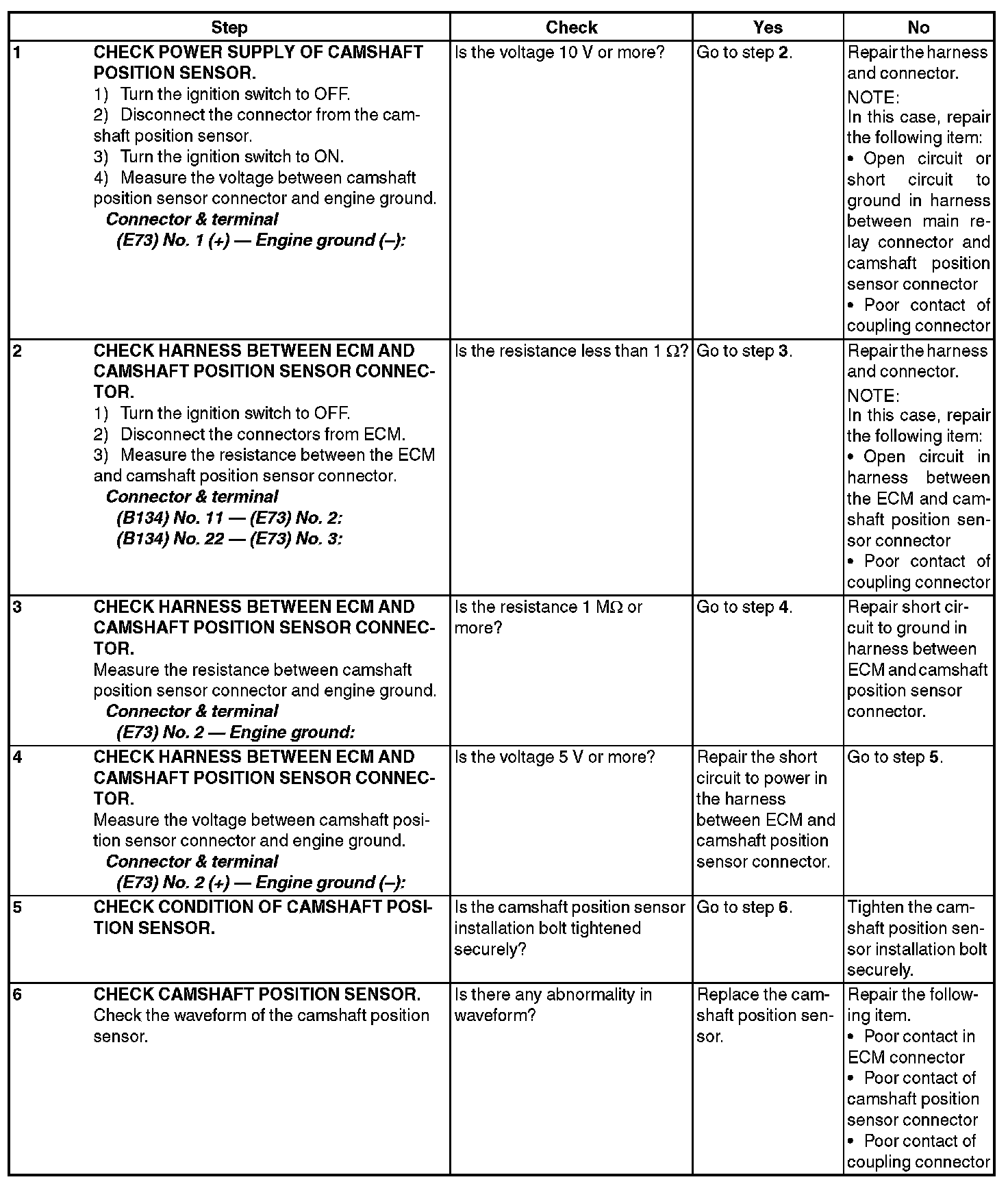

Step 1-6:
