P0132
DTC P0132 02 SENSOR CIRCUIT HIGH VOLTAGE (BANK 1 SENSOR 1)DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P0132
CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode. Preparation For the Inspection Mode

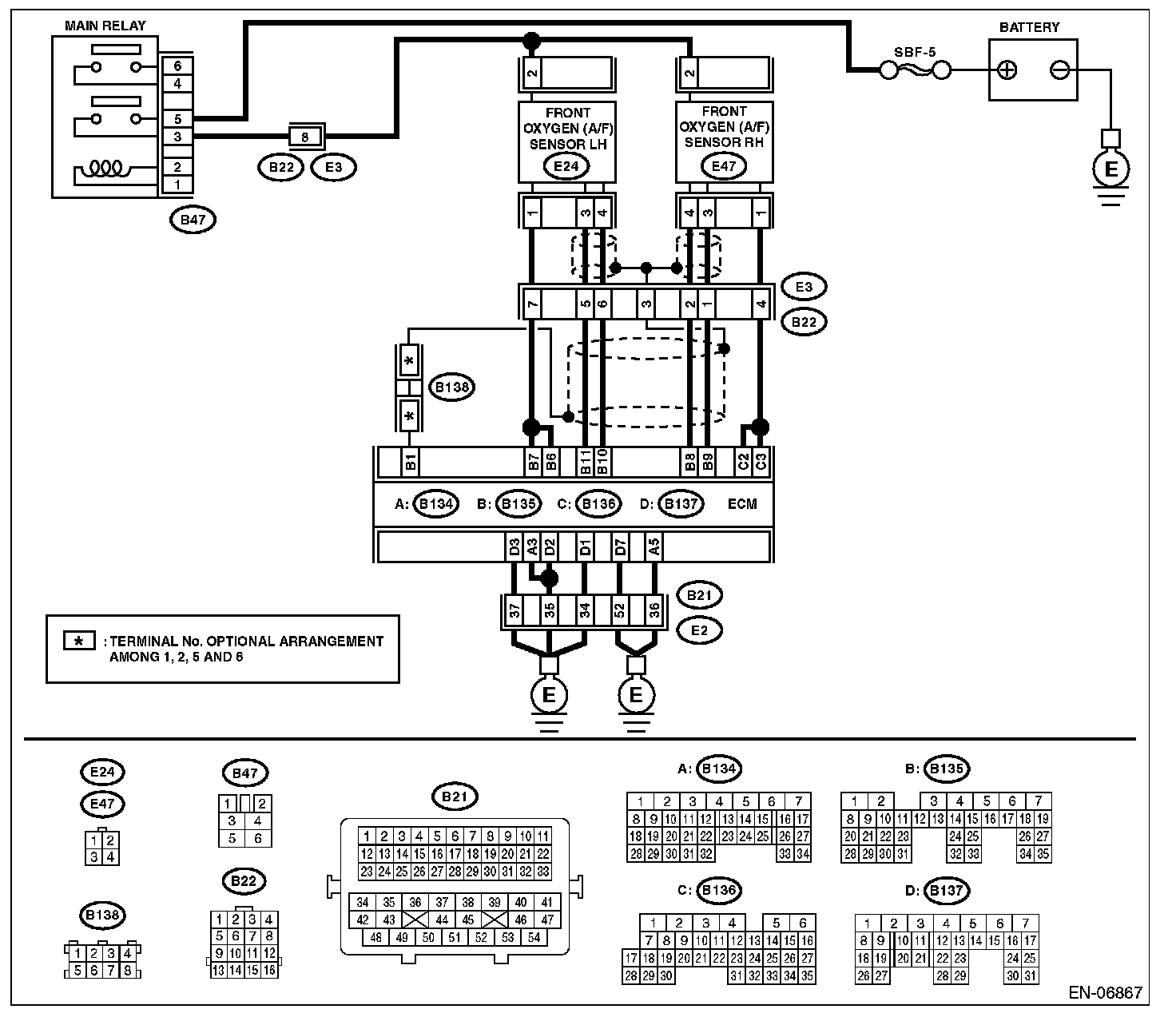

WIRING DIAGRAM:
