P0108

DTC P0108 MANIFOLD ABSOLUTE PRESSURE/BAROMETRIC PRESSURE CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P0108

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode. Preparation For the Inspection Mode

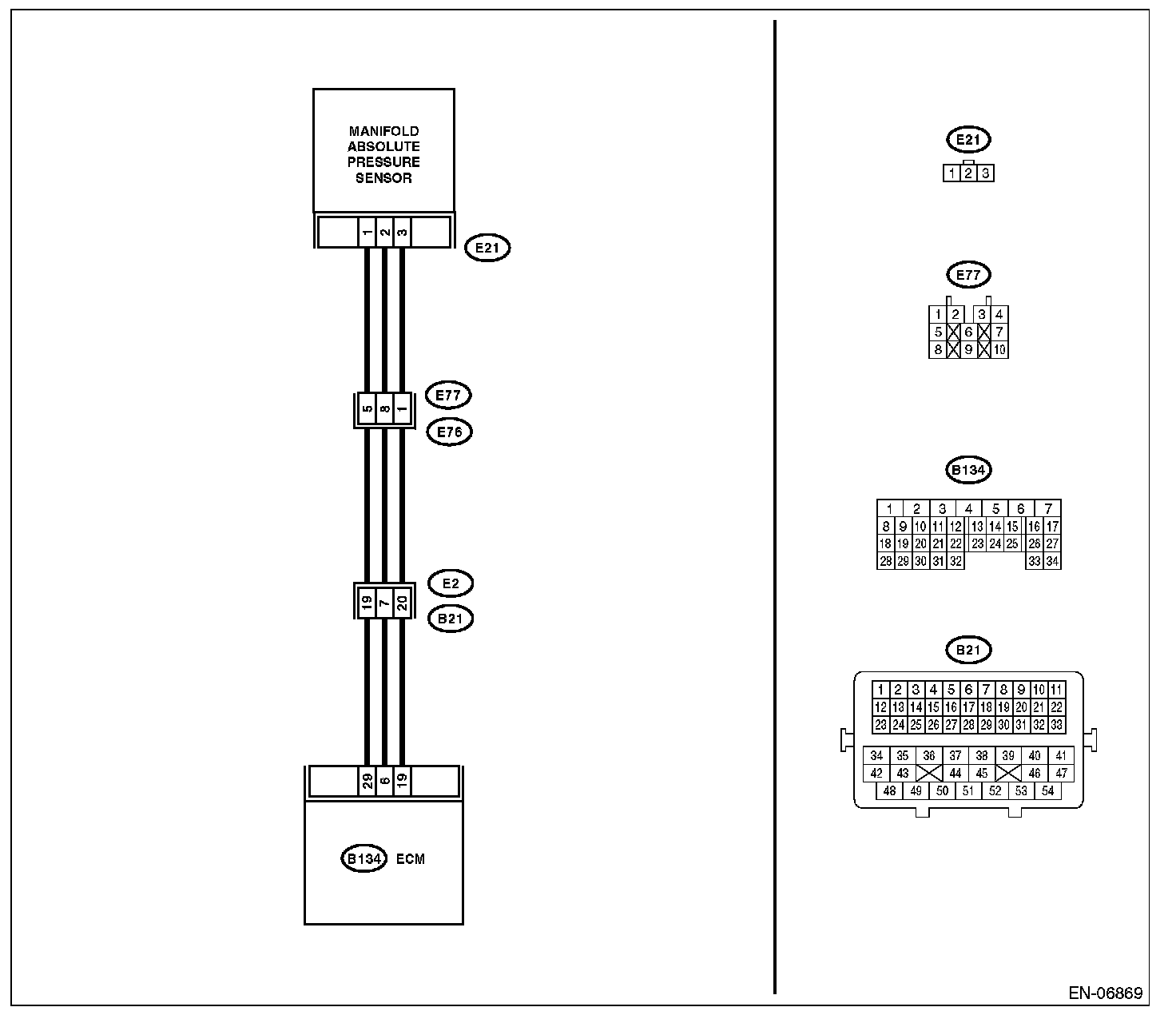

WIRING DIAGRAM:

Wiring Diagram:

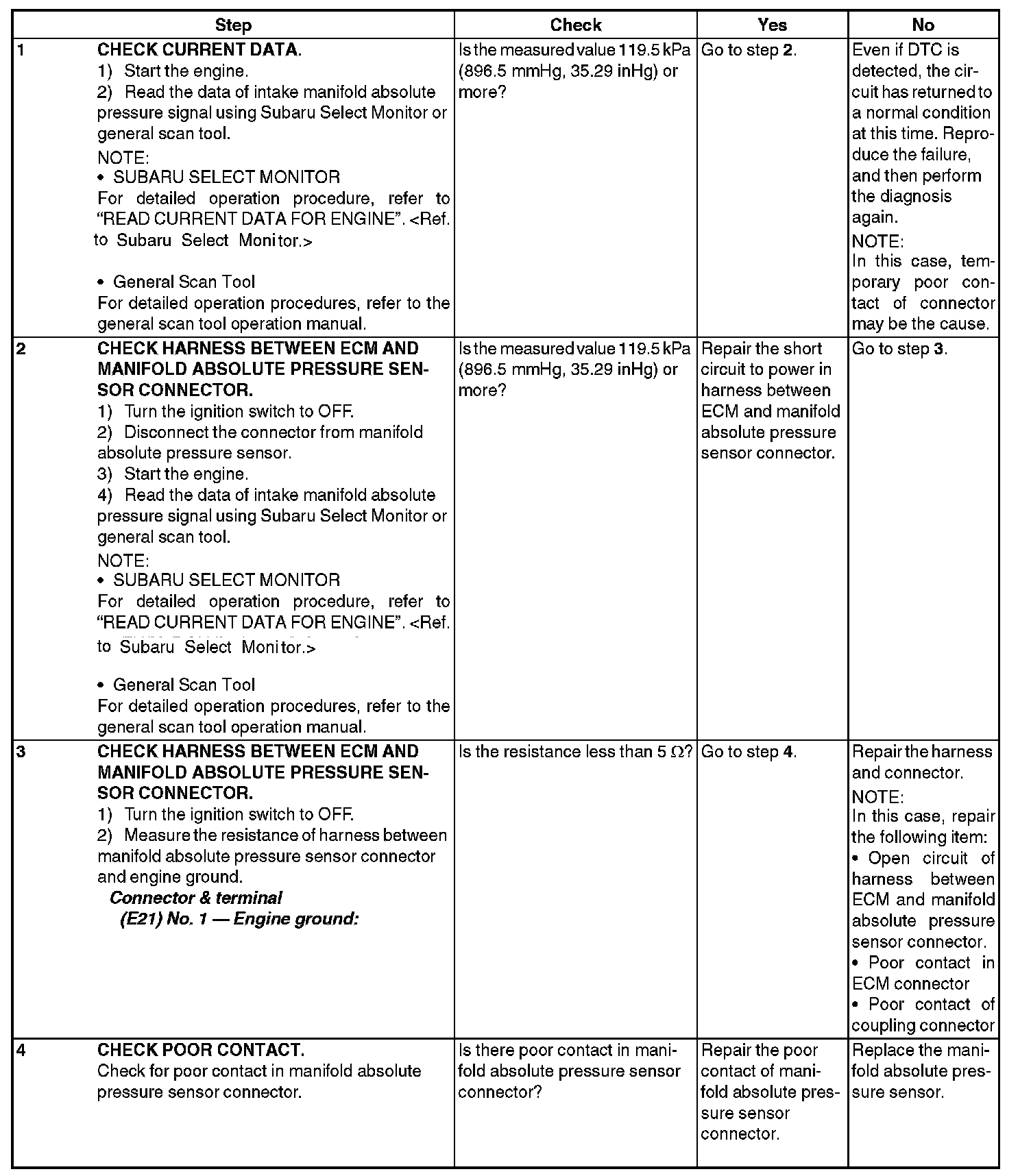

Step 1-4:
