Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 44 >> Tire Pressure Monitoring

Tire Pressure Monitoring

DTC 44 TRANSMITTER 4 FUNCTION CODE ABNORMAL
DTC DETECTING CONDITION: Unexpected function codes received from each transmitter.
TROUBLE SYMPTOM: Tire pressure warning light blinks 25 times and then illuminates.

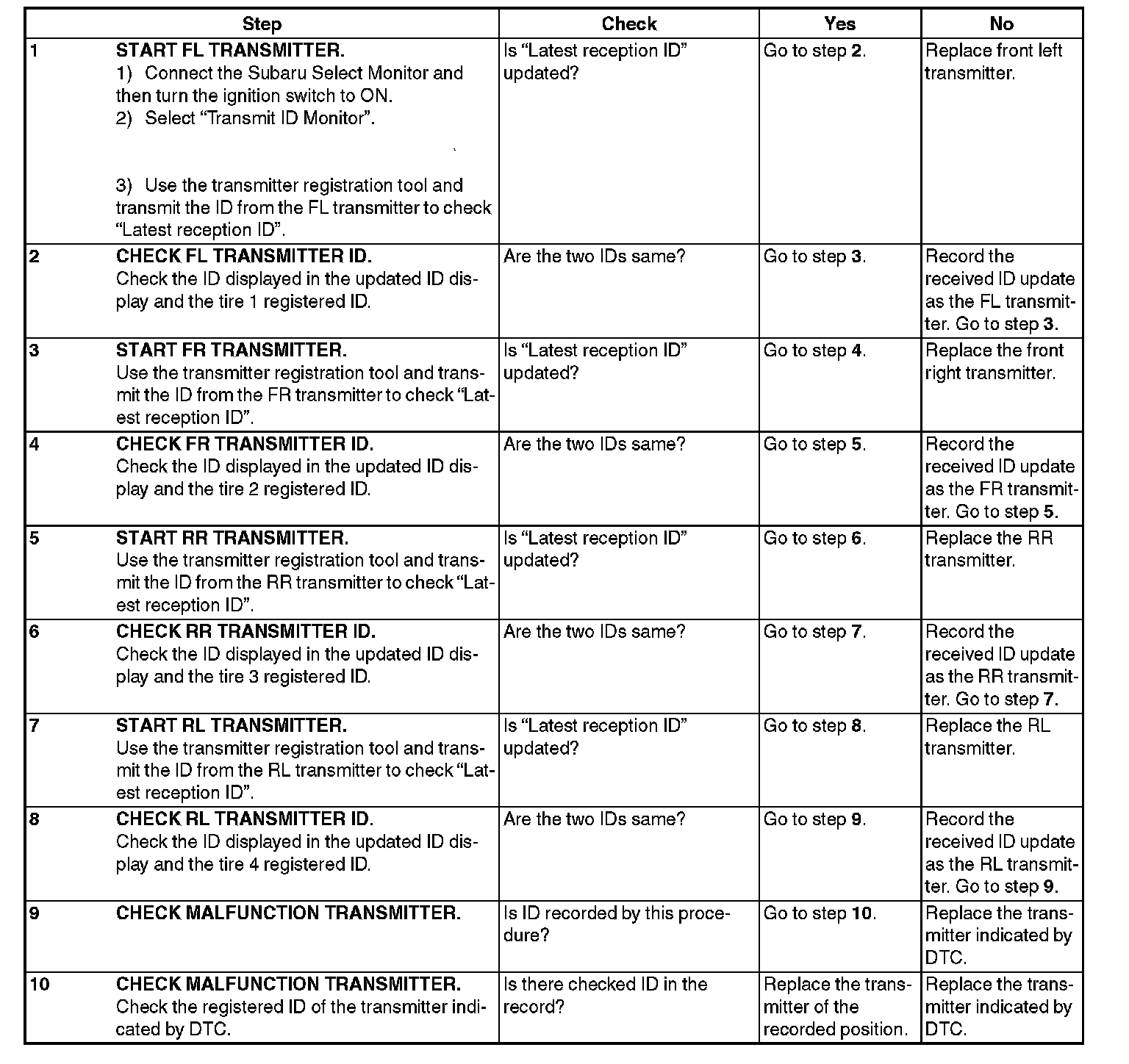

Step 1-Step 10:
