Occupant Detection System (Diagnostics)

DTC 2C BELT TENSION SENSOR FAILURE

DTC DETECTING CONDITION:
- Passenger's seat belt tension sensor is faulty.
- Airbag main harness circuit is open or shorted.
- Occupant detection control module is faulty.

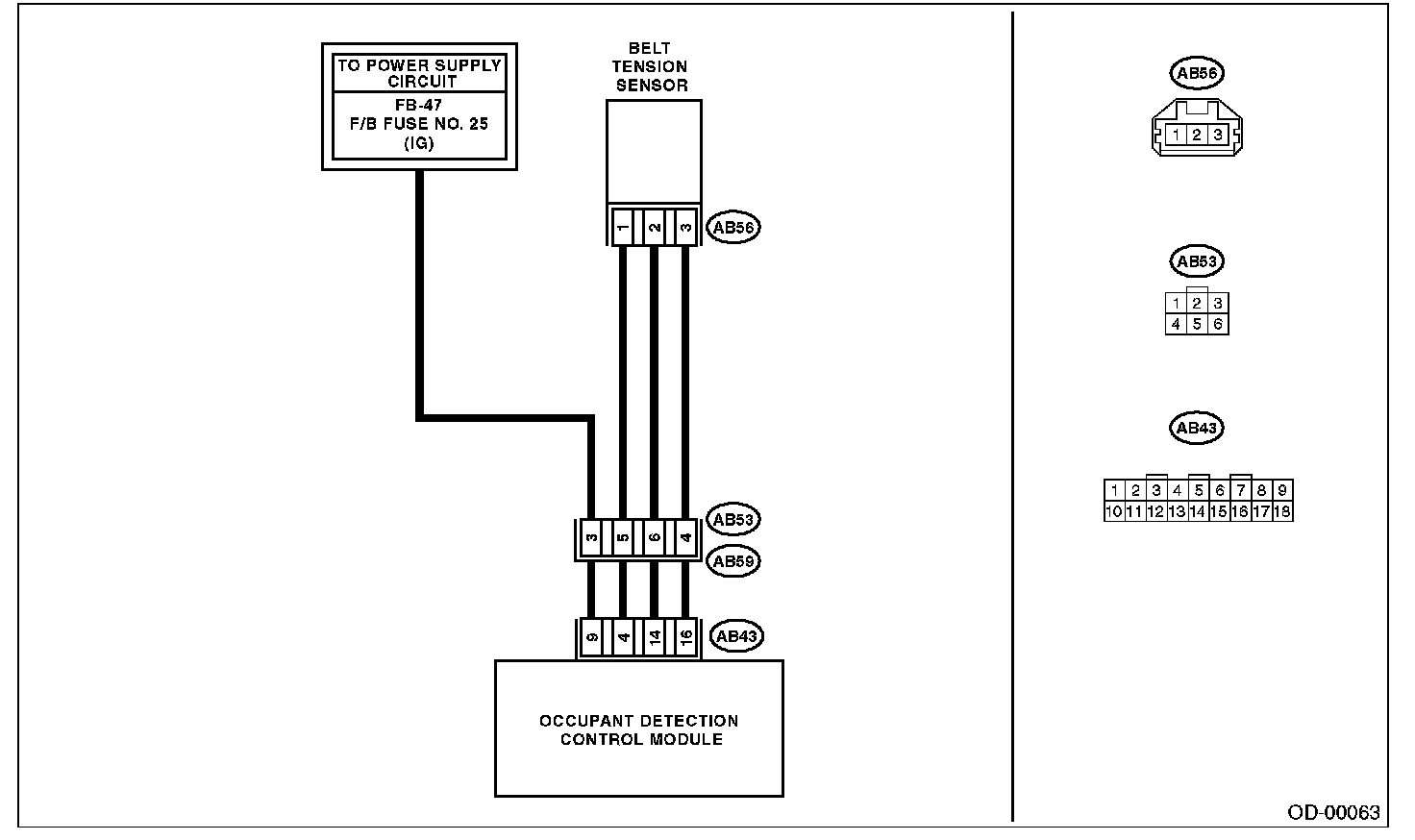

WIRING DIAGRAM
