Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 2B >> Occupant Detection System (Diagnostics)

Occupant Detection System (Diagnostics)

DTC 2B ODS SYSTEM WRONG PARTS

DTC DETECTING CONDITION:
- Wrong airbag control module is installed.
- Wrong occupant detection system is installed.

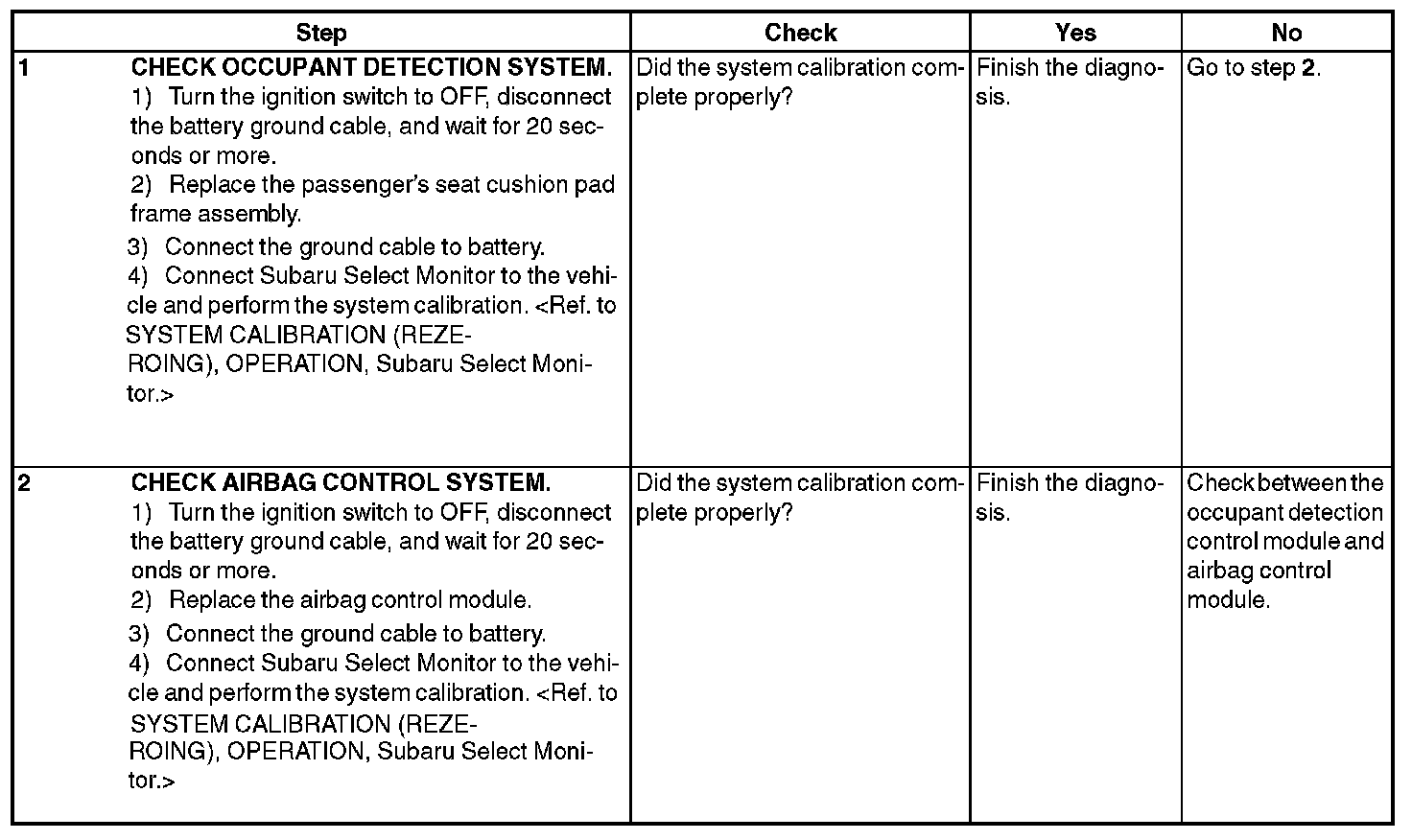

Step 1-2:
