Restraint Systems

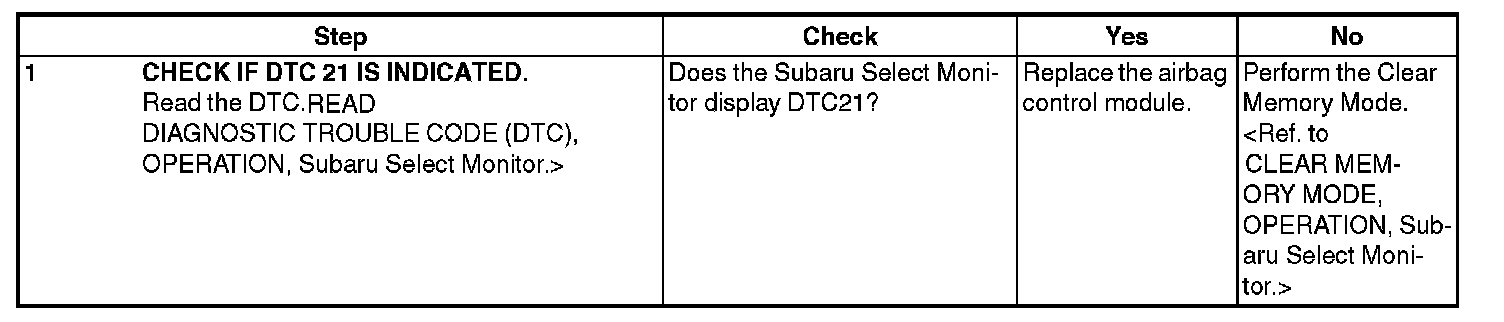

DTC 21 AIRBAG ECM FAILUREDTC DETECTING CONDITION:
Airbag control module is faulty.
CAUTION:
- Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from the battery, and wait 20 seconds or more before starting to work.
- When replacing the airbag module, seat belt pretensioner, roll connector, control module and sensor, reconnect each part and check that the warning light operates properly.
