Cruise Control

DTC 16

This DTC is detected when the ignition switch is turned OFF or problem relating to the ignition switch occurs.

TROUBLE SYMPTOM:
Cruise control cannot be set.

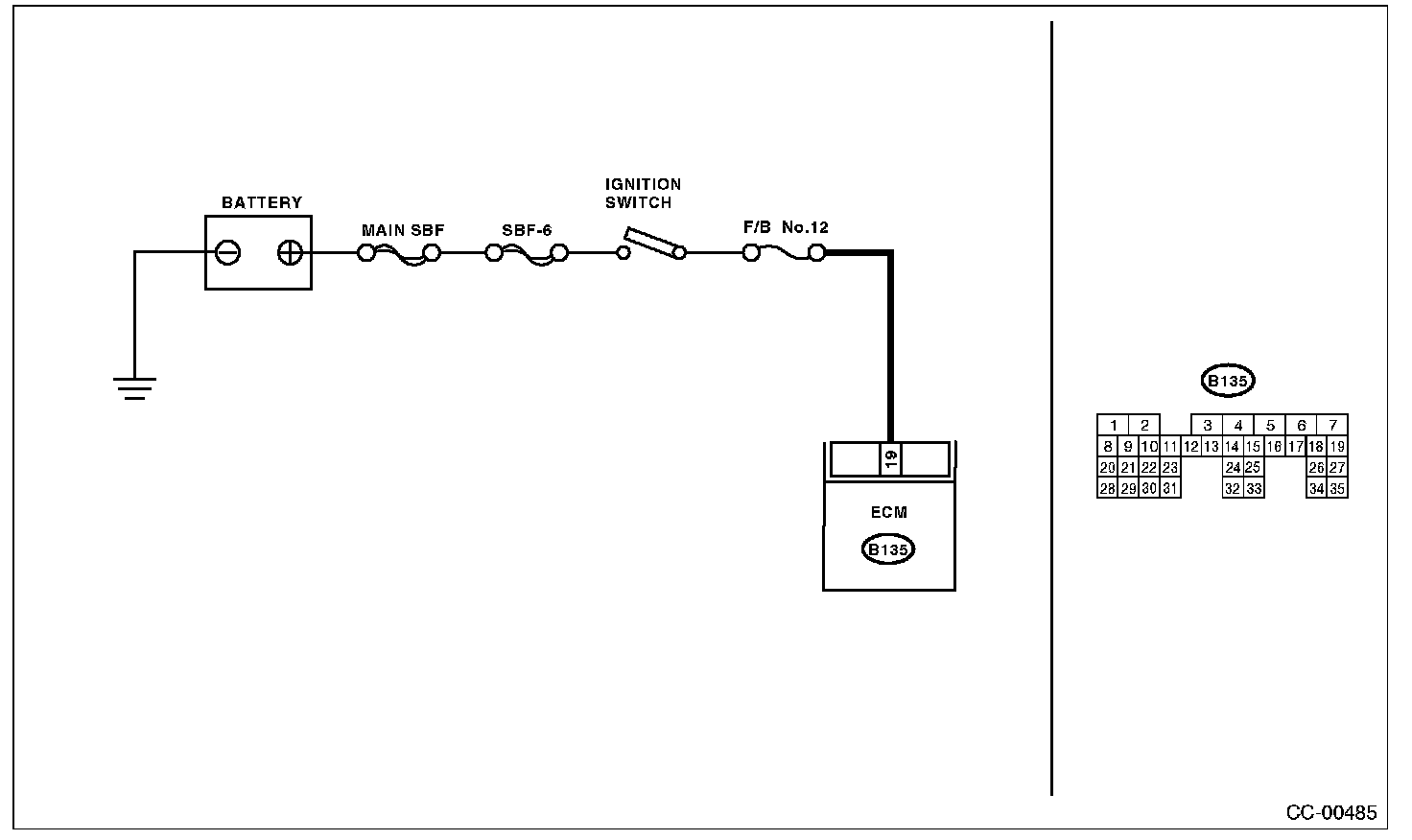

WIRING DIAGRAM:

Wiring Diagram:

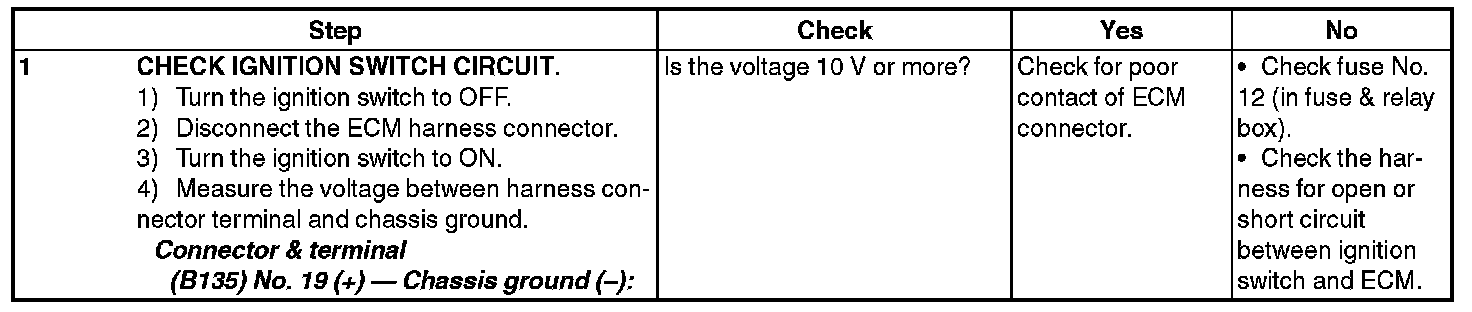

Step 1:
