Tire Pressure Monitoring

DTC 14 TIRE 4 AIR PRESSURE DECREASE
DTC DETECTING CONDITION: Inflation pressure of tires dropped under specifications

NOTE: For specification, refer to "Tire Pressure Warning Light / Trouble Indicator Light Illumination Pattern".

TROUBLE SYMPTOM: Tire pressure warning light illuminates.

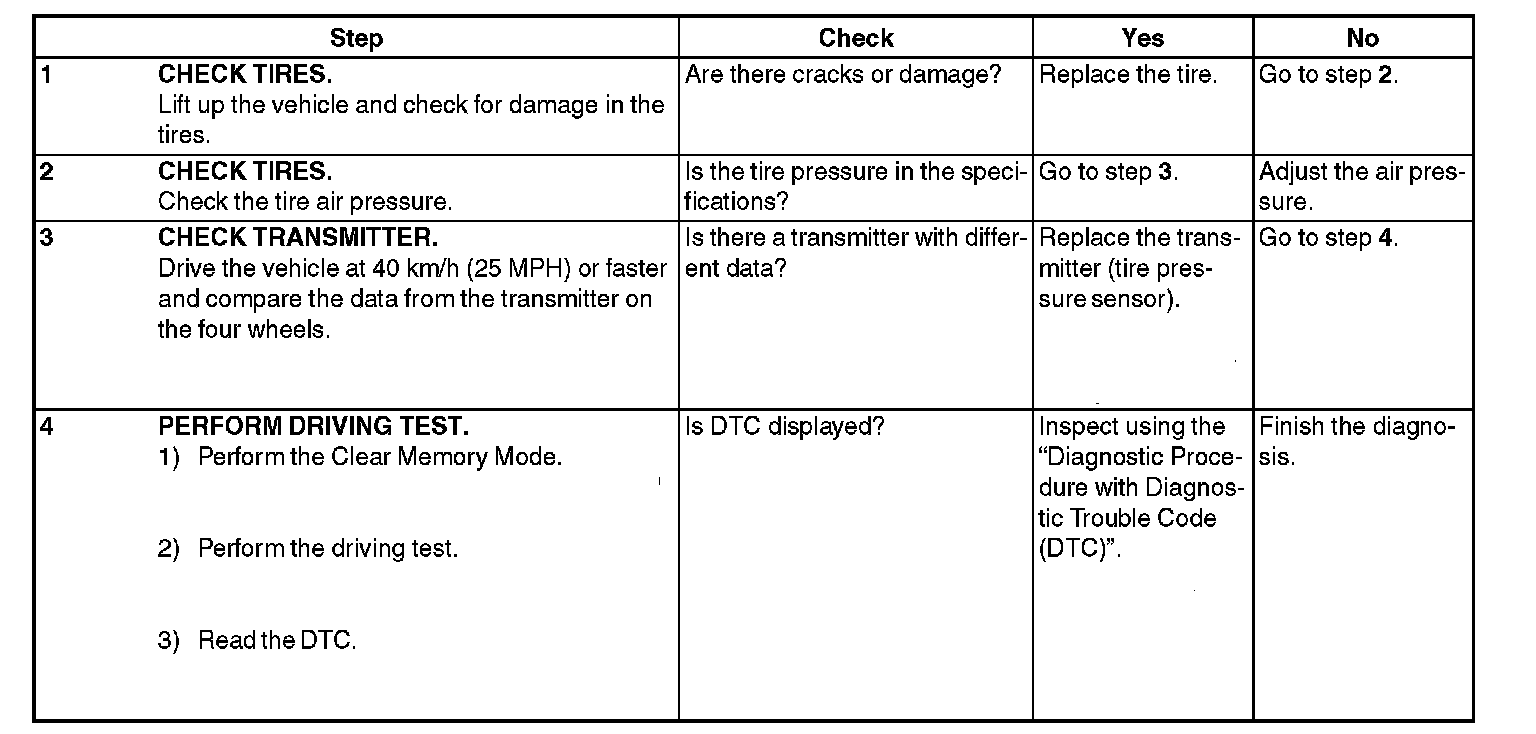

Step 1-Step 4:

CAUTION: When driving vehicle to perform driving test, there should be always 2 persons (driver and checker) to check.
