P2103
DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH1. OUTLINE OF DIAGNOSIS
Judge as NG when the electronic throttle control power is supplied even when ECM sets the electronic throttle control relay to OFF.

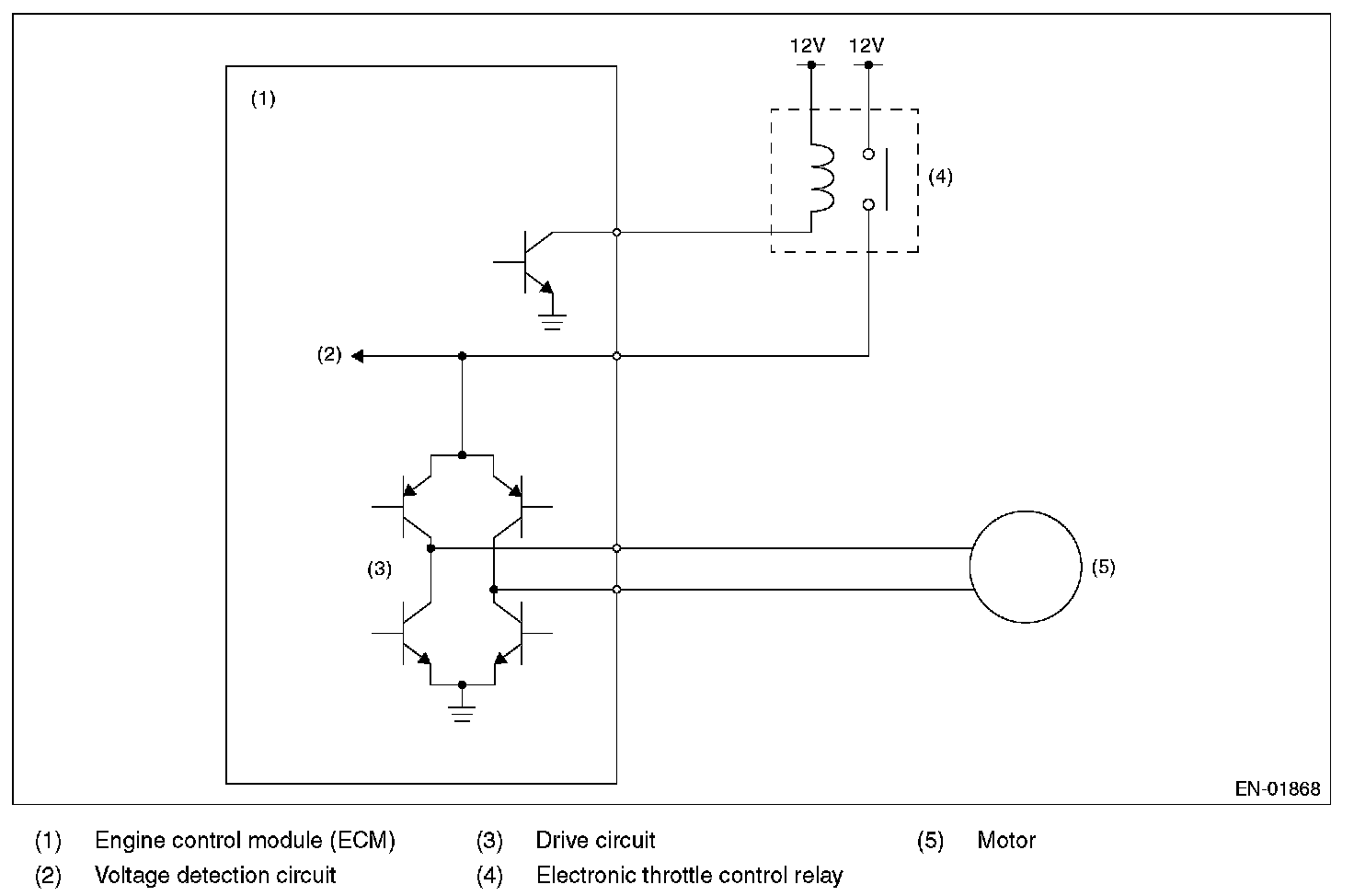

2. COMPONENT DESCRIPTION

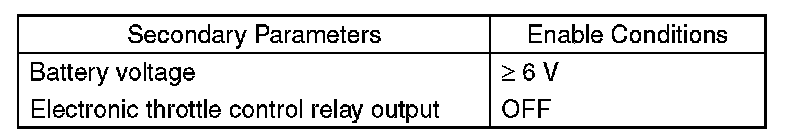

3. ENABLE CONDITION
4. GENERAL DRIVING CYCLE
- When ignition switch ON -> OFF
- Ignition switch OFF -> ON (Only after clearing memory)
5. DIAGNOSTIC METHOD

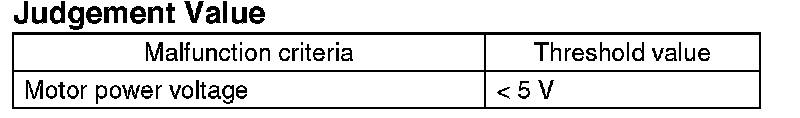

Abnormality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.
Time Needed for Diagnosis: 600 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

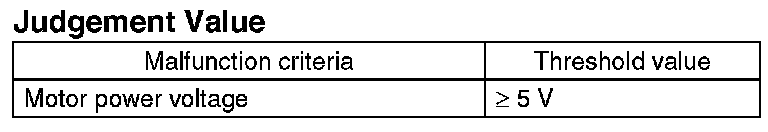

Normality Judgement
Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.
Time Needed for Diagnosis: 400 ms
