P0607
DTC P0607 THROTTLE CONTROL SYSTEM CIRCUIT RANGE/PERFORMANCE1. OUTLINE OF DIAGNOSIS
Judge as NG when any one of the fallowings is established.
1. When the read value of throttle position sensor 1 signal is mismatched between main CPU and sub CPU.
2. When the read value of accelerator pedal position sensor 1 signal is mismatched between main CPU and sub CPU.
3. When the sub CPU operates abnormally.
4. When the communication between main CPU <- -> sub CPU is abnormal.
5. When the input amplifier circuit of throttle position sensor 1 is abnormal.
6. When the cruise control cannot be canceled correctly.
7. When the signal of brake SW1 and 2 is mismatched.

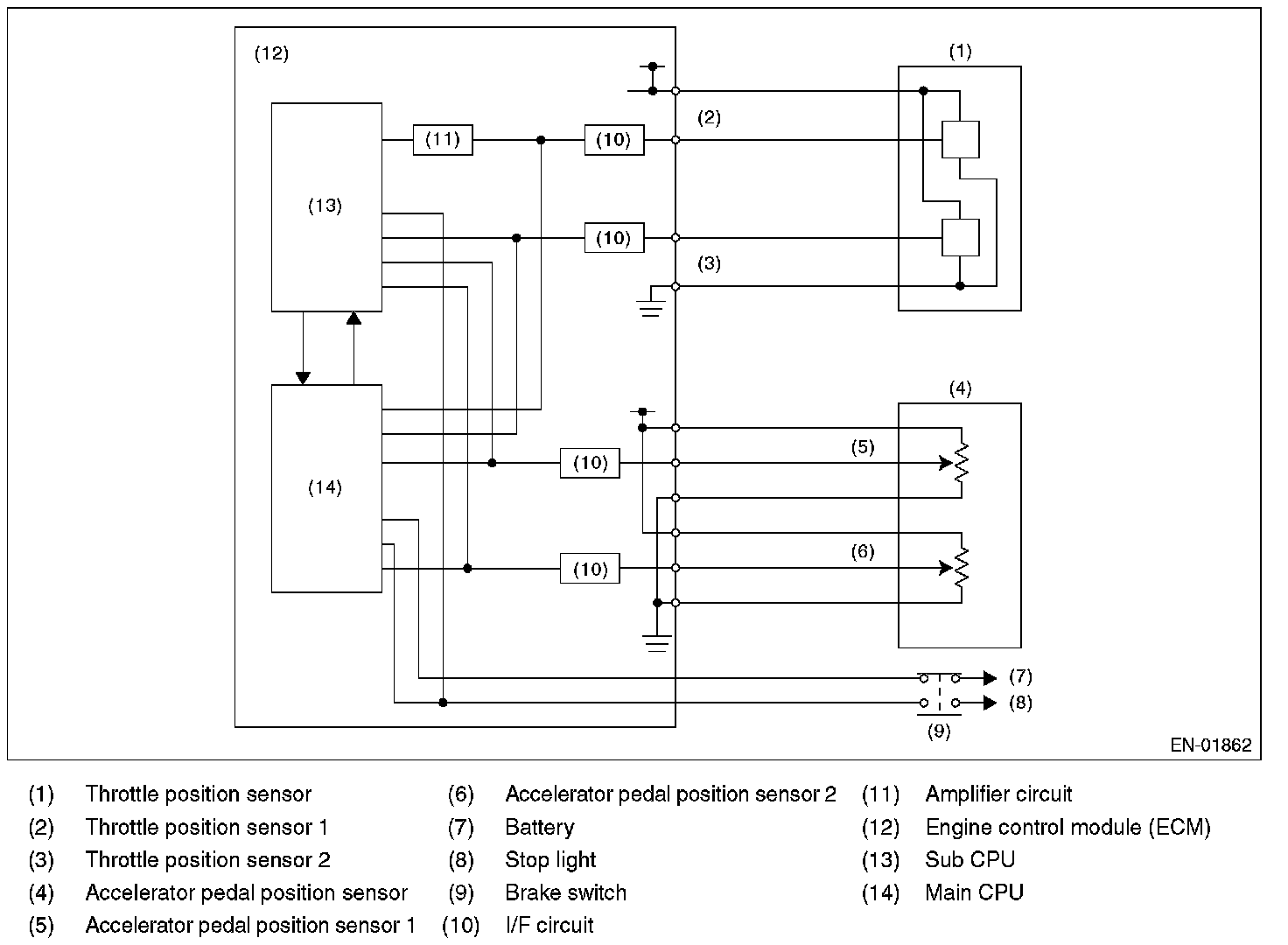

2. COMPONENT DESCRIPTION

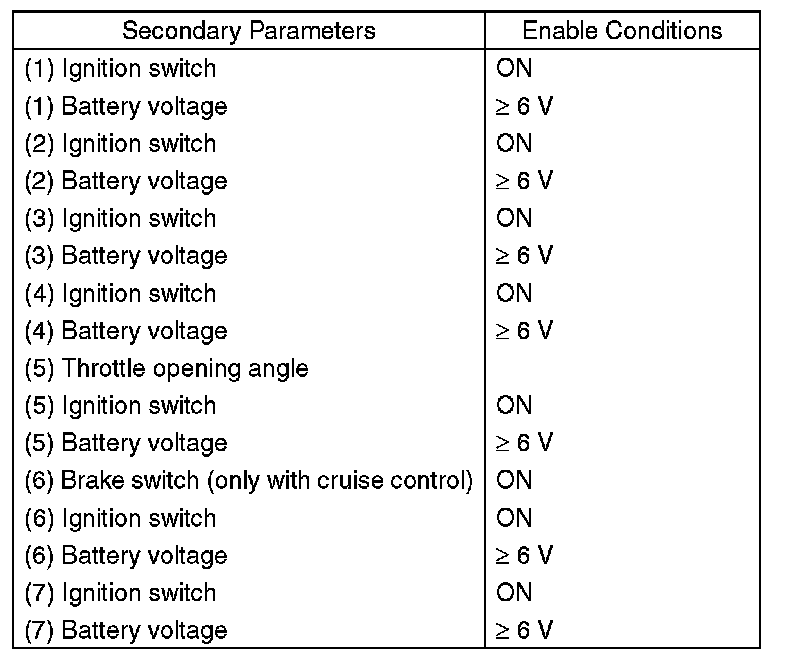

3. ENABLE CONDITION
4. GENERAL DRIVING CYCLE
(1) - (4): Always perform the diagnosis continuously.
(5): Always perform the diagnosis continuously when idling.
(6): Perform the diagnosis when the brake pedal is depressed.
(7): Always perform the diagnosis continuously.
5. DIAGNOSTIC METHOD
Abnormality Judgement

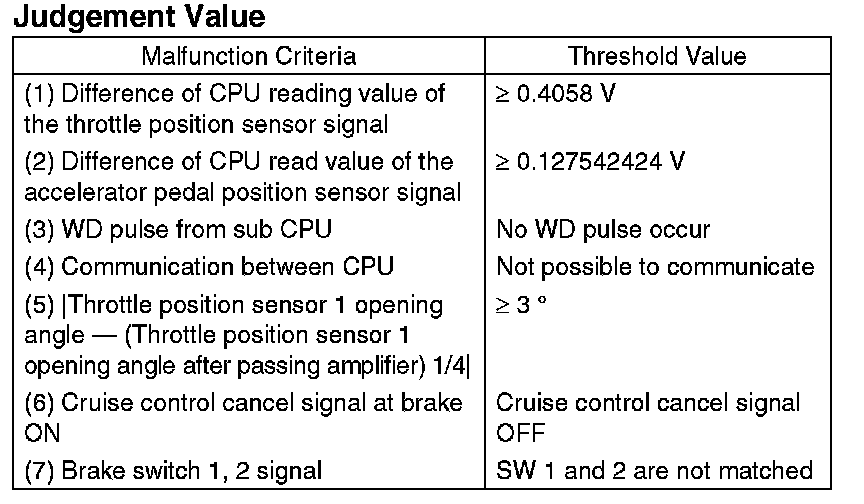

Judge as NG when the following conditions are established. Judgement Value
Time Needed for Diagnosis:
(1): 600 ms
(2): 830 ms
(3): 200 ms
(4): 200 ms
(5): 24 ms
(6): 250 ms
(7): 200 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
Normality Judgement

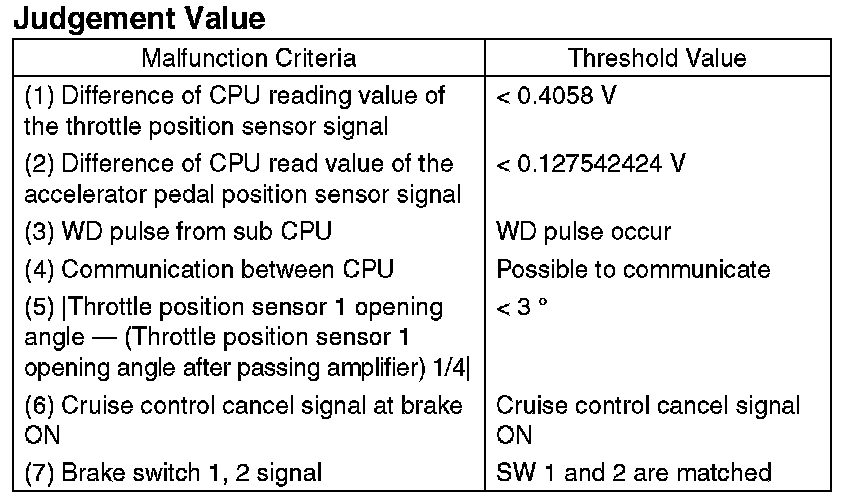

Judge as OK and clear the NG if the following conditions are established.
Time Needed for Diagnosis:
(1): 2000 ms
(2): 2000 ms
(3): 2000 ms
(4): 2000 ms
(5): 24 ms
(6): 2000 ms
(7): 2000 ms
