P0507

DTC P0507 IDLE AIR CONTROL SYSTEM RPM HIGHER THAN EXPECTED

1. OUTLINE OF DIAGNOSIS
Detect the malfunction that actual engine speed is not close to target engine speed during idling.
Judge as NG when actual engine speed is not close to target engine speed during idling.

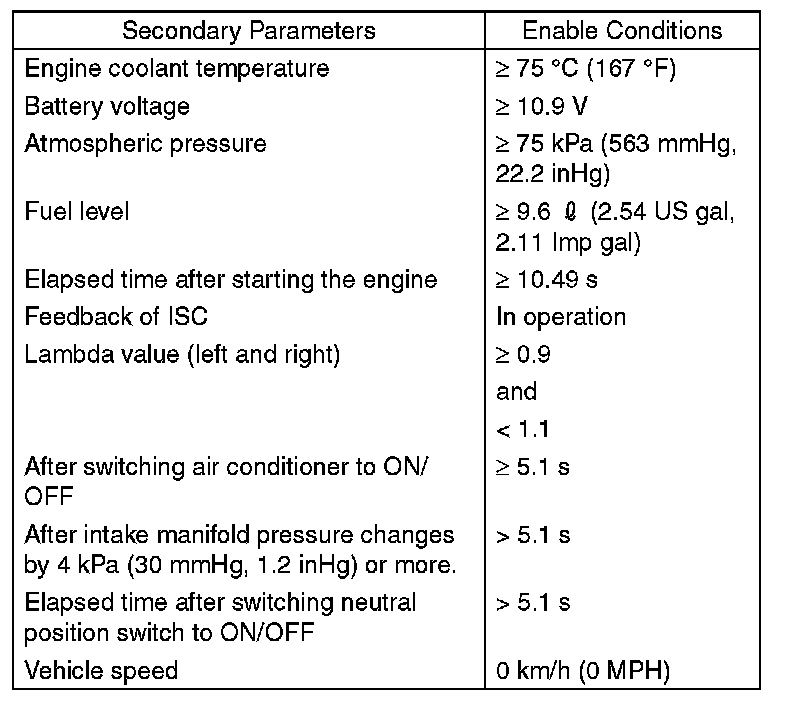

2. ENABLE CONDITION






3. GENERAL DRIVING CYCLE
Perform the diagnosis continuously at idling after warming up engine.

4. DIAGNOSTIC METHOD

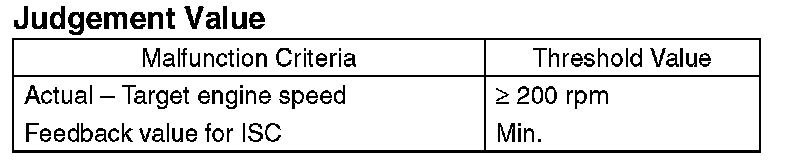

Abnormality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: 10 s x 3 time(s)

Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.

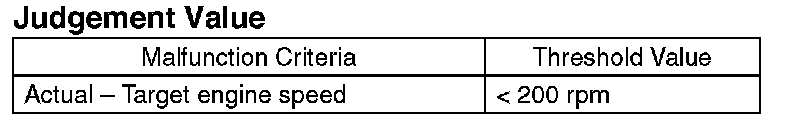

Normality Judgement
Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.






Time Needed for Diagnosis: 10 s
