P0198

DTC P0198 ENGINE OIL TEMPERATURE SENSOR HIGH

1. OUTLINE OF DIAGNOSIS
Detect the open or short circuit of the oil temperature sensor.
Judge as NG when outside of the judgment value.

2. ENABLE CONDITION






3. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

4. DIAGNOSTIC METHOD

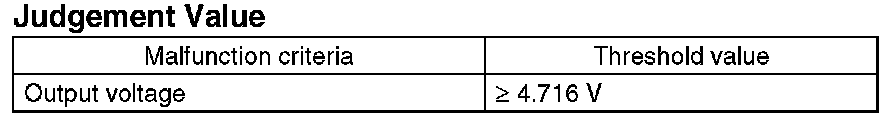

Abnormality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: 500 ms

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

Normality Judgement
Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.






Time Needed for Diagnosis: Less than 1 second
