C0127

DTC C0127 REAR OUTLET SOLENOID VALVE RH MALFUNCTION IN ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM&H/U)
DTC DETECTING CONDITION:
^ Defective harness connector
^ Defective outlet solenoid valve in ABSCM&H/U
TROUBLE SYMPTOM:
^ ABS does not operate.
^ EBD does not operate.

NOTE: Brake warning light illuminates as well as the ABS warning light.

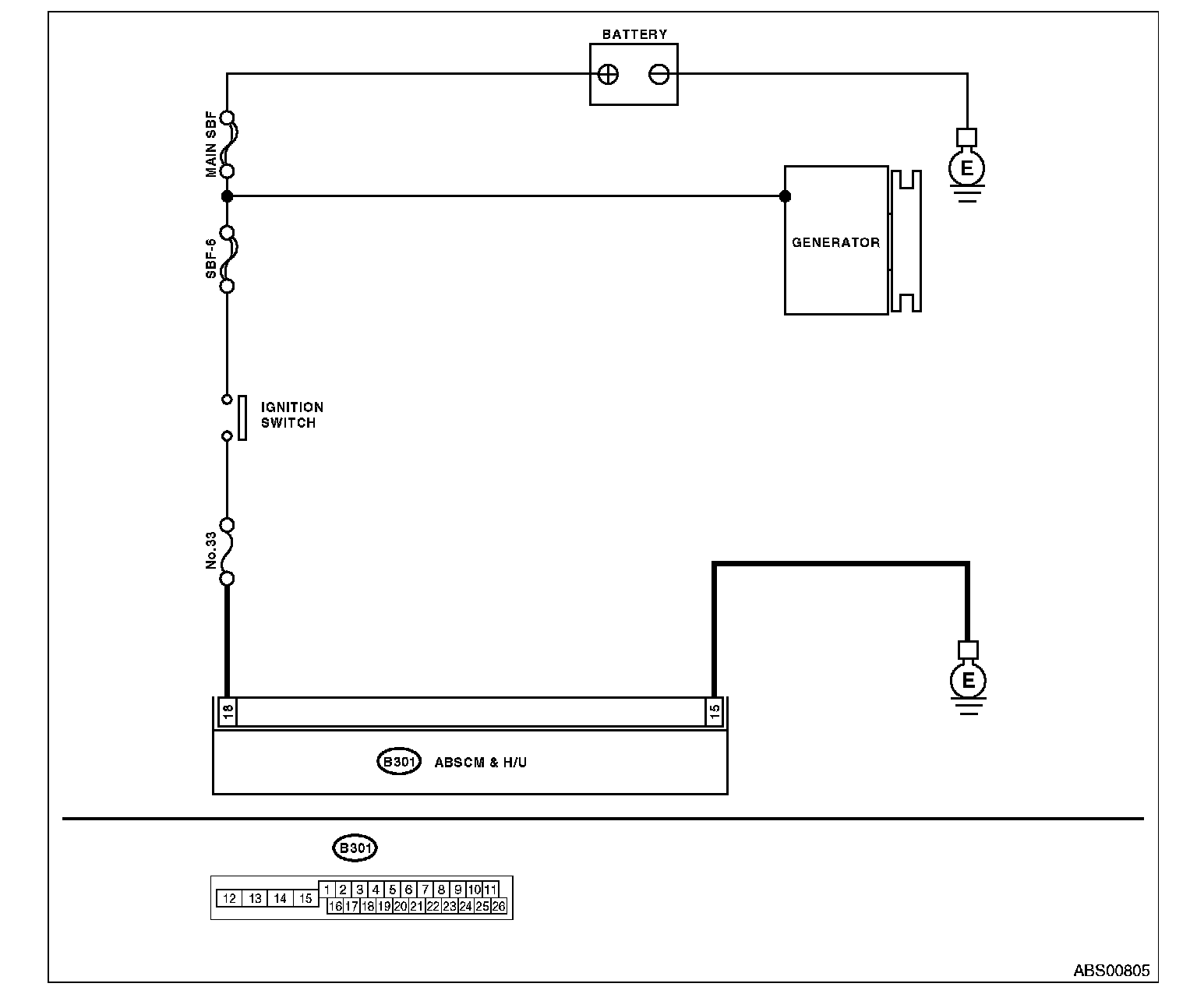

WIRING DIAGRAM:

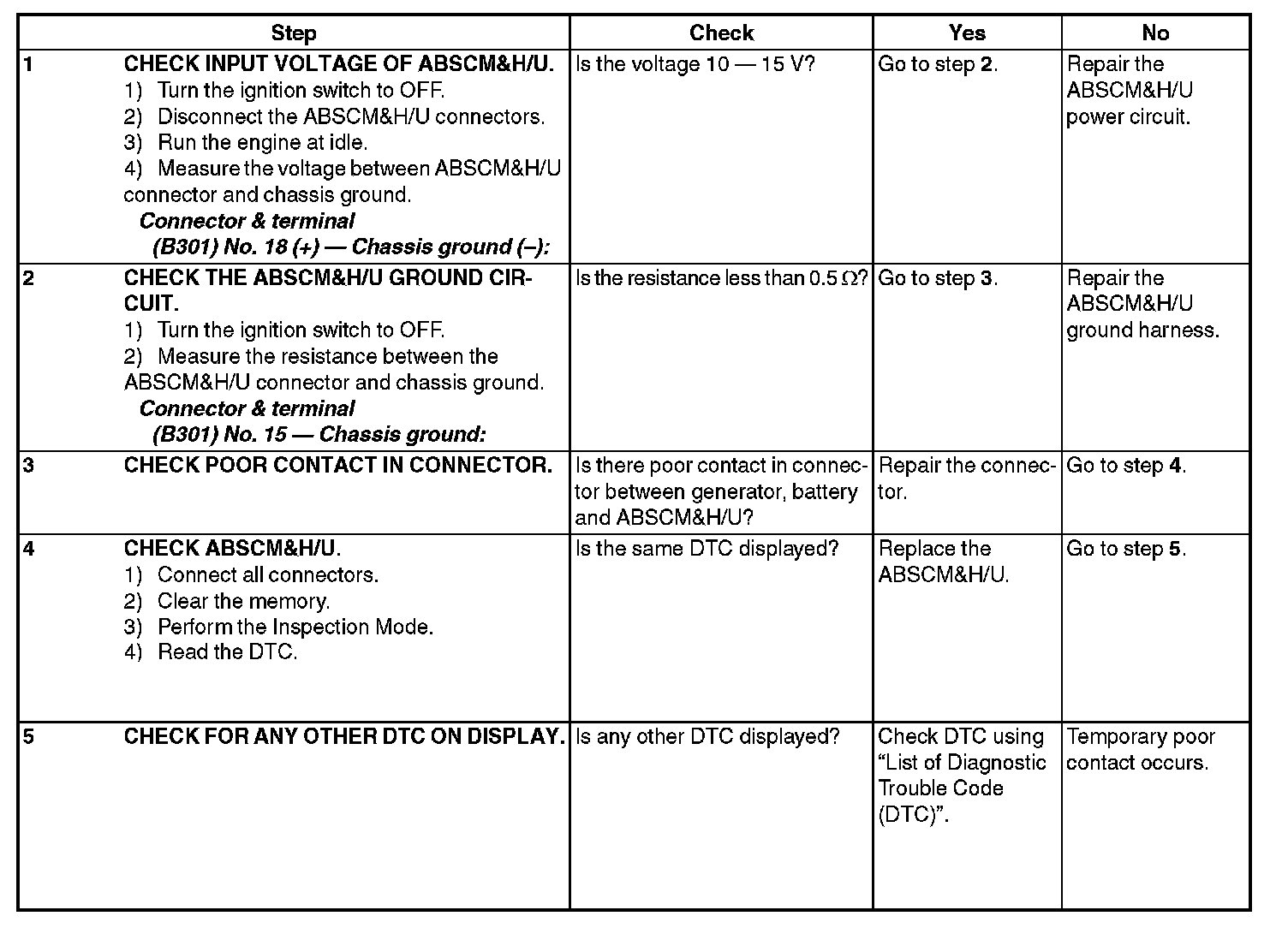

Step 1-Step 5:
