Yaw Rate Sensor Communication

DTC C0072 YAW RATE SENSOR COMMUNICATION
DTC DETECTING CONDITION: Communication failure between yaw rate sensor and VDCCM
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

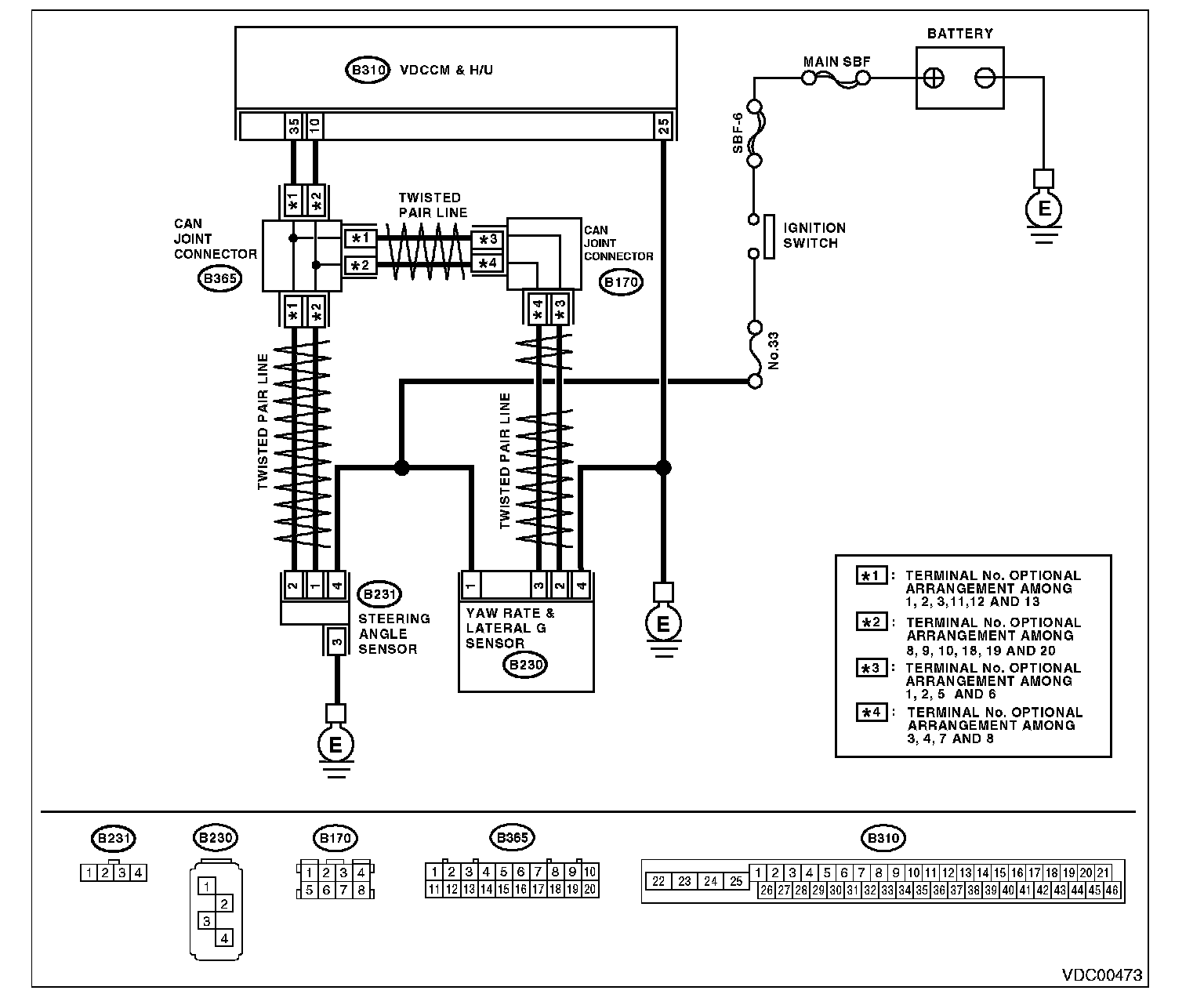

WIRING DIAGRAM:




Step 1:

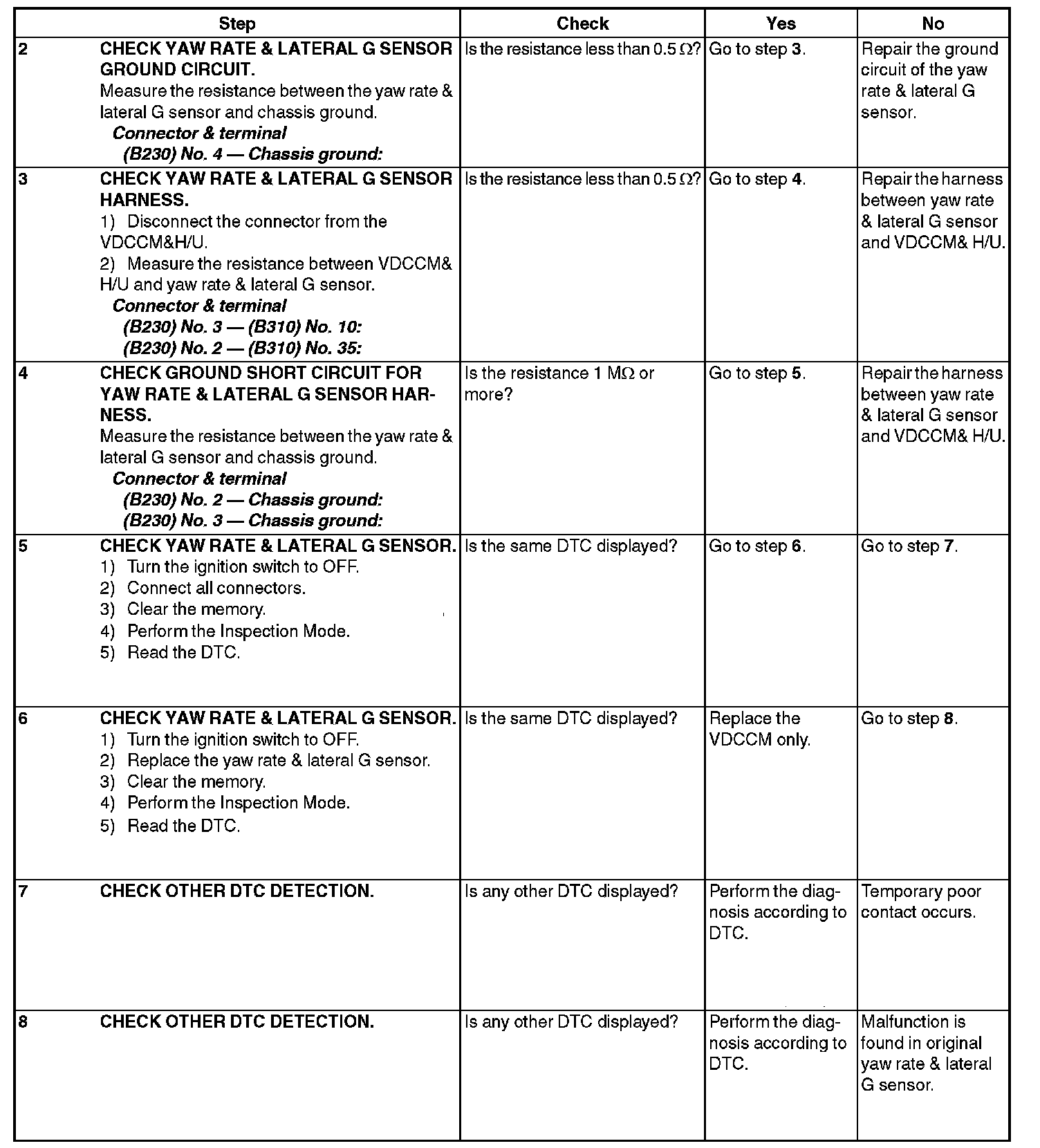

Step 2-Step 8:
