Change Range of Steering Angle Sensor Is Too Big

DTC C0071 CHANGE RANGE OF STEERING ANGLE SENSOR IS TOO BIG
DTC DETECTING CONDITION: Defective steering angle sensor
TROUBLE SYMPTOM: VDC does not operate.

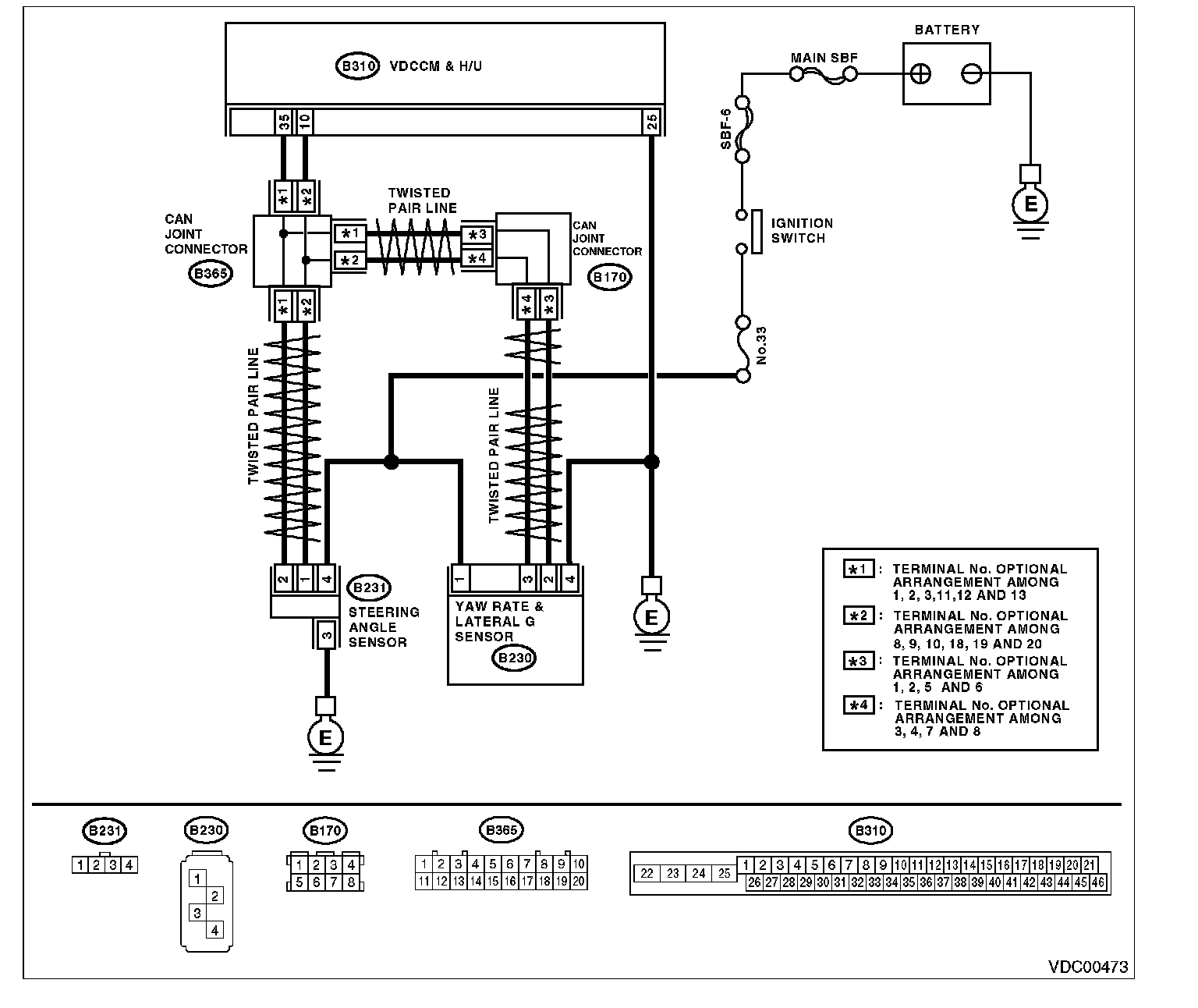

WIRING DIAGRAM:

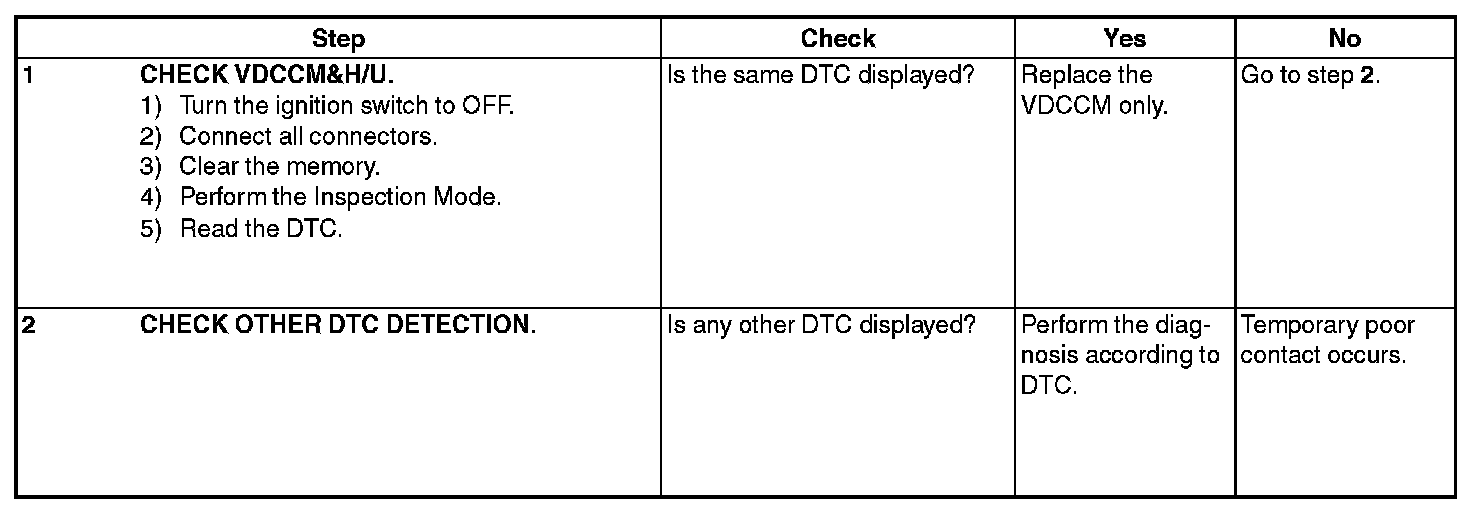

Step 1-Step 2:
