Home >> Subaru >> 2009 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0057 >> ECM Communication Circuit

ECM Communication Circuit

DTC C0057 ECM COMMUNICATION CIRCUIT
DTC DETECTING CONDITION: No CAN signal from ECM.
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

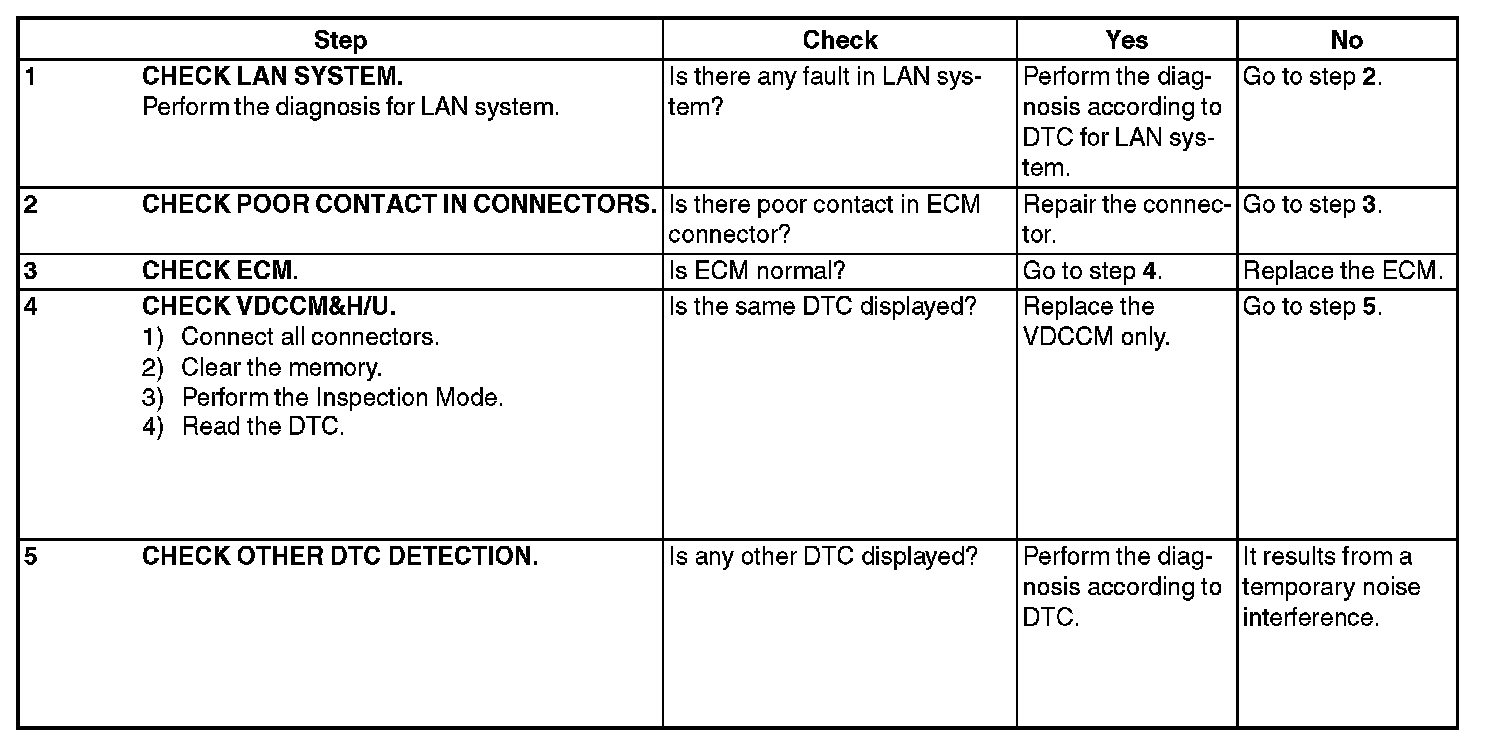

Step 1-Step 6:
