BLS Circuit Open

DTC C0054 BLS CIRCUIT OPEN
DTC DETECTING CONDITION: Defective stop light switch
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

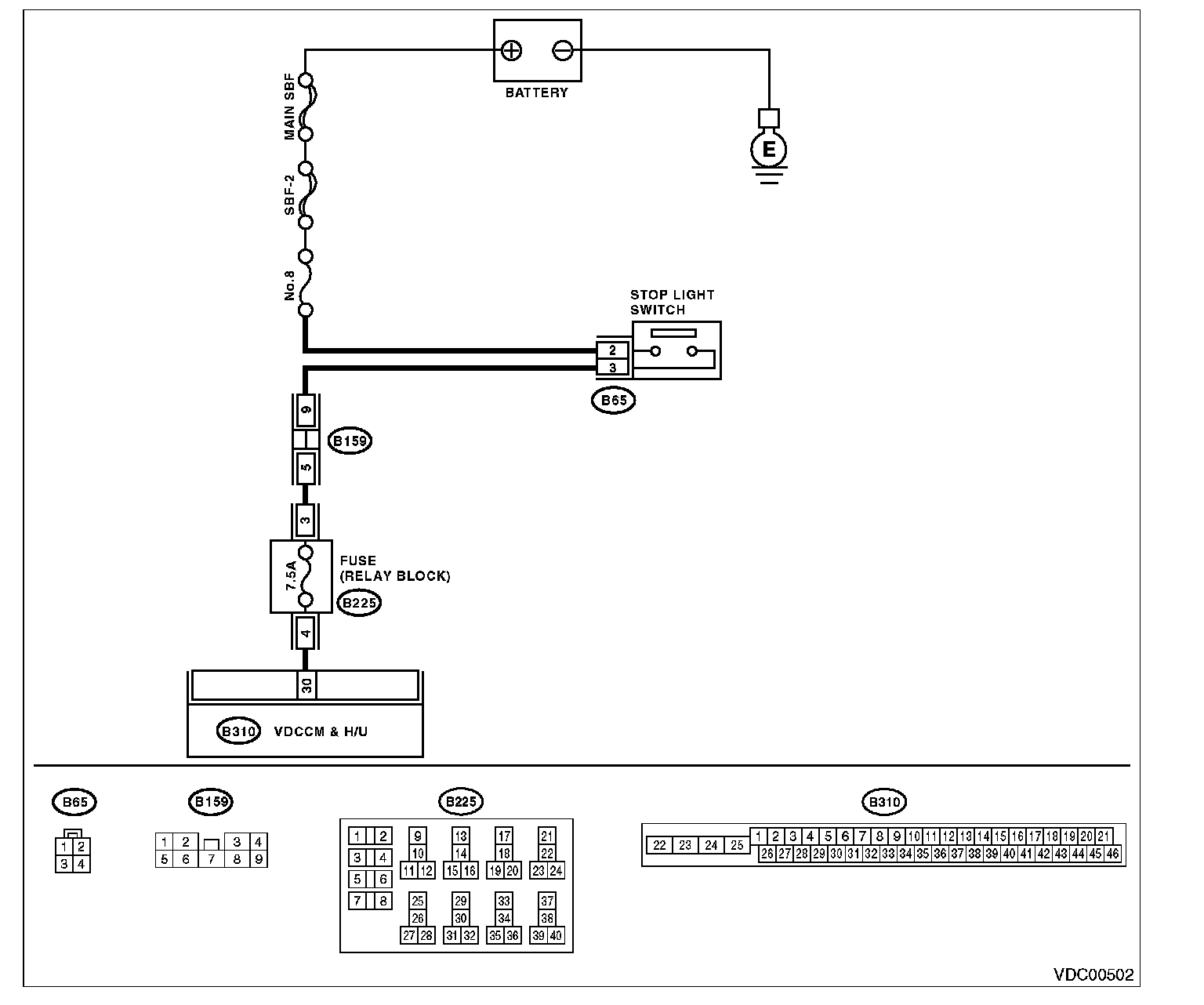

WIRING DIAGRAM:

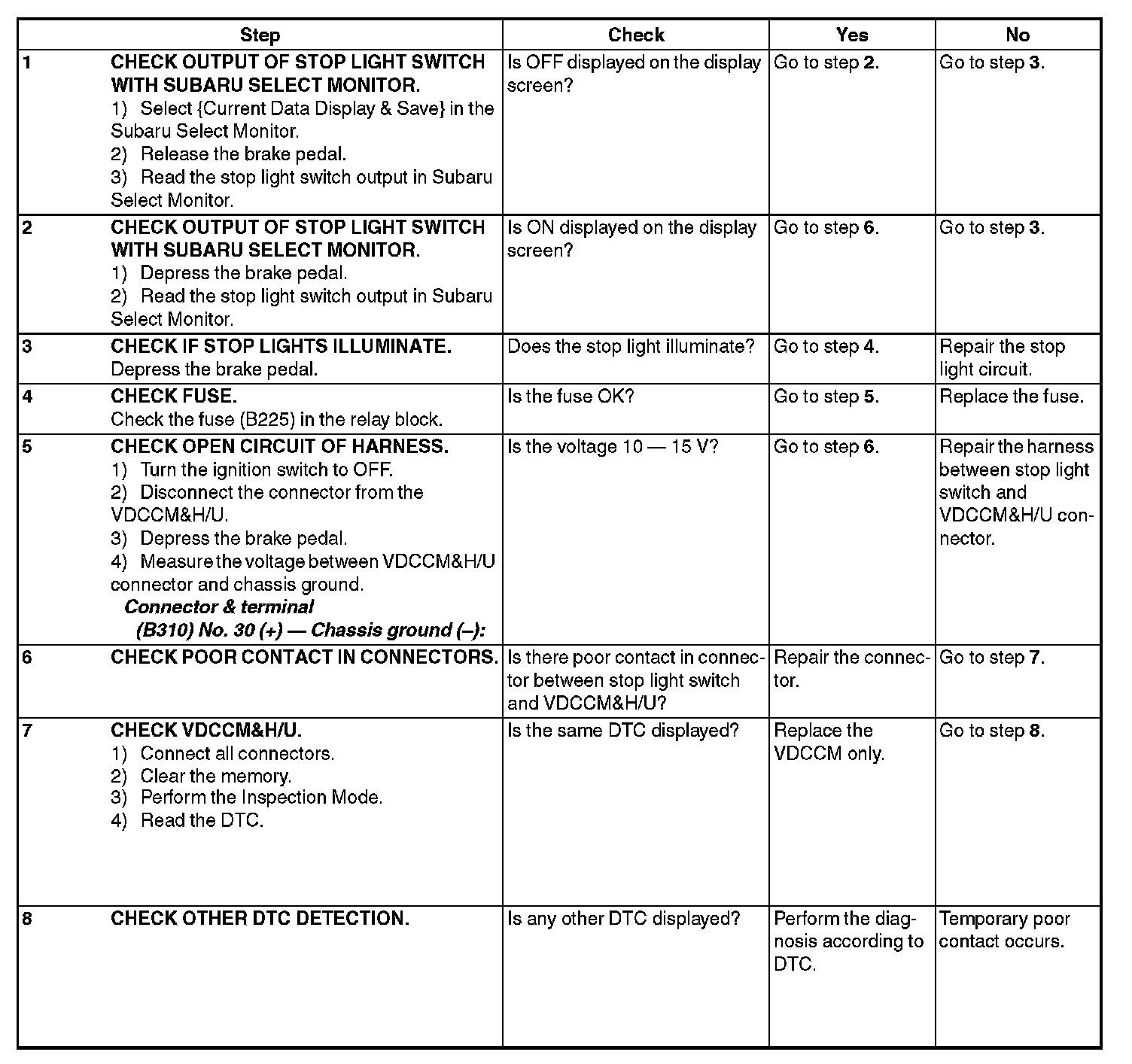

Step 1-Step 8:
