Incorrect VDC Control Module Specifications

DTC C0045 INCORRECT VDC CONTROL MODULE SPECIFICATIONS
DTC DETECTING CONDITION: Different control module specification
TROUBLE SYMPTOM:
^ ABS does not operate.
^ VDC does not operate.

NOTE: When parameter selection for VDCCM is improper, this DTC may be memorized.

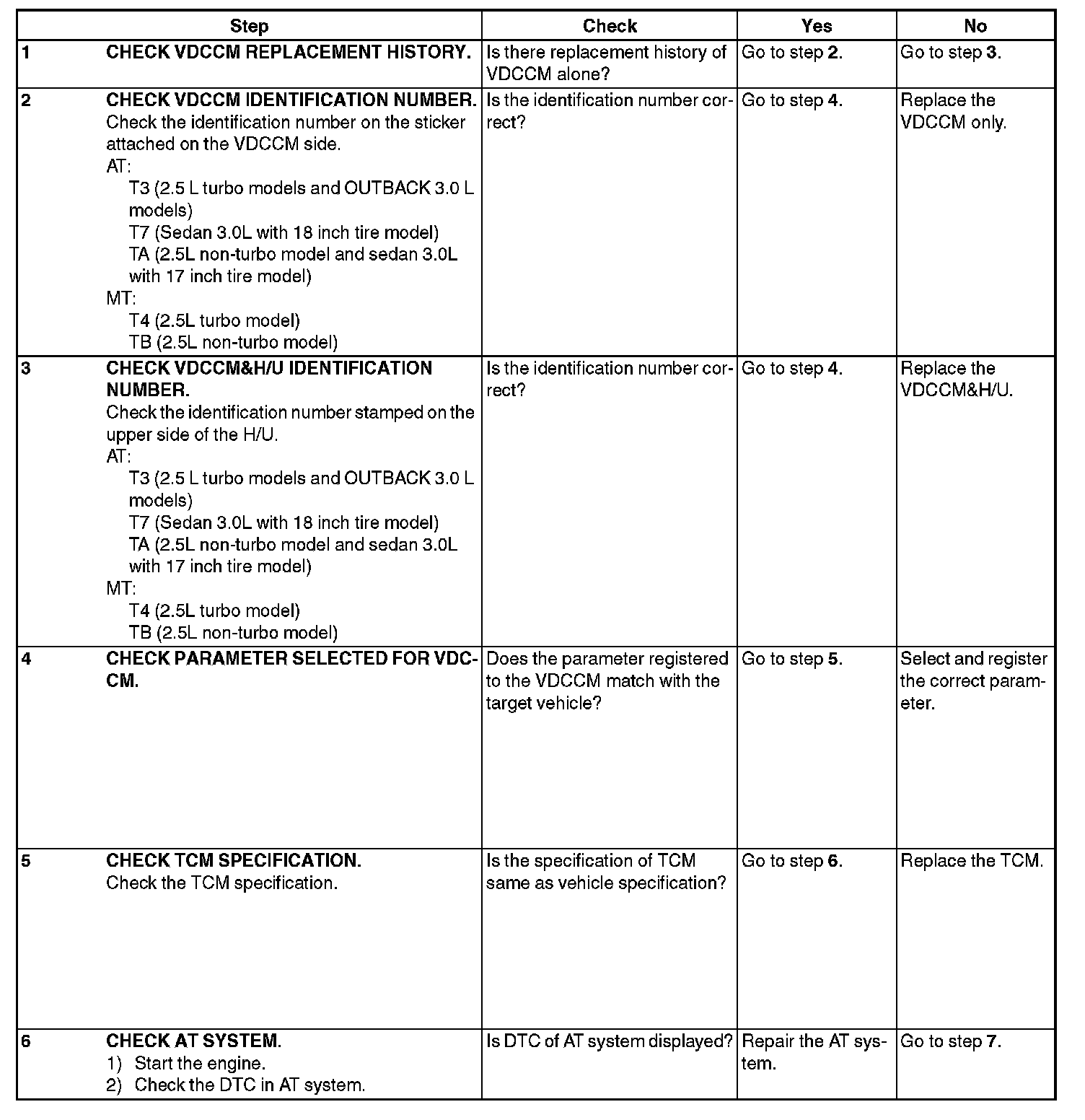

Step 1-Step 6:

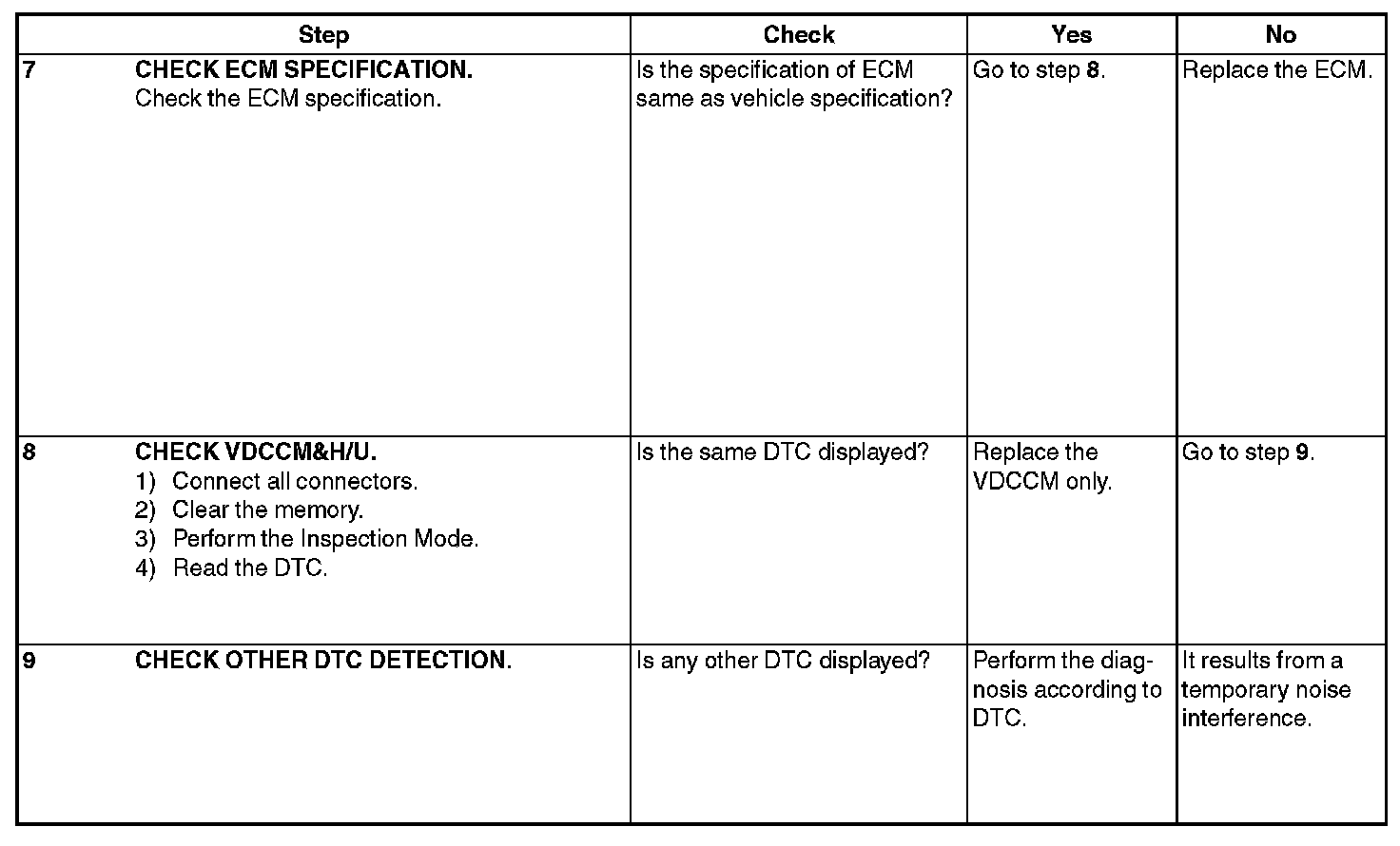

Step 7-Step 9:
