5MT
REPLACEMENT1. Clean the transmission exterior.

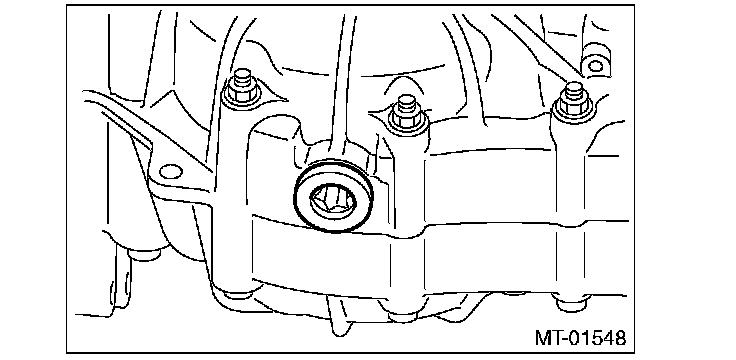

2. Using the TORX bit T70, remove the drain plug, and drain the transmission gear oil completely.
3. Using the TORX bit T70, tighten the transmission gear oil drain plug.
NOTE: Use a new gasket.
Tightening torque:
44 N-m (4.5 kgf-m, 32.5 ft-lb)(Aluminum gasket)
70 N-m (7.1 kgf-m, 51.6 ft-lb)(Copper gasket)
4. Remove the rear exhaust pipe and muffler.
- Non-turbo model

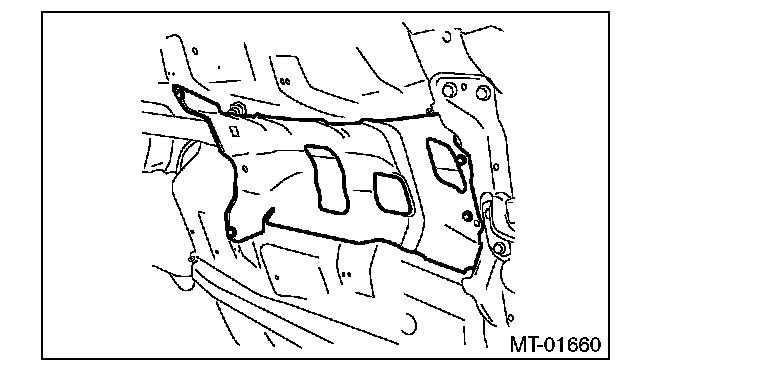

5. Remove the heat shield cover.
6. Remove the propeller shaft.

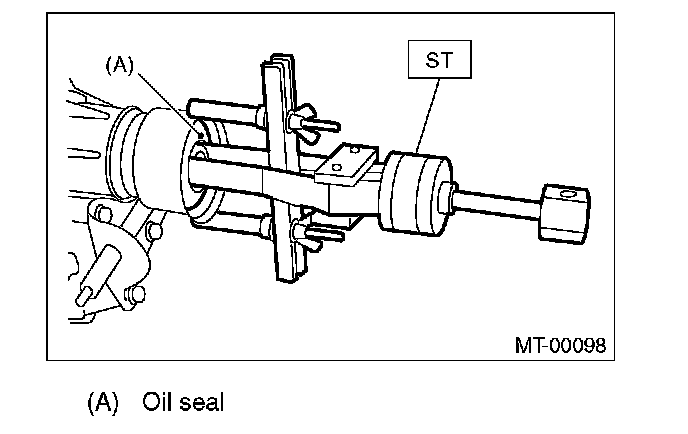

7. Remove the oil seal using ST.
ST 398527700 PULLER ASSY
8. Using the ST, install the oil seal.

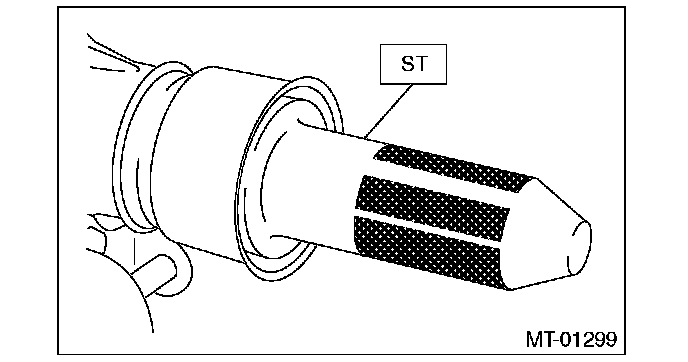

ST 498057300 INSTALLER
9. Install the propeller shaft.

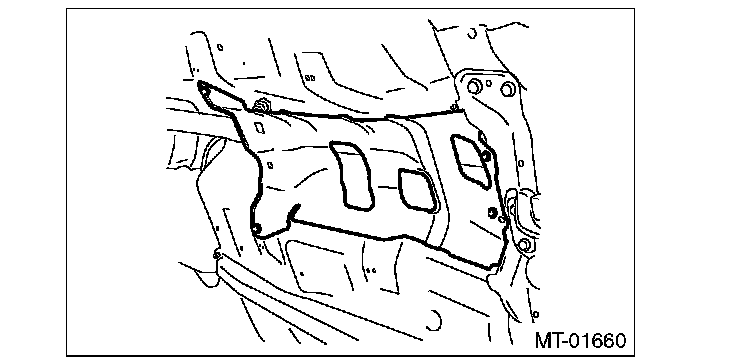

10. Install the heat shield cover.
11. Install the rear exhaust pipe and muffler.
- Non-turbo model
- Turbo model
12. Pour in the transmission gear oil and check the oil level.
