Air Injection Control Valve: Service and Repair
Secondary Air Combination ValveREMOVAL
1. SECONDARY AIR COMBINATION VALVE LH
1. Remove the collector cover.
2. Disconnect the ground cable from battery.

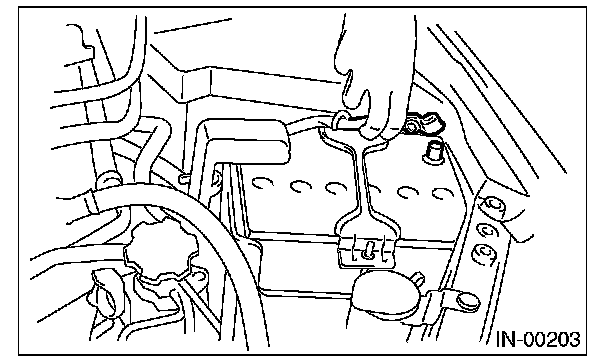

3. Remove the intercooler.

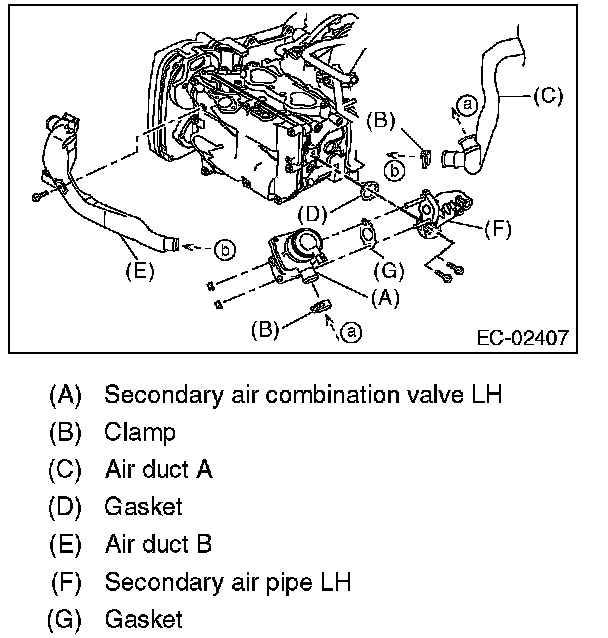

4. Disconnect the connector from the secondary air combination valve LH.
5. Disconnect the air duct A.
6. Remove the secondary air pipe LH.
7. Remove the secondary air combination valve LH.
2. SECONDARY AIR COMBINATION VALVE RH
1. Remove the collector cover.

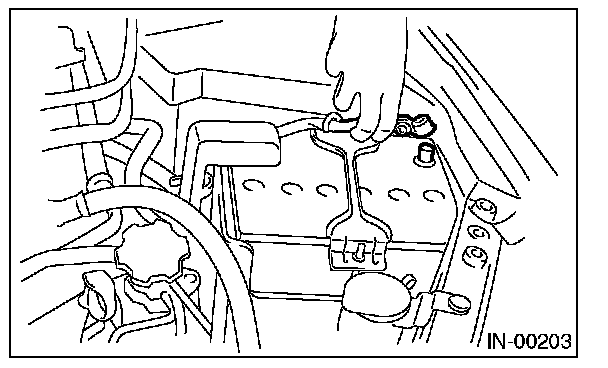

2. Disconnect the ground cable from battery.
3. Remove the intercooler.
4. Remove the intake manifold.
5. Disconnect the air duct A.

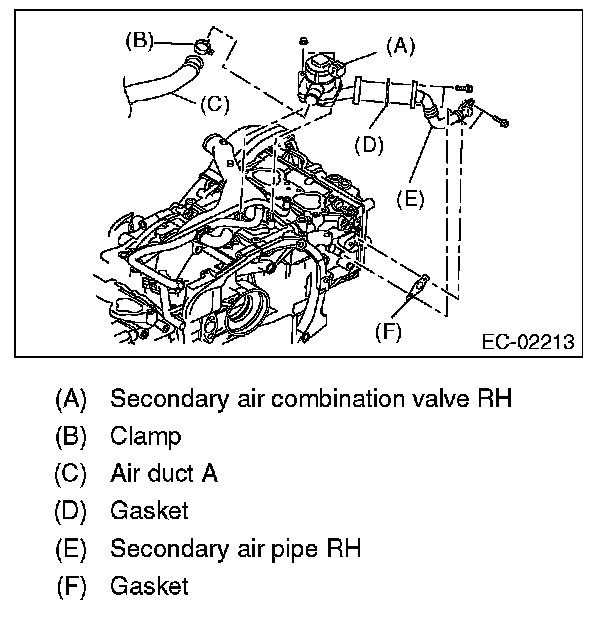

6. Remove the secondary air pipe RH.
7. Remove the secondary air combination valve RH.
INSTALLATION
1. SECONDARY AIR COMBINATION VALVE LH

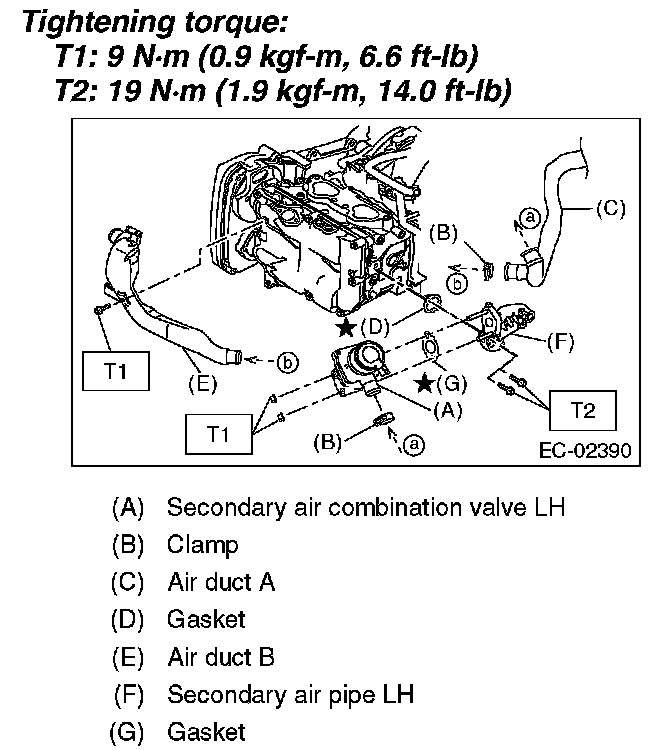

Install in the reverse order of removal.
NOTE: Use a new gasket.
2. SECONDARY AIR COMBINATION VALVE RH

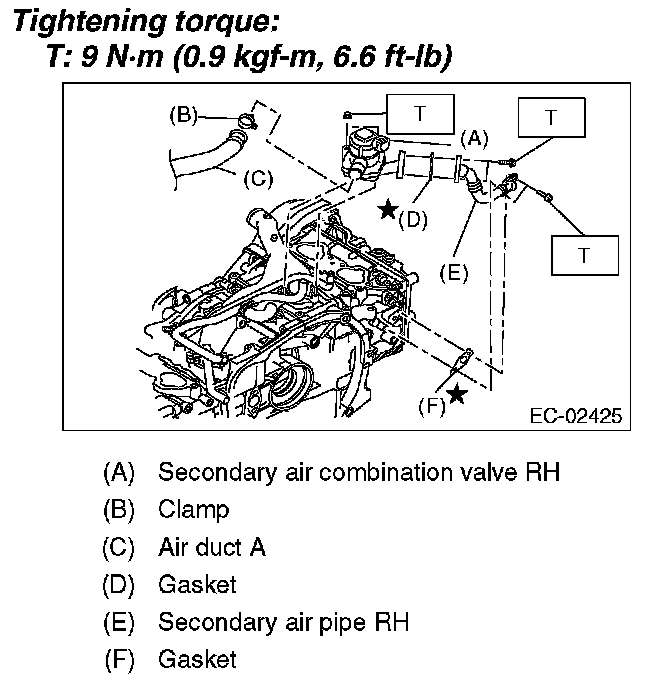

Install in the reverse order of removal.
NOTE: Use a new gasket.
