Rear Washer

Rear Washer

INSPECTION

- Make sure the nozzle and hose are not clogged.
- Make sure the hose is not bent.

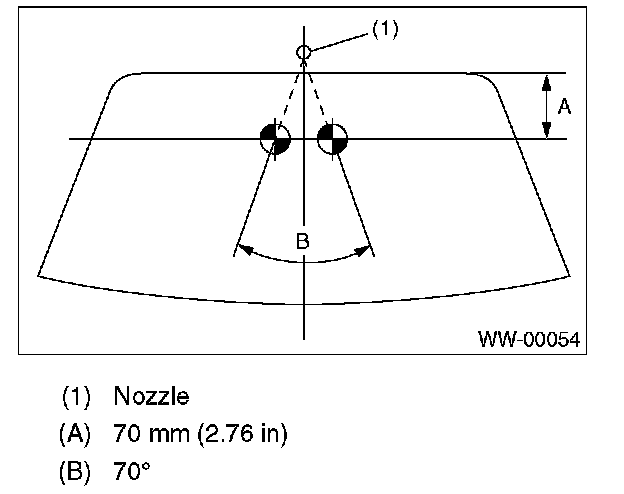

- While the vehicle is at a standstill, make sure that the washer injection position is as shown in the figure.

NOTE: Washer injection position can not be adjusted.
