Rear Washer

Rear Washer

REMOVAL

1. Remove the roof spoiler.
2. Remove the washer hose from washer nozzle.

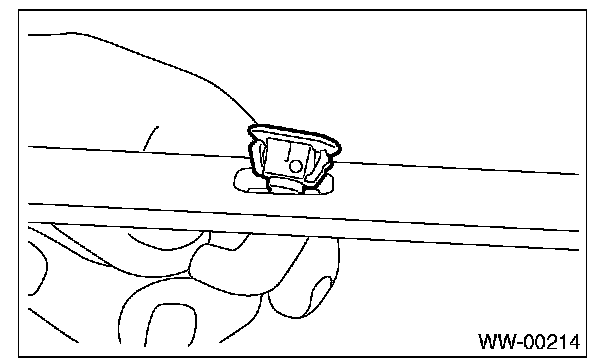

3. Push the claw of the nozzle from the reverse side of roof spoiler with a flat tip screwdriver or equivalent, and remove the washer nozzle.






INSTALLATION

Install in the reverse order of removal.
