Drivetrain - Rear Differential Drain/Fill Plug Revision
NUMBER: 03-59-08DATE: 11/24/08
APPLICABILITY:
2009MY and later Legacy, Equipped with VA1- Type Rear Differential
SUBJECT:
Modification of Rear Differential Cover, Filler and Drain Plug
Introduction
The purpose of this bulletin is to inform you that the style of the rear differential filler and drain plug has changed from a hexagon bolt to a hexagon socket bolt, along with the size of the holes in the rear differential cover. The torque specification has also changed.
Countermeasure in Production
The new style plugs were used in production starting in September, 2008 with VIN 9*219530 and 9*328540.

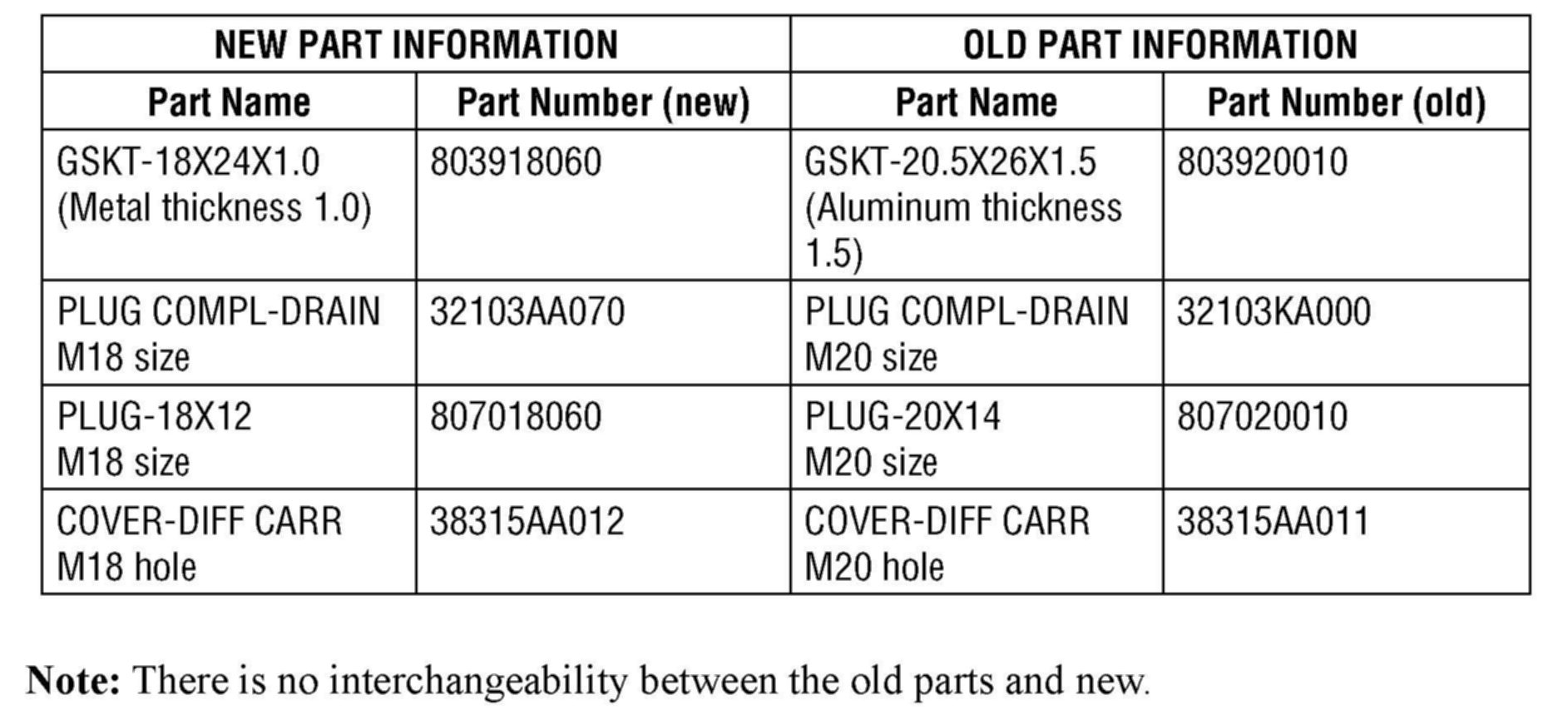

Part Information
REPAIR PROCEDURE/INFORMATION

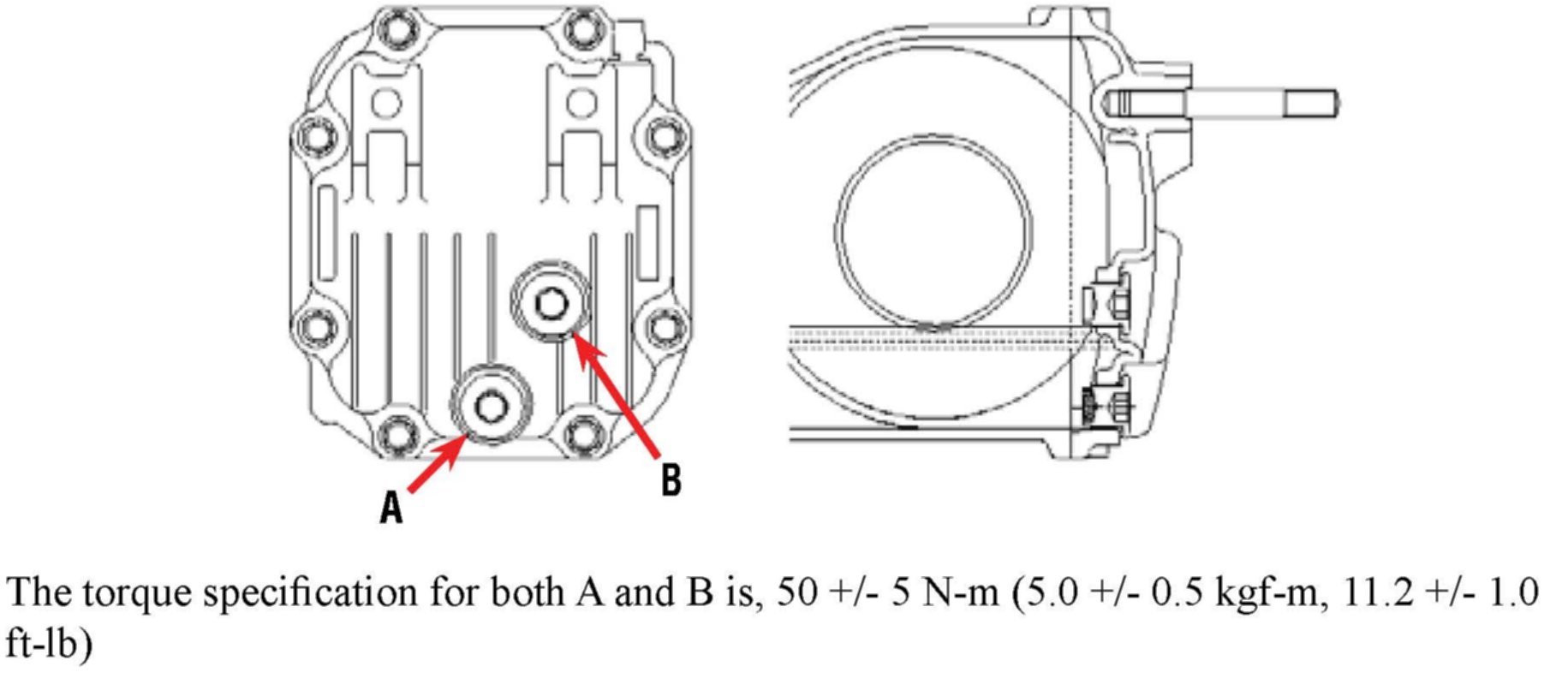

New Torque Specification
