Drive/Propeller Shafts, Bearings and Joints: Testing and Inspection

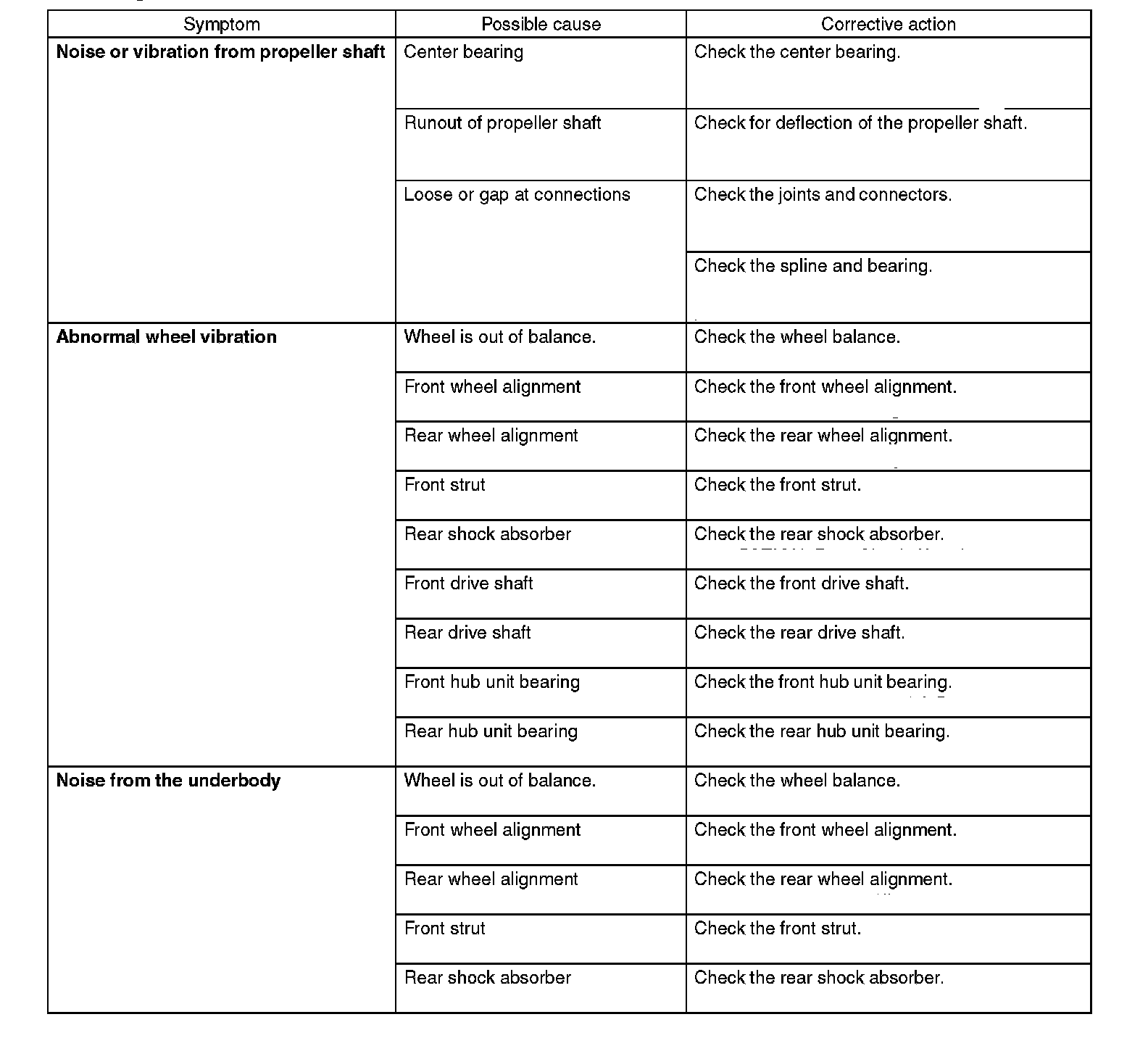

General Diagnostic Table
INSPECTION
NOTE:
Vibration while cruising may be caused by an unbalanced tire, improper tire inflation pressure, improper wheel alignment, etc.
