Front Axle Disassembly

Front Axle
DISASSEMBLY

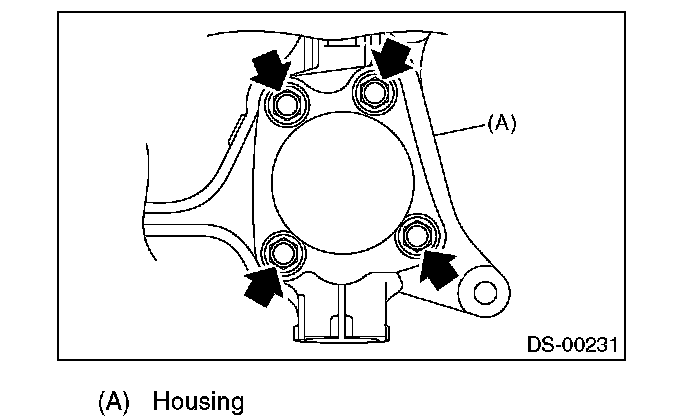

1. Remove the four bolts from the housing, and remove the front hub unit bearing and disc cover.





CAUTION:
- Do not get closer the tool which charged magnetism to magnetic encoder.
- Be careful not to damage the magnetic encoder.

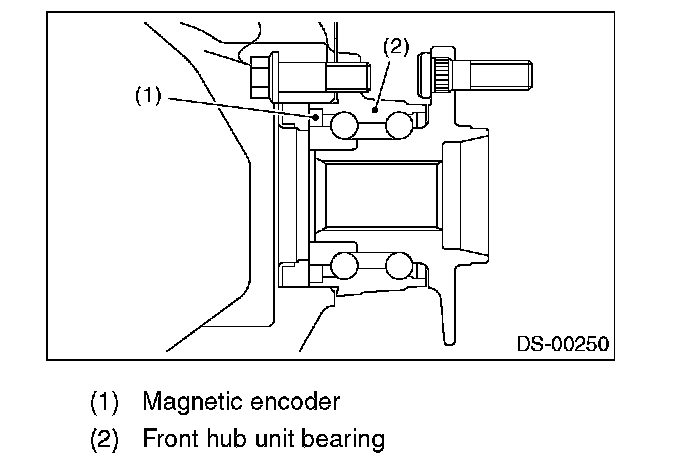

2. Disassemble the front hub unit bearing.
