Removal and Replacement

Select Cable
REMOVAL
1. Set the vehicle on a lift.
2. Shift the select lever to "N" range.
3. Disconnect the ground cable from the battery.
4. Lift up the vehicle.
5. Remove the front, center and rear exhaust pipes and the muffler. (Non-turbo model)
- SOHC model
- DOHC 3.0 L model
6. Remove the center and rear exhaust pipes and the muffler. (Turbo model)

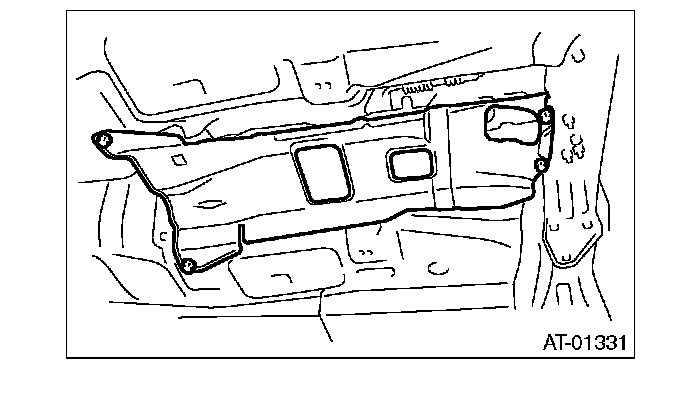

7. Remove the heat shield cover.

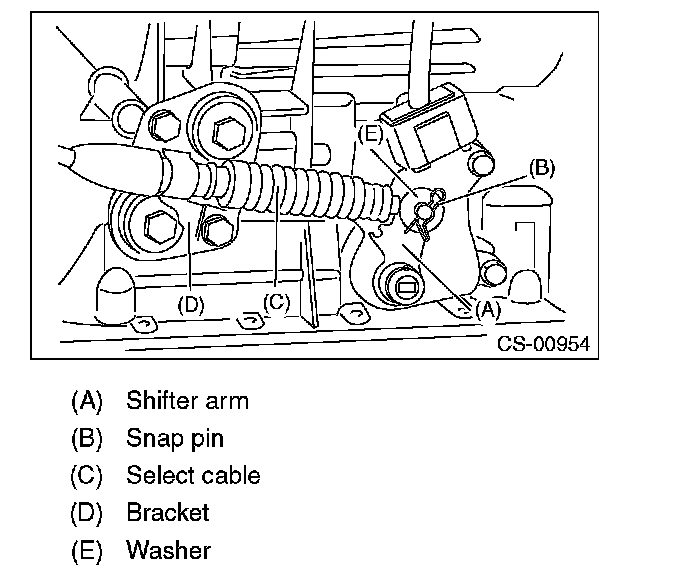

8. Remove the snap pin and washer from the shifter arm. (4AT model)

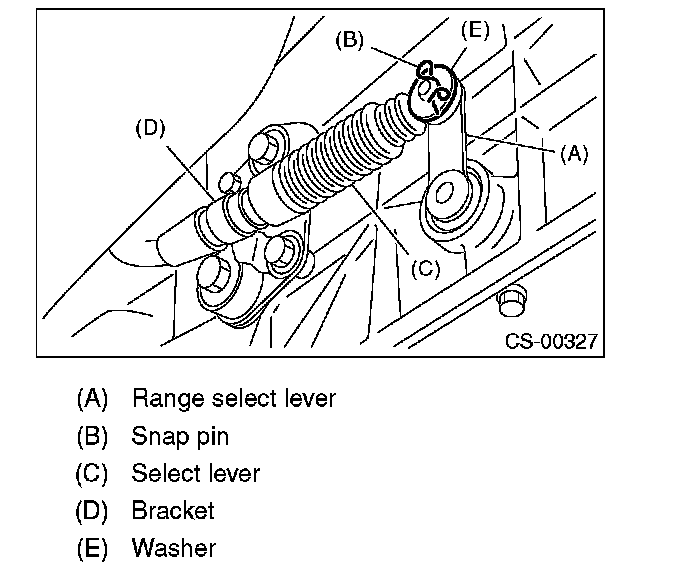

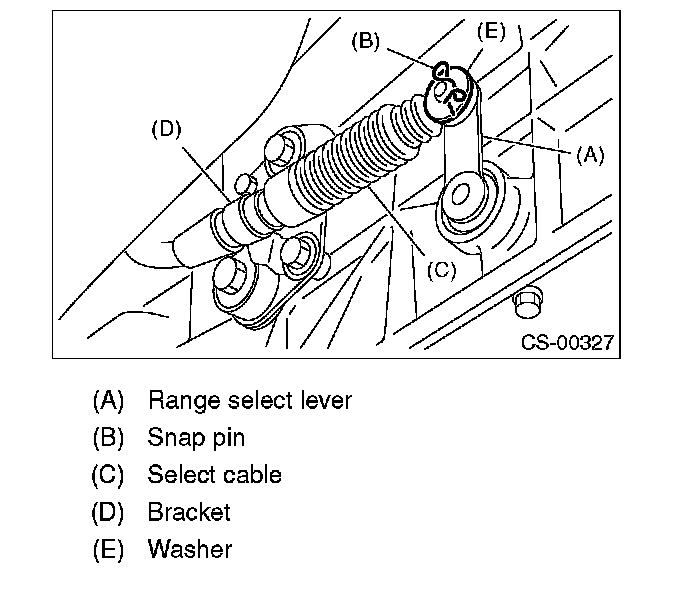

9. Remove the snap pin and washer from the range select lever. (5AT model)

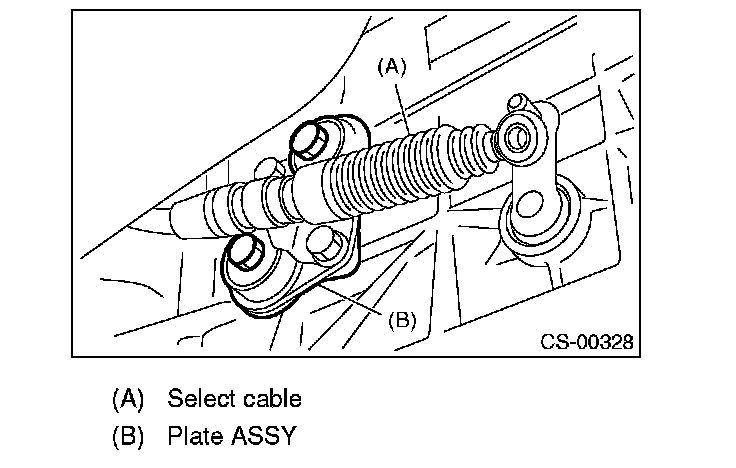

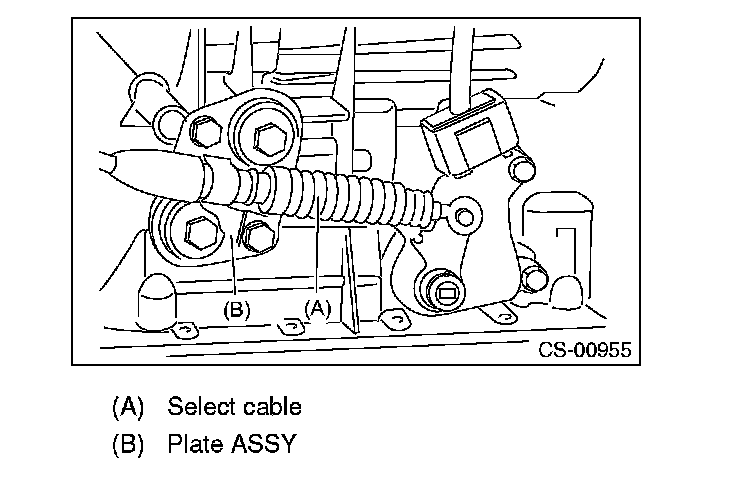

10. Remove the plate assembly from the transmission case.
- 4AT





- 5AT





11. Disconnect the cable from the arm assembly.

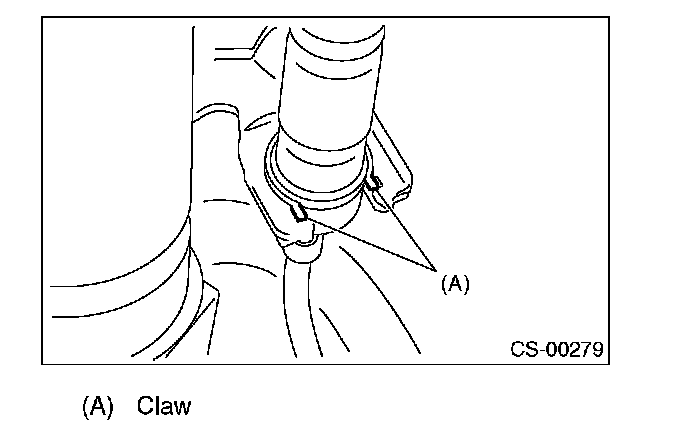

12. Raise the claw of clamp to remove the cable from bracket.

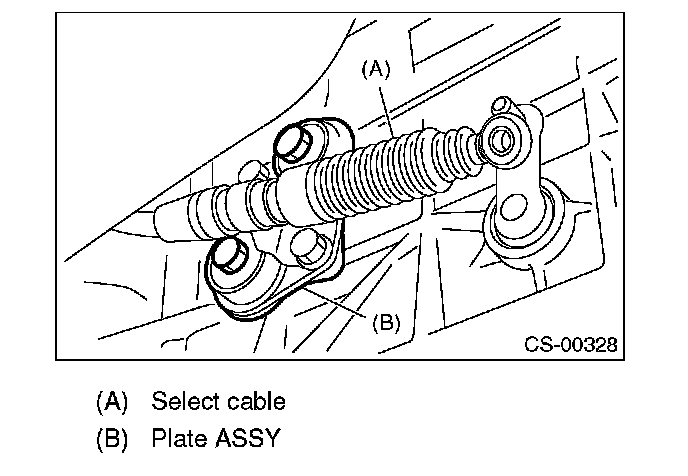

13. Remove the select cable from plate assembly.

INSTALLATION
1. Install the select cable to the plate assembly.
Tightening torque: 18 N-m (1.8 kgf-m, 13.3 ft-lb)





2. Install the select cable to the shifter arm. (4AT model)
3. Install the select cable to the range select lever. (5AT model)

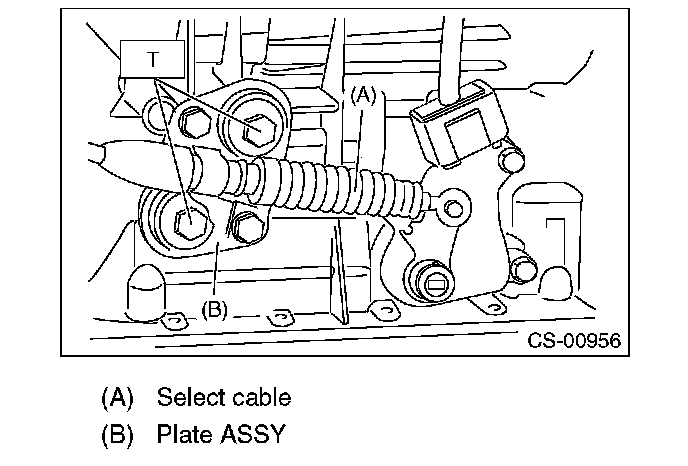

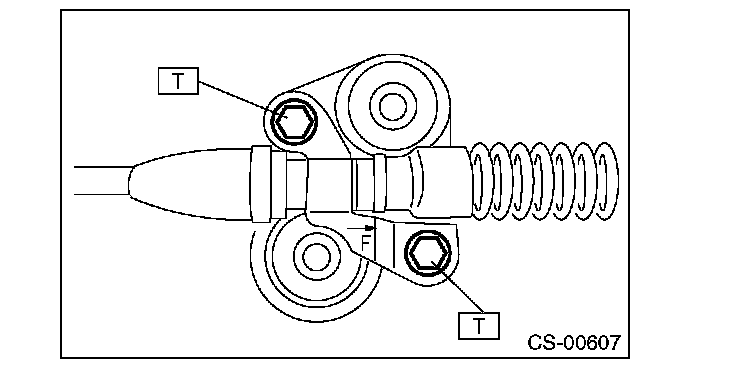

4. Install the plate assembly to the transmission.
Tightening torque:
To: 25 N-m (2.5 kgf-m, 18.4 ft-lb)
- 4AT





- 5AT





5. Install the washer and snap pin to the shifter arm. (4AT model)





6. Install the washer and snap pin to the range select lever. (5AT model)

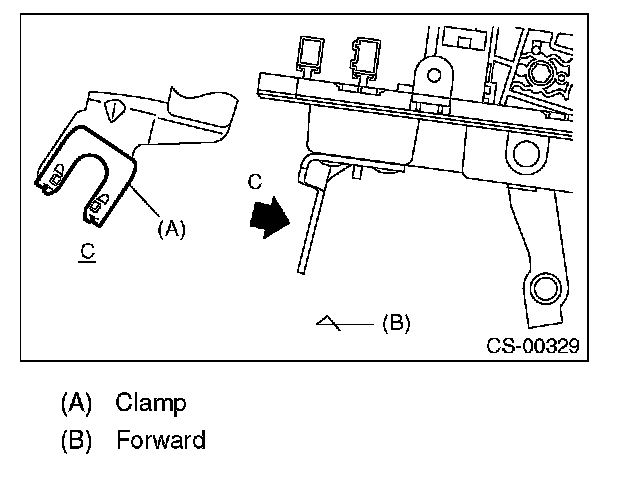

7. Install new clamp paying attention to the installing direction.

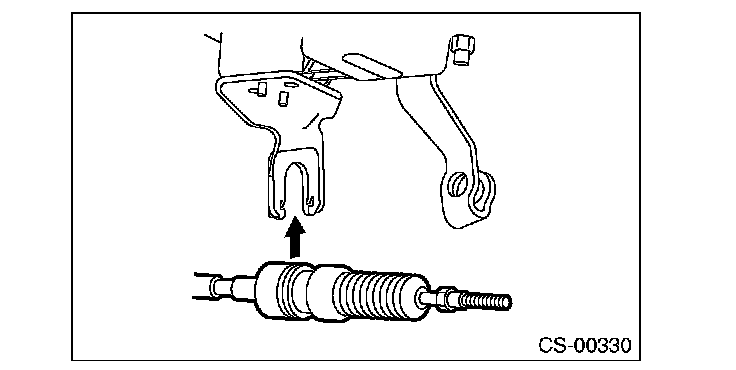

8. Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.





9. Shift the select lever to the "N" range, and then adjust the select cable position.

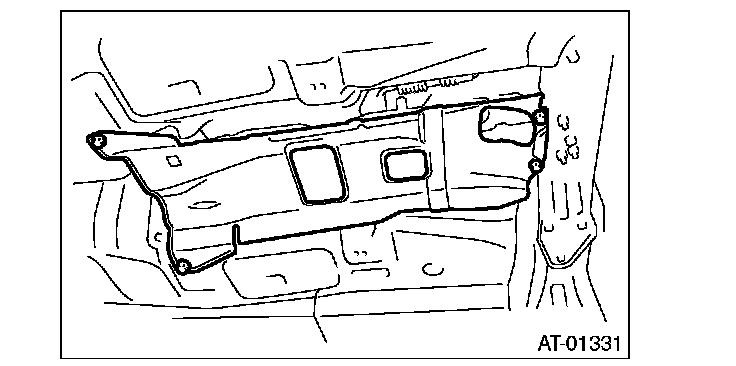

10. Install the heat shield cover.





11. Install the front, center and rear exhaust pipes, and the muffler. (Non-turbo model)
- SOHC model
- DOHC 3.0 L model
12. Install the center, rear exhaust pipes and the muffler. (Turbo model)
