Home >> Subaru >> 2009 >> Legacy F6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Specification

General Specification

General Description

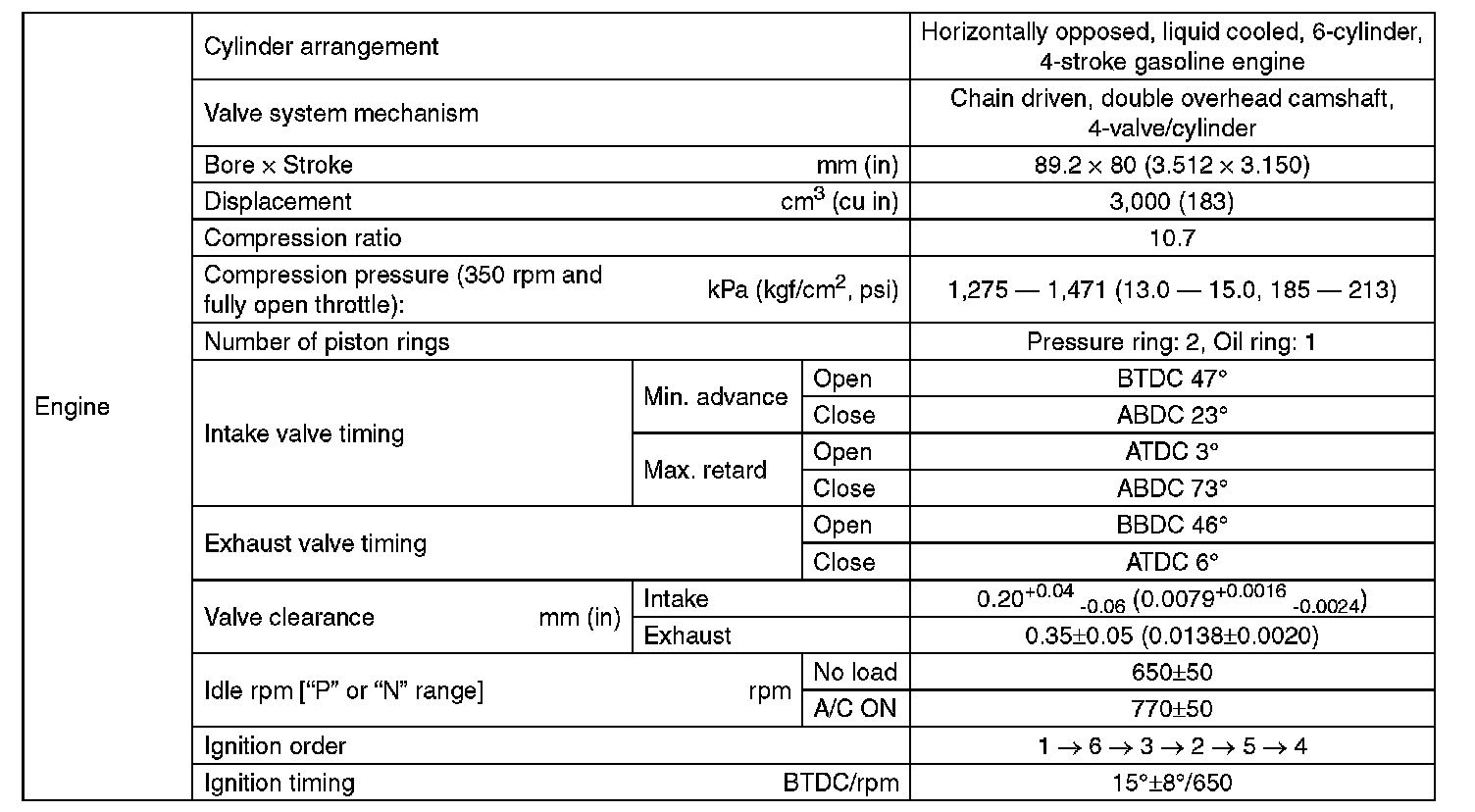

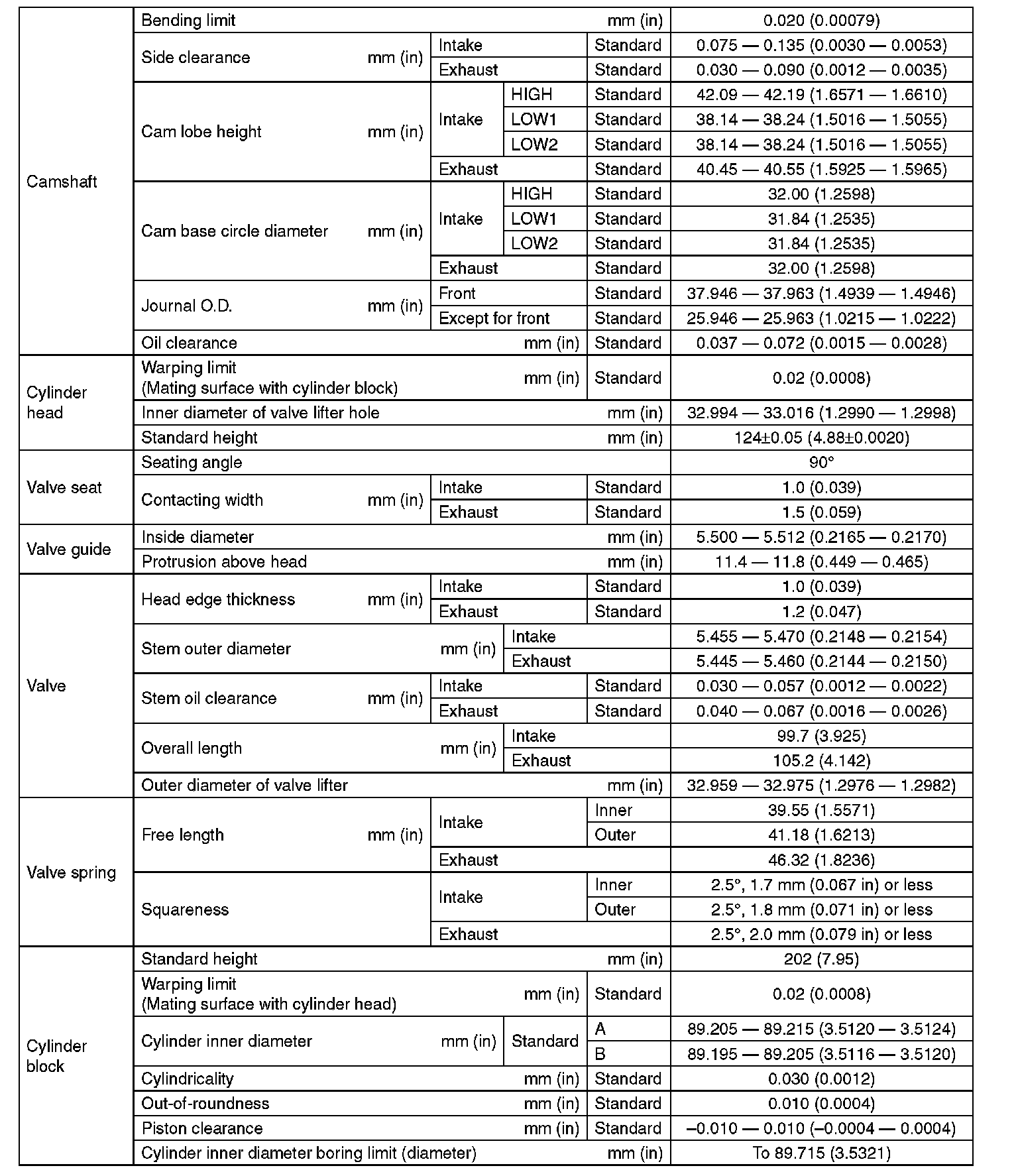

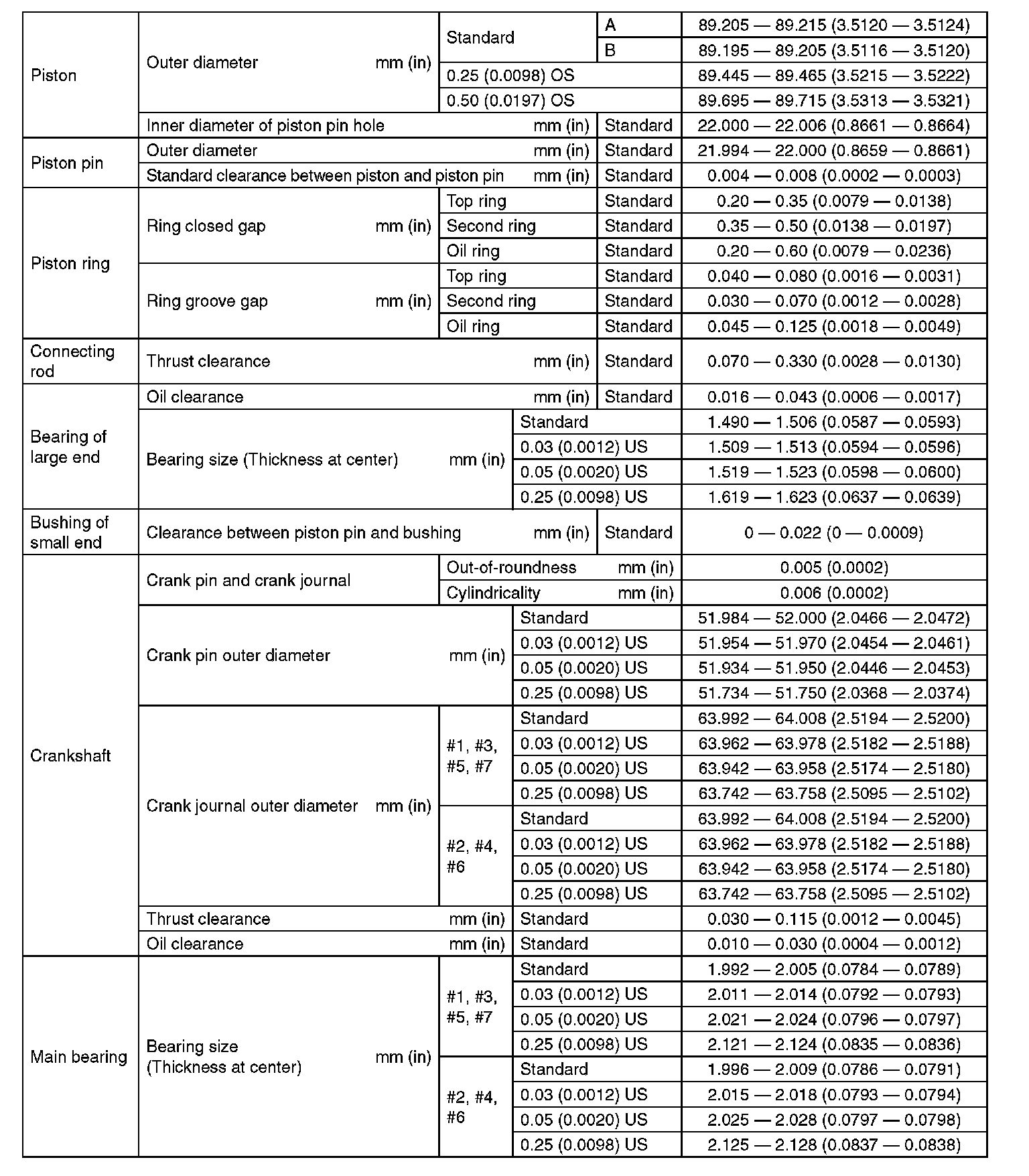

SPECIFICATION





NOTE:
OS: Oversize
US: Undersize
