Intake Air Plenum: Service and Repair

Air Intake Chamber

REMOVAL

1. Remove the collector cover.

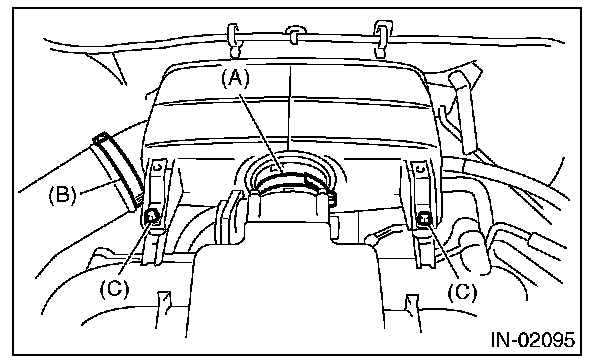

2. Loosen the clamp (A) which connects air intake chamber to throttle body.
3. Loosen the clamp (B) which connects intake boot to air intake chamber.
4. Remove the bolt (C) which secures air intake chamber to the stay.






5. Disconnect the blow-by hoses, then remove the air intake chamber.

INSTALLATION

Install in the reverse order of removal.
