Brake Lamp: Testing and Inspection

Stop Light System

INSPECTION

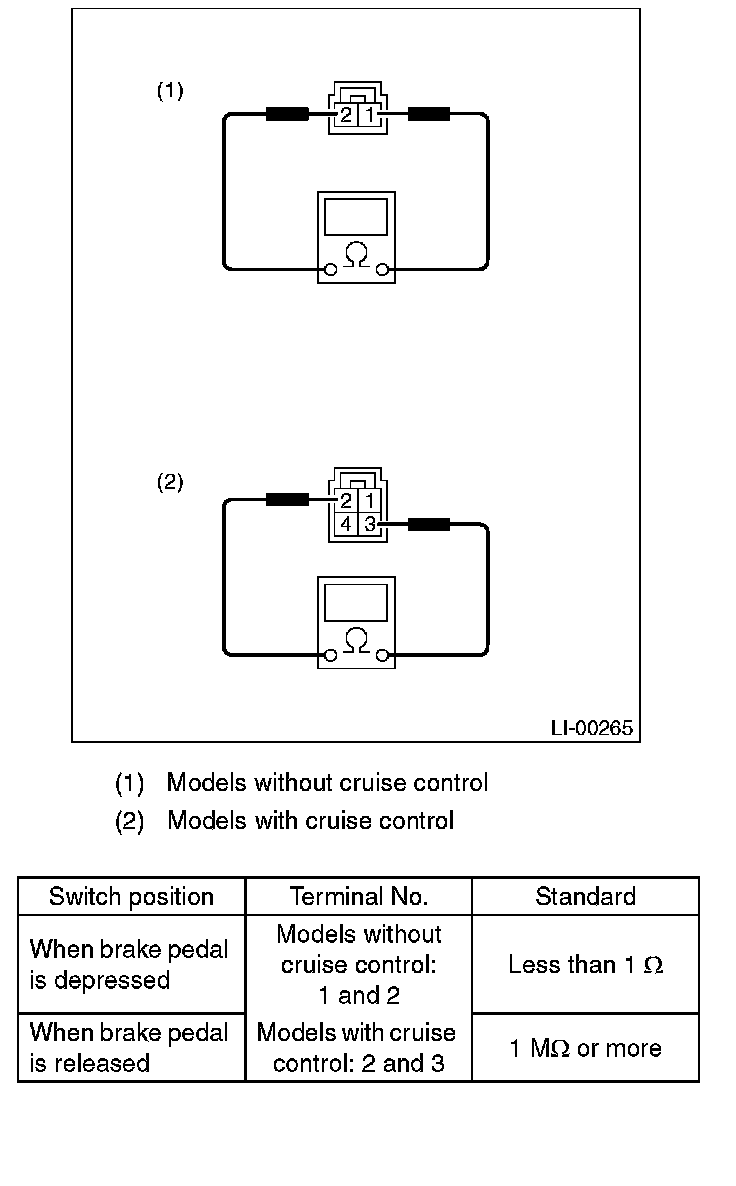

1. STOP LIGHT SWITCH
Measure the resistance between stop light switch terminals.
