Driver/Vehicle Information Display: Testing and Inspection

Multi-Information Display Selector

INSPECTION

1. Remove the airbag module from the steering wheel.

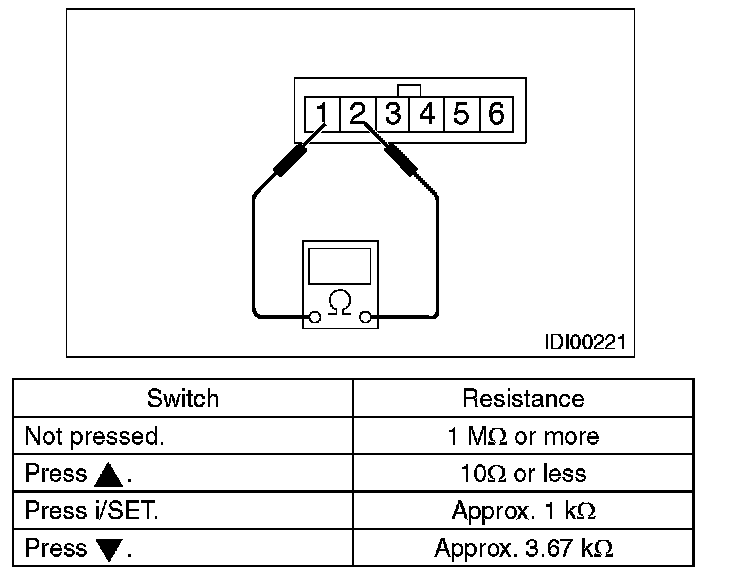

2. Connect tester as shown in the figure, and measure the resistance between the terminals when pressing each switch.






3. If resistance is out of specifications shown in the above table, a fault in switch is indicated. Replace the switch.
