Refrigerant Pressure With Manifold Gauge Set

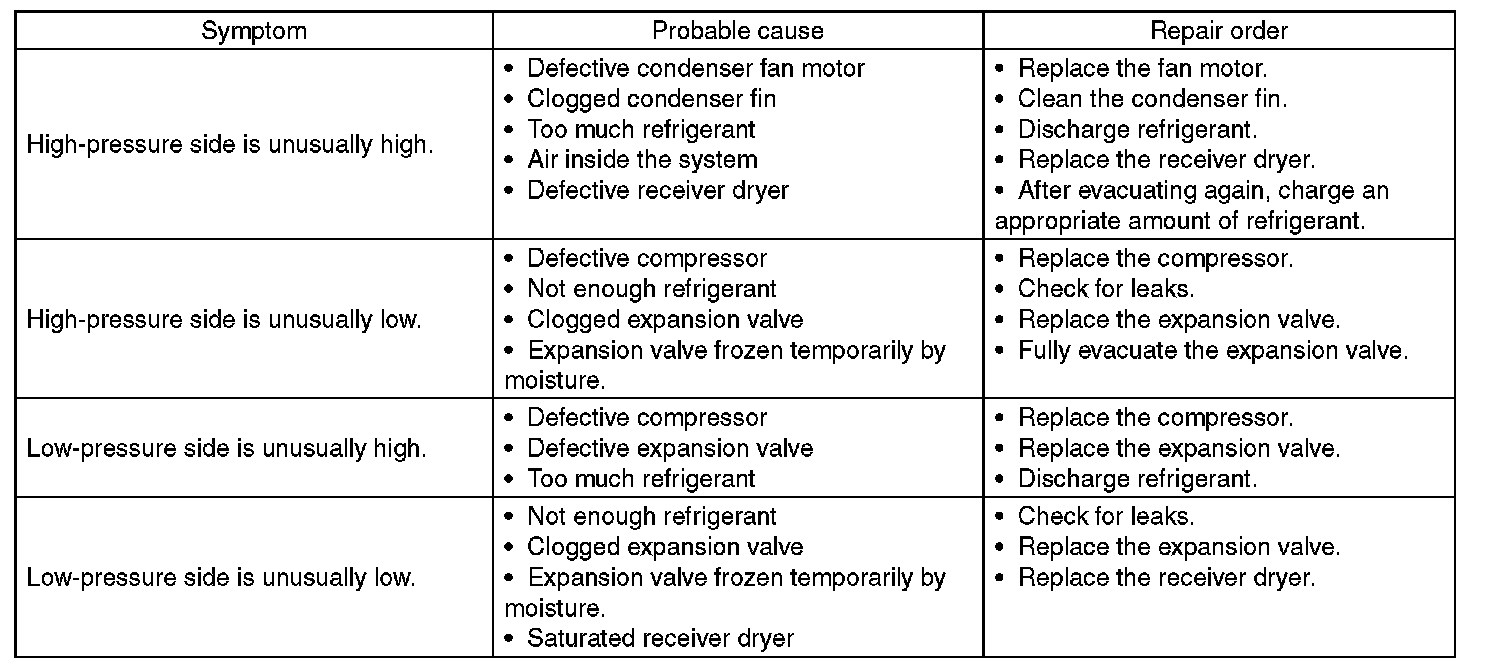

Refrigerant Pressure with Manifold Gauge Set

INSPECTION
