Blower Resistor (Manual A/C Model)

Blower Resistor (Manual A/C Model)

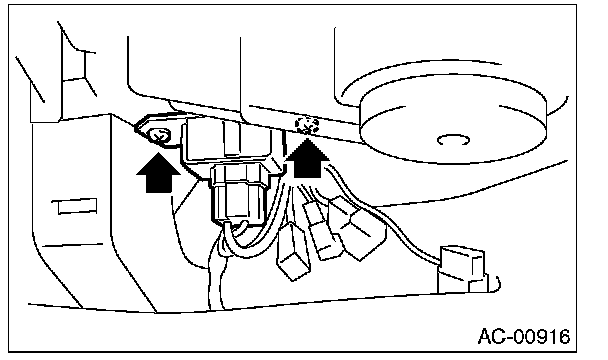

REMOVAL

1. Remove the glove box lower cover.
2. Disconnect the blower resistor connector.
3. Remove the two screws and remove the blower resistor.






INSTALLATION

Install in the reverse order of removal.
