Overhaul
Intake ManifoldDISASSEMBLY
1. Remove the engine harness from intake manifold.
2. Remove the throttle body.
3. Remove the EGR valve.
4. Remove the manifold absolute pressure sensor.
5. Remove the purge control solenoid valve.

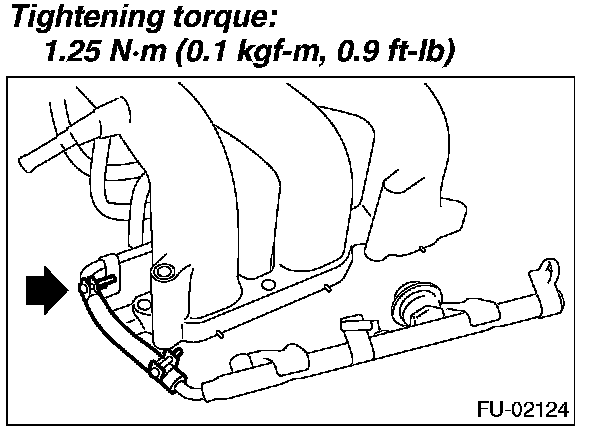

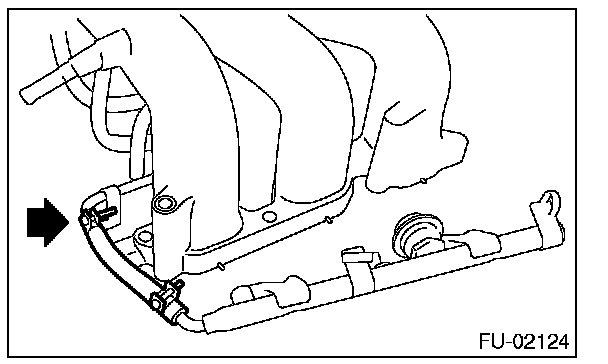

6. Loosen the clamp which holds fuel injector pipe to the fuel hose, and then disconnect the pipe from fuel hose.

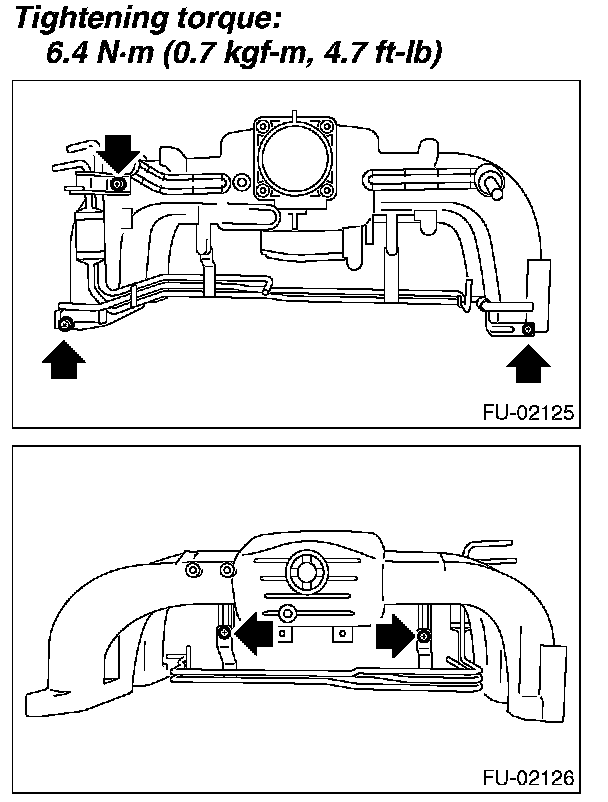

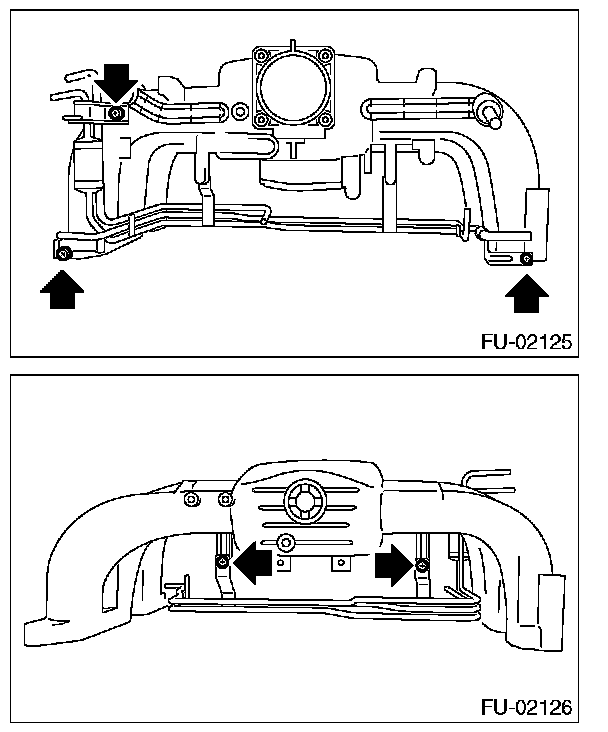

7. Remove the bolts which install fuel pipes on intake manifold.
ASSEMBLY
NOTE: When assembling the nipple, apply liquid gasket.
Liquid gasket: THREE BOND 1105 (Part No. 004403010) or equivalent
Tightening torque: 17 N.m (1.7 kgf.m, 12.5 ft.lb)
1. Tighten the bolts which install fuel pipes on intake manifold.
2. Connect the fuel injector pipe to fuel hose, and tighten the clamp screw.
3. Install the purge control solenoid valve.
4. Install the manifold absolute pressure sensor.
5. Install the EGR valve.
6. Install the throttle body to the intake manifold.
7. Install the engine harness to the intake manifold.
