Legacy F6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>

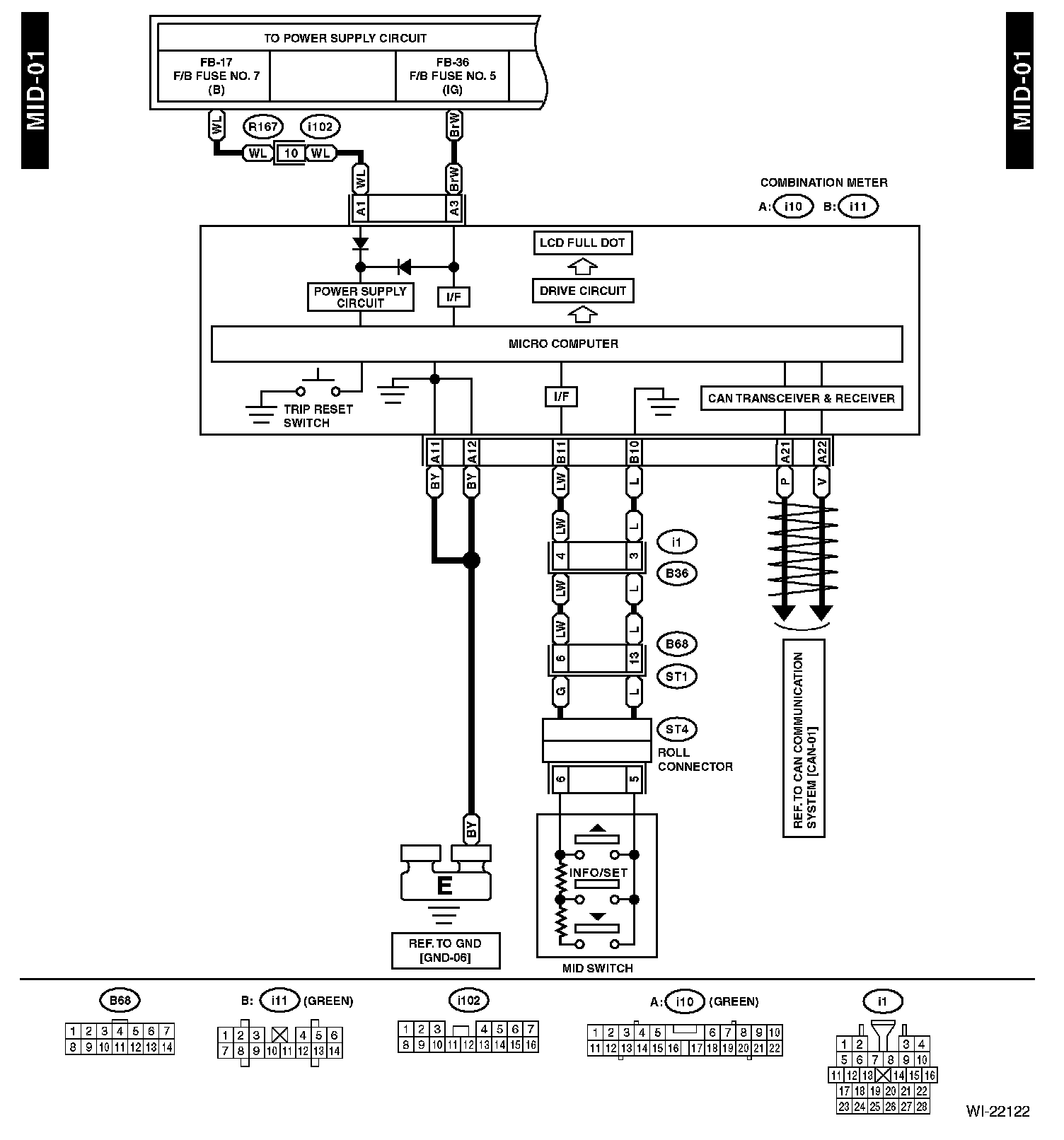

MID-01
MID-01
MID-01:
