ABS Warning Light Does Not Come on

ABS WARNING LIGHT DOES NOT COME ON
DETECTING CONDITION:
^ Defective combination meter
^ Defective harness
TROUBLE SYMPTOM: When the ignition switch is turned to ON (engine OFF), ABS warning light does not illuminate.

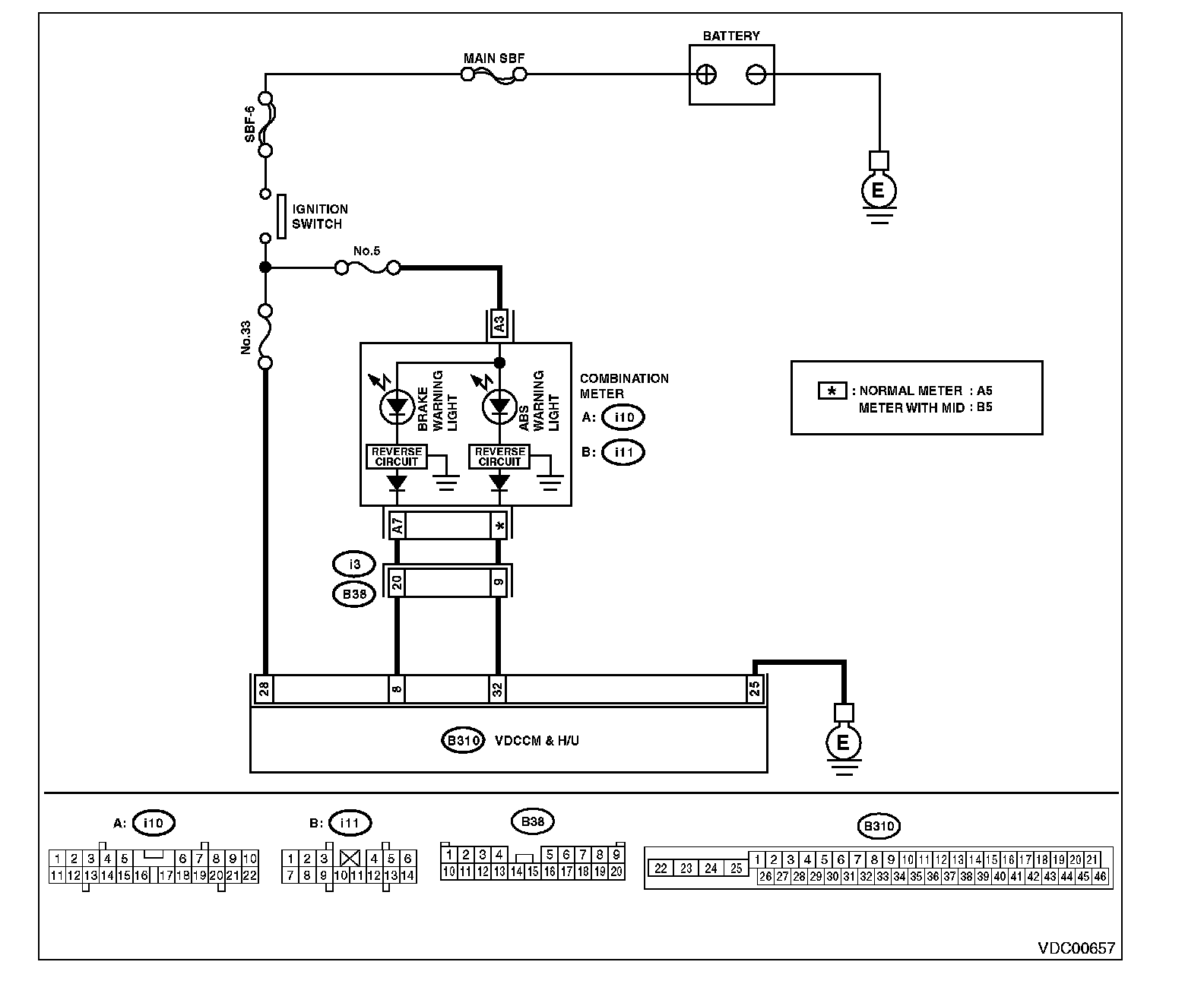

WIRING DIAGRAM:

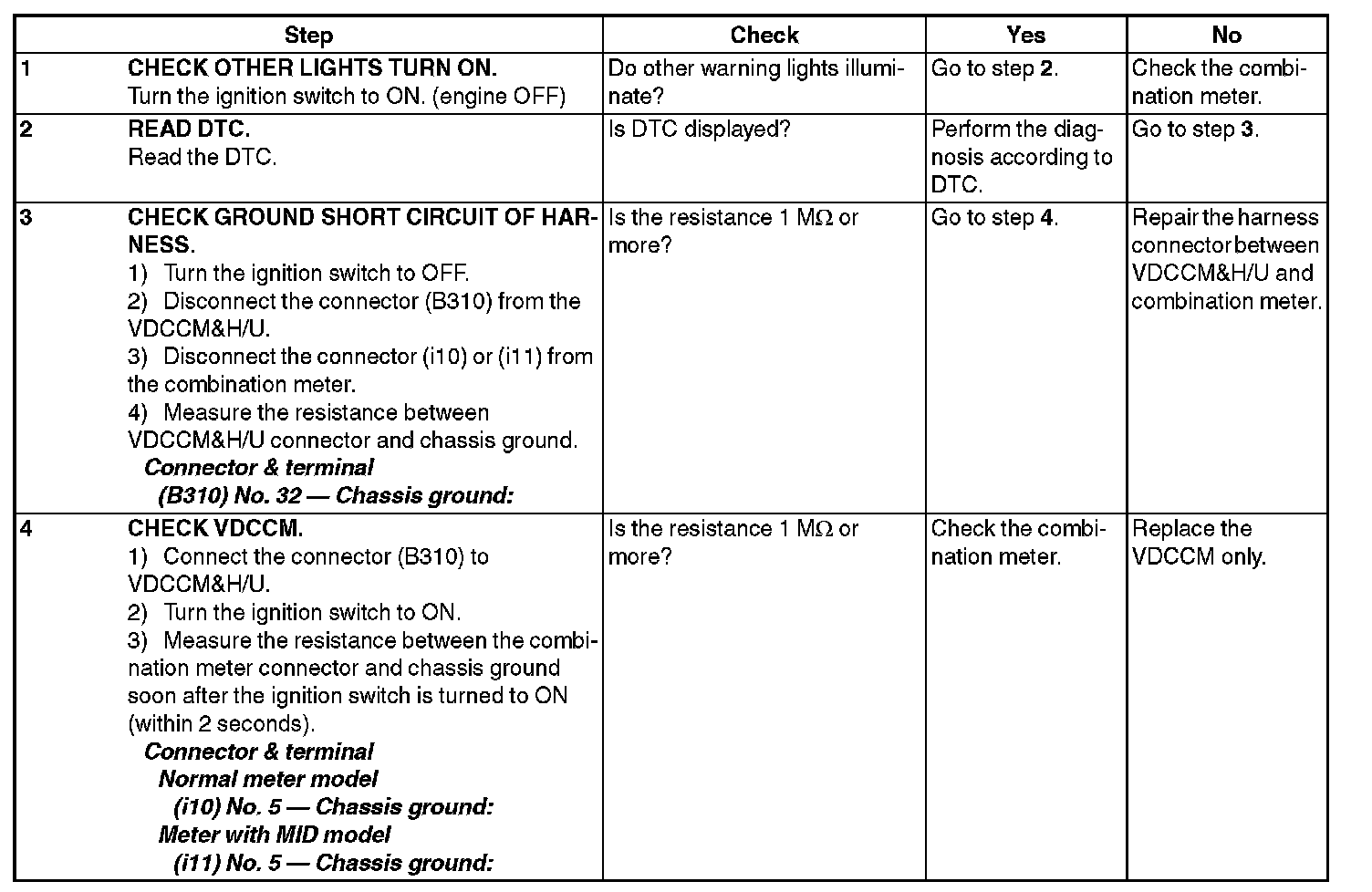

Step 1-Step 4:
