Floor MAT
FLOOR MATREMOVAL
1. Remove the front seats.
2. Remove the rear seat cushion. [Ref. to REMOVAL, Rear Seat.]
3. Remove the console box.
4. Remove the console side panel. [Ref. to REMOVAL, Center Console.]
5. Remove the lower inner trim.

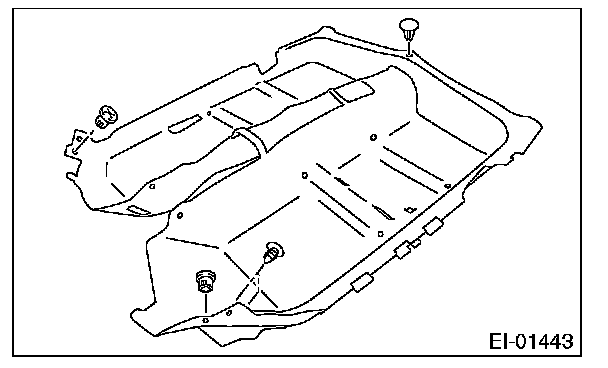

6. Remove the clips from the floor mat.
7. Remove the mat hook on both sides.
8. Remove the mat from toe board area.
9. Remove the mat from rear heater duct.
10. Roll the mat, and then take it out of opened rear door.
INSTALLATION
Install in the reverse order of removal.
NOTE:
- Secure the mat firmly with hook and clip.
- Insert the mat edge firmly into the groove of side sill cover.
